E3Z-G

Grooved-type Photoelectric Sensor with Built-in Amplifier

E3Z-G

Photoelectric Sensor with Grooved Design and Easy Settings

(Unit: mm)

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

E3Z-G61
E3Z-G62
E3Z-G81
E3Z-G82

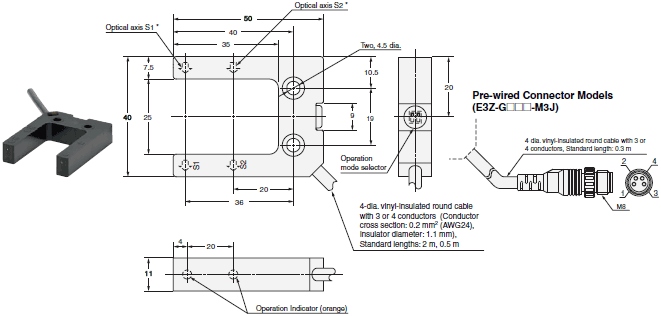

E3Z-G Dimensions 3

* On the other side
Note: E3G-61/G81: 1-axis models (S1)
         E3G-62/G82: 2-axis models (S1, S2)
*S1 output: Black
*S2 output: White
