E5GN

Basic-type Digital Temperature Controller (48 x 24 mm)

E5GN

New 48 x 24-mm Basic Temperature Controller with Enhanced Functions and Performance. Improved Indication Accuracy and Preventive Maintenance Function.

E5GN
Models with Screw Terminal Blocks

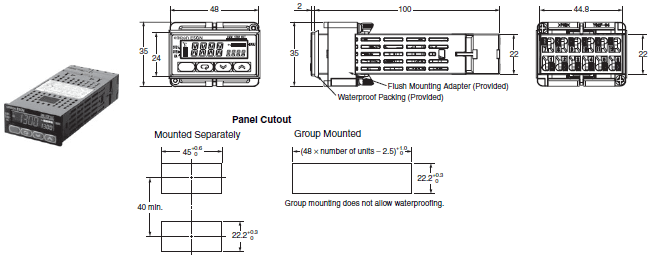

E5GN Dimensions 1

• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
    operating temperature specified in the specifications.
• The terminal screw for auxiliary output 2 cannot be tightened while Controllers are group mounted.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.

E5GN-[]-C
Models with Screwless Clamp Terminal Blocks

E5GN Dimensions 2

• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable
    operating temperature specified in the specifications.
• The E58-CIFQ1 cannot be connected when the Temperature Controllers are group mounted.

Accessories (Order Separately)

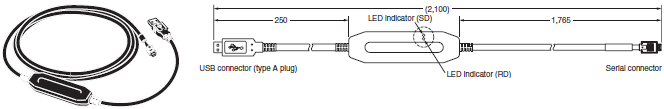

USB-Serial Conversion Cable
E58-CIFQ1

E5GN Dimensions 4

Waterproof Packing
Y92S-32 (for DIN 48 × 24)

E5GN Dimensions 5

Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider one year a rough standard. OMRON shall not be liable for the level of water resistance if the customer does not perform periodic replacement.)
The Waterproof Packing does not need to be attached if a waterproof structure is not required.

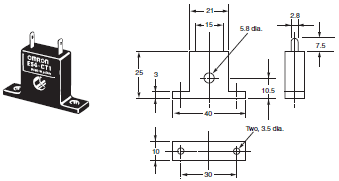

Current Transformers

E54-CT1

E5GN Dimensions 7

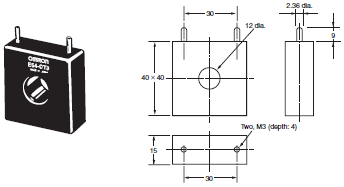

E54-CT3

E5GN Dimensions 8

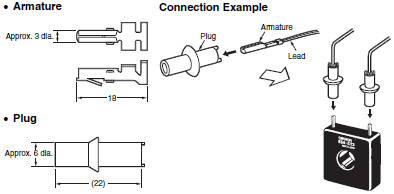

E54-CT3 Accessory

E5GN Dimensions 9

E54-CT1
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E5GN Dimensions 10

Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω

E54-CT3
Thru-current (Io) vs. Output Voltage (Eo) (Reference Values)

E5GN Dimensions 11

Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for the Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
