H3RN
Solid-state Timer
Ultra-slim Timer for G2R Relay Socket
Related Contents
Application Solutions
last update: May 24, 2021
(Unit: mm)
Timers

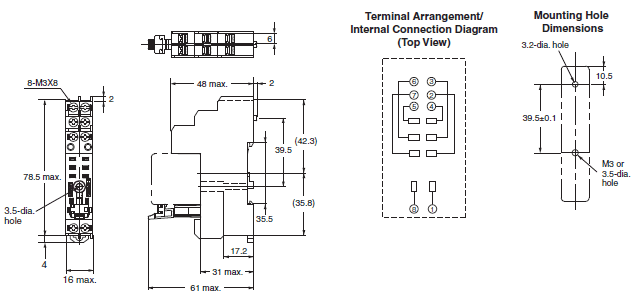

H3RN-1/H3RN-11 Front Mounting

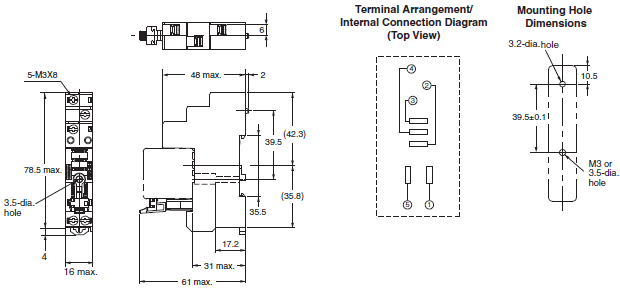

H3RN-2/H3RN-21 Front Mounting
Mounting Height
Use the P2RFZ-[]-E or P2R-[]7P to mount the H3RN. When ordering any one of these sockets,replace "[]" with "05" for SPDT or "08" for DPST-NO.
The P2RF-[] cannot be used because the hook is a different shape.
Connecting Socket
Front connecting socket
P2RFZ-05-E
P2RFZ-08-E

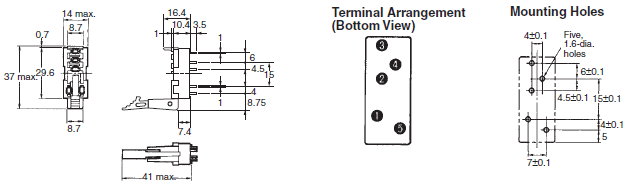

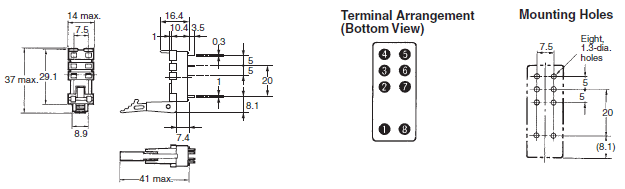

Back connecting socket
P2R-057P (1-pole)
P2R-087P (2-pole)
P2RFZ-[]-E
P2R-[]7P
