CRT1-VAD04[][] / VDA02[][]
Analog I/O Slave Units with MIL Connectors/e-CON Connectors
![CRT1-VAD04[][] / VDA02[][]](/Images/l_2042-27-118614-198x198.jpg)
Analog Slave Units with the Industry's Narrowest Width Help Save Space in Equipment and Panels
Related Contents
last update: November 12, 2012
(Unit: mm)

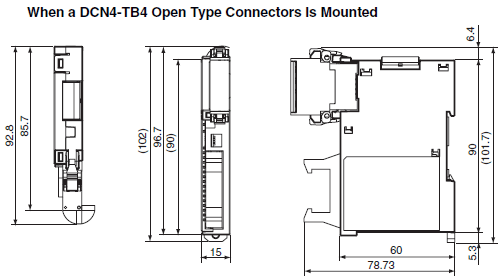

Four-point Analog Input Unit (with MIL Connectors)
CRT1-VAD04ML
![CRT1-VAD04[][] / VDA02[][] Dimensions 1](/Images/2042_dm_127-108858.gif)
Note: The numbers inside the parentheses are reference dimensions.

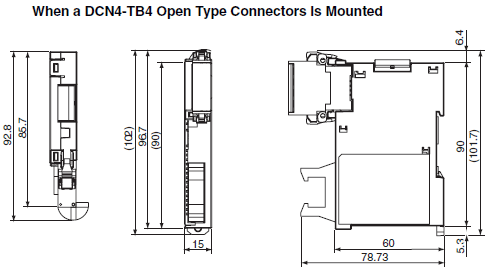

Two-point Analog Output Unit (with MIL Connectors)
CRT1-VDA02ML
![CRT1-VAD04[][] / VDA02[][] Dimensions 2](/Images/2042_dm_227-108859.gif)
Note: The numbers inside the parentheses are reference dimensions.

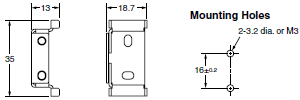

Mounting Bracket
CRT1-ATT01
![CRT1-VAD04[][] / VDA02[][] Dimensions 3](/Images/2042_dm_327-108861.gif)

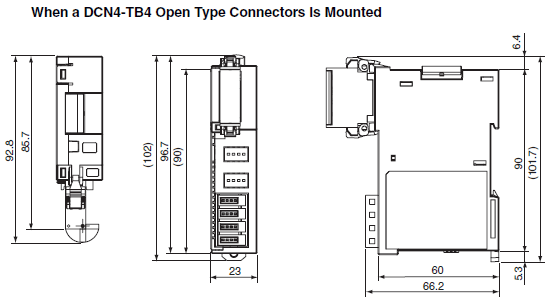

Four-point Analog Input Unit (with e-CON Connectors)
CRT1-VAD04S
![CRT1-VAD04[][] / VDA02[][] Dimensions 4](/Images/2042_dm_427-108863.gif)
Note: The numbers inside the parentheses are reference dimensions.

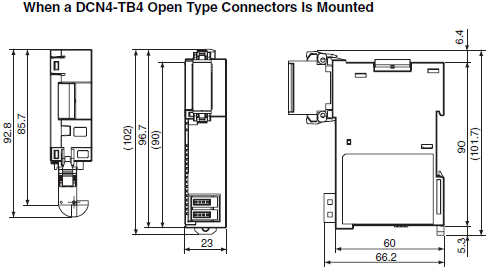

Two-point Analog Output Unit (with e-CON Connectors)
CRT1-VDA02S
![CRT1-VAD04[][] / VDA02[][] Dimensions 5](/Images/2042_dm_527-108864.gif)
Note: The numbers inside the parentheses are reference dimensions.

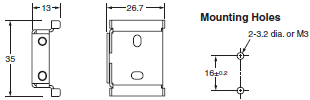

Mounting Bracket
CRT1-ATT02
![CRT1-VAD04[][] / VDA02[][] Dimensions 6](/Images/2042_dm_627-108866.gif)
