D4SL-N, D4SL-NSK10-LK[]

Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key

Varied lineup of Guard Lock Safety-door Switches

last update: December 2, 2024

(Unit: mm)

Switches

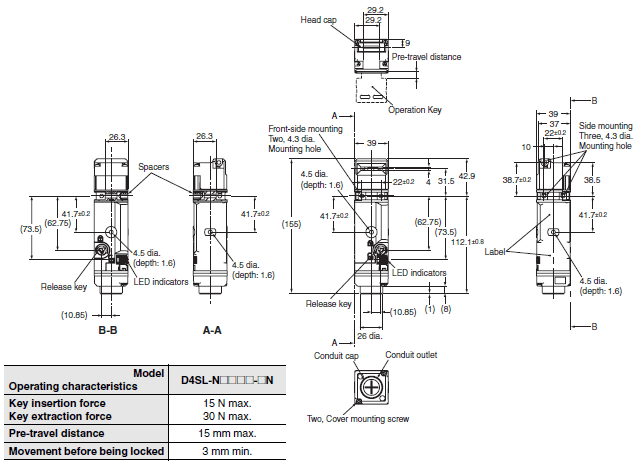

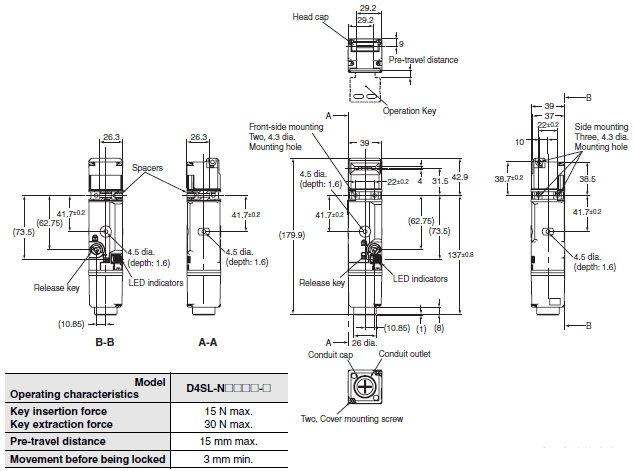

D4SL-N[][][][]-[]N (Connector Type)

* You can insert and secure a stud or other projection in the 4.5-dia. hole to make the installation even stronger.
For details, refer to “Switch and Operation Key Mounting” on Catalog

D4SL-N[][][][]-[] (Terminal Block Type)

* You can insert and secure a stud or other projection in the 4.5-dia. hole to make the installation even stronger.
For details, refer to “Switch and Operation Key Mounting” on Catalog

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Operation key

D4SL-NK1

D4SL-NK1S

D4SL-NK1G

D4SL-NK2

D4SL-NK2G

D4SL-NK3

D4SL-NK5

Note:Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.

Connector Cables

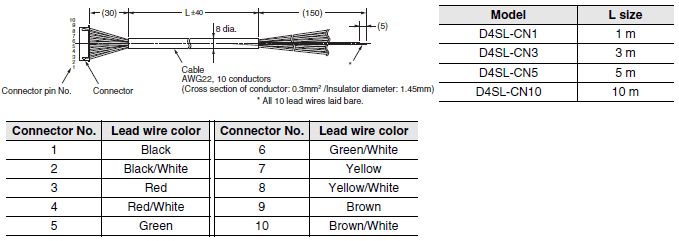

D4SL-CN[]

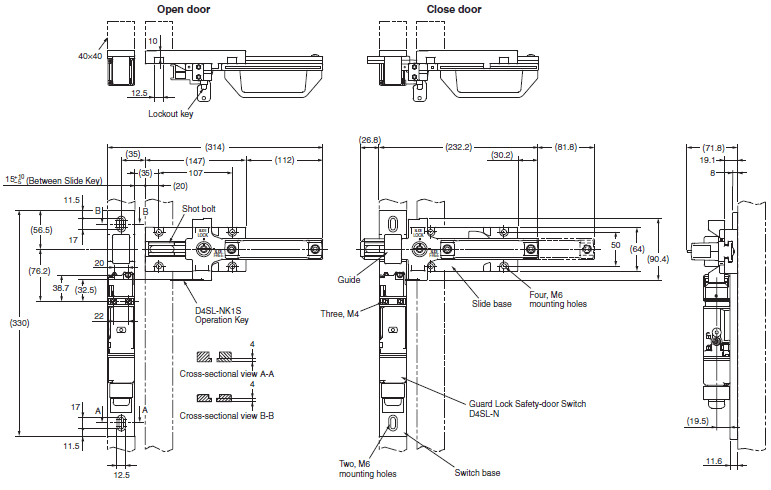

Slide Key

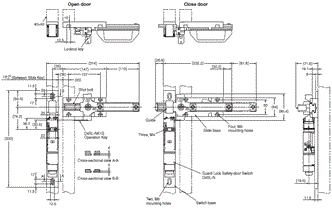

D4SL-NSK10-LK

D4SL-NSK10-LKH

Accessory

M20-to-1/2-14NPT conversion adapter for D4SL-N3[][][]-[]

With Operation Key Inserted

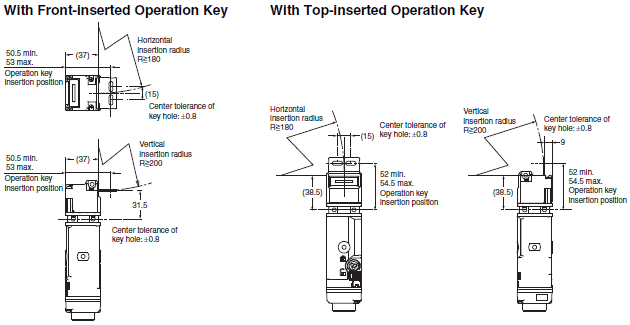

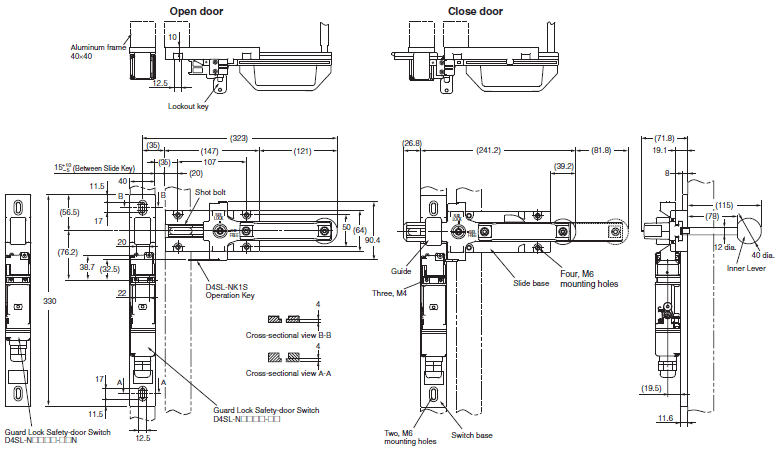

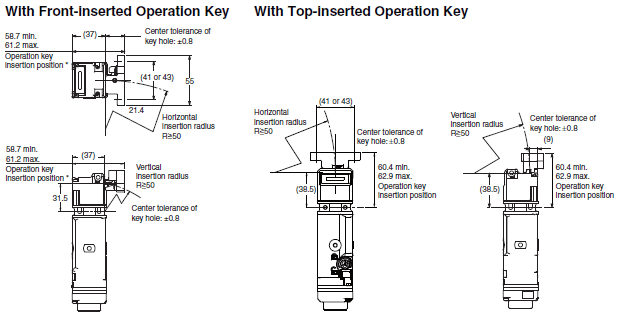

D4SL-N + D4SL-NK1

* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top
Head surface.

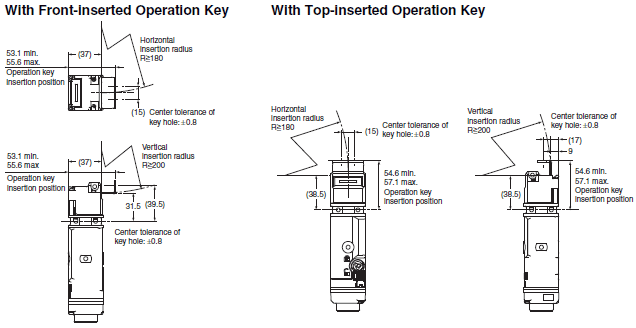

D4SL-N + D4SL-NK1S

D4SL-N + D4SL-NK1G

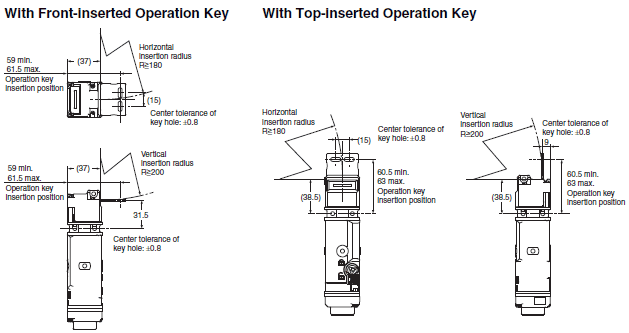

D4SL-N + D4SL-NK2

* Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top
Head surface.

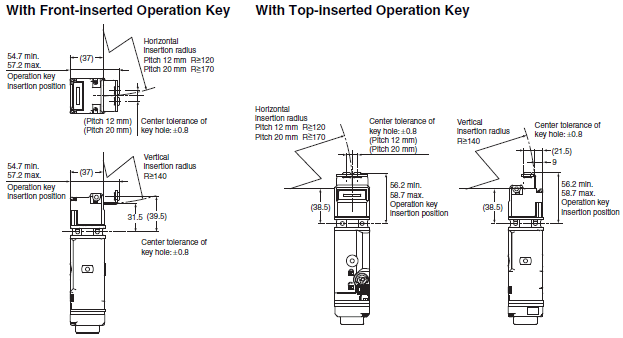

D4SL-N + D4SL-NK2G

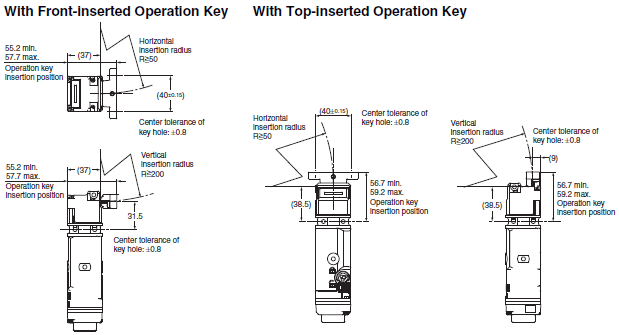

D4SL-N + D4SL-NK3

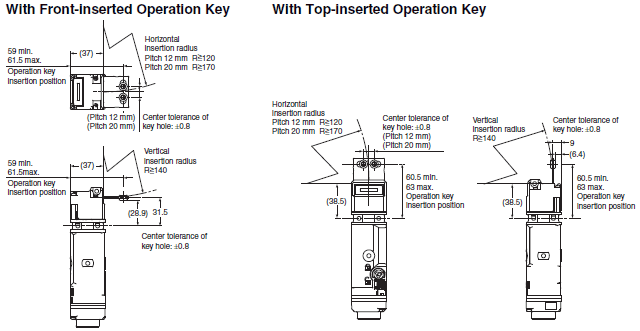

D4SL-N + D4SL-NK5

*1. Insertion radii apply when the rotational center of the Operation Key is in line with a line extending from the front or top
Head surface.
*2. If you use the D4SL-NK5 turned over, the operation key insertion position is 60.3 min. and 61.2 max.
