Industrial Automation

XW2R (PLCs)

Connector-Terminal Block Conversion Units for PLCs

XW2R (PLCs)

Connector-Terminal Block Conversion Units Designed Specifically to Connect PLCs

last update: April 1, 2024

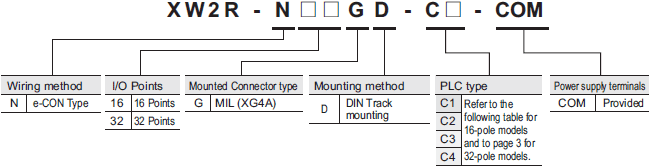

Models for Connection to OMRON PLCs

with power supply terminals

Model List

Models for OMRON PLCs

Models with 16 Poles

I/O	I/O Points	I/O Unit Model	Models that connect to PLCs	Connecting cables *
Input	32	CJ1W-ID231	XW2R-N16GD-C1-COM: 2 pcs	XW2Z-[][][]D: 1 Cable
	32	CS1W-ID231	XW2R-N16GD-C1-COM: 2 pcs	XW2Z-[][][]D: 1 Cable
	64	CJ1W-ID261	XW2R-N16GD-C1-COM: 4 pcs	XW2Z-[][][]D: 2 Cables
	64	CS1W-ID261	XW2R-N16GD-C1-COM: 4 pcs	XW2Z-[][][]D: 2 Cables
I/O	16	NX-MD6121-6 (inputs)	XW2R-N16GD-C1-COM: 1 pcs	XW2Z-[][][]A: 1 Cable
	16	CJ1W-MD231 (inputs)	XW2R-N16GD-C1-COM: 1 pcs	XW2Z-[][][]A: 1 Cable
	32	CJ1W-MD261 (inputs)	XW2R-N16GD-C1-COM: 2 pcs	XW2Z-[][][]D: 1 Cable
		CS1W-MD261 (inputs)
		CS1W-MD262 (inputs)
		CS1W-MD561 (inputs)
Input	32	CJ1W-ID232	XW2R-N16GD-C1-COM: 2 pcs	XW2Z-[][][]N: 1 Cable
Input		CJ1W-ID233
I/O		CJ1W-MD263 (inputs)
I/O		CJ1W-MD563 (inputs)
Input	64	CJ1W-ID262	XW2R-N16GD-C1-COM: 4 pcs	XW2Z-[][][]N: 2 Cables

* [][][] is replaced by the cable length. Refer to "PLC Connecting Cables".
Note: Connection is not possible to all OMRON PLC Units.
This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
supply and I/O on the Connector-Terminal Block Conversion Unit.

Models with 32 Poles

I/O	I/O Points	I/O Unit Model	Models that connect to PLCs	Connecting cables *
Input	32	NX-ID6142-5	XW2R-N32GD-C2-COM: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		NX-ID6142-6	XW2R-N32GD-C1-COM: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CJ1W-ID231	XW2R-N32GD-C1-COM: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-ID231	XW2R-N32GD-C1-COM: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
	64	CJ1W-ID261	XW2R-N32GD-C1-COM: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
	64	CS1W-ID261	XW2R-N32GD-C1-COM: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
I/O	32	CJ1W-MD261 (inputs)	XW2R-N32GD-C1-COM: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-MD261 (inputs)
		CS1W-MD262 (inputs)
		CS1W-MD561 (inputs)
Input	32	CJ1W-ID232	XW2R-N32GD-C2-COM: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
	32	CJ1W-ID233	XW2R-N32GD-C2-COM: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
	64	CJ1W-ID262	XW2R-N32GD-C2-COM: 2 pcs	XW2Z-[][][]K: 2 Cables, or XW2Z-[][][][]FF-L: 2 Cables
I/O	32	CJ1W-MD263 (inputs)	XW2R-N32GD-C2-COM: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
I/O	32	CJ1W-MD563 (inputs)	XW2R-N32GD-C2-COM: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable

* [][][][] is replaced by the cable length. Refer to "PLC Connecting Cables".
Note: Connection is not possible to all OMRON PLC Units.
This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
supply and I/O on the Connector-Terminal Block Conversion Unit.

PLC Connecting Cables

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.5	XW2Z-050B	XW2Z-0050BF-L
	1	XW2Z-100B	XW2Z-0100BF-L
	1.5	XW2Z-150B	XW2Z-0150BF-L
	2	XW2Z-200B	XW2Z-0200BF-L
	3	XW2Z-300B	XW2Z-0300BF-L
	5	XW2Z-500B	XW2Z-0500BF-L
	7	XW2Z-700B	XW2Z-0700BF-L
	10	XW2Z-010B	XW2Z-1000BF-L
	15	XW2Z-15MB	---
	20	XW2Z-20MB	---

Cable length L (m)

XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin Connector to One 40-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.25	XW2Z-C25K	---
	0.5	XW2Z-C50K	XW2Z-0050FF-L
	1	XW2Z-100K	XW2Z-0100FF-L
	1.5	XW2Z-150K	XW2Z-0150FF-L
	2	XW2Z-200K	XW2Z-0200FF-L
	3	XW2Z-300K	XW2Z-0300FF-L
	5	XW2Z-500K	XW2Z-0500FF-L
	7	---	XW2Z-0700FF-L
	10	XW2Z-010K	XW2Z-1000FF-L

Cable length L (m)

e-CON Type

I/O Points	Input/Output	Model
16	Input	XW2R-N16GD-C1-COM
32		XW2R-N32GD-C1-COM
32		XW2R-N32GD-C2-COM

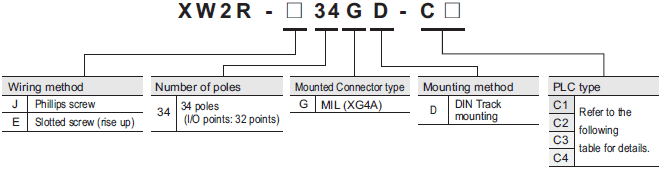

without power supply terminals

Model List

Models for OMRON PLCs

I/O	I/O Points	I/O Unit Model	*Models that connect to PLCs 1**	*Connecting cables 2**
Input	32	NX-ID6142-6	XW2R-[]34GD-C1: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CJ1W-ID231	XW2R-[]34GD-C1: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-ID231	XW2R-[]34GD-C1: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
	64	CJ1W-ID261	XW2R-[]34GD-C1: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
	64	CS1W-ID261	XW2R-[]34GD-C1: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
I/O	32	CJ1W-MD261 (inputs)	XW2R-[]34GD-C1: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-MD261 (inputs)
		CS1W-MD262 (inputs)
		CS1W-MD561 (inputs)
Input	32	NX-ID6142-5	XW2R-[]34GD-C2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		CJ1W-ID232	XW2R-[]34GD-C2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		CJ1W-ID233	XW2R-[]34GD-C2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
	64	CJ1W-ID262	XW2R-[]34GD-C2: 2 pcs	XW2Z-[][][]K: 2 Cables, or XW2Z-[][][][]FF-L: 2 Cables
I/O	32	CJ1W-MD263 (inputs)	XW2R-[]34GD-C2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
I/O	32	CJ1W-MD563 (inputs)	XW2R-[]34GD-C2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
Output	32	NX-OD6121-6	XW2R-[]34GD-C3: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CJ1W-OD231	XW2R-[]34GD-C3: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-OD231
		CS1W-OD232
	64	CJ1W-OD261	XW2R-[]34GD-C3: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
		CS1W-OD261
		CS1W-OD262
I/O	32	CJ1W-MD261 (outputs)	XW2R-[]34GD-C3: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		CS1W-MD261 (outputs)
		CS1W-MD262 (outputs)
		CS1W-MD561 (outputs)
Output	32	NX-OD6121-5	XW2R-[]34GD-C4: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		NX-OD6256-5	XW2R-[]34GD-C4: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		CJ1W-OD232	XW2R-[]34GD-C4: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
		CJ1W-OD233
		CJ1W-OD234
	64	CJ1W-OD262	XW2R-[]34GD-C4: 2 pcs	XW2Z-[][][]K: 2 Cables, or XW2Z-[][][][]FF-L: 2 Cables
	64	CJ1W-OD263	XW2R-[]34GD-C4: 2 pcs	XW2Z-[][][]K: 2 Cables, or XW2Z-[][][][]FF-L: 2 Cables
I/O	32	CJ1W-MD263 (outputs)	XW2R-[]34GD-C4: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable
I/O	32	CJ1W-MD563 (outputs)	XW2R-[]34GD-C4: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable

*1 Replace the box ([]) with the wiring method code (J or E).
*2 [][][][] is replaced by the cable length. For details, refer to Data Sheet.
Note: 1. Connection is not possible to all OMRON PLC Units.
2. There is one common for each 32 points.

Phillips screw

Appearance	I/O Points (Number of poles)	Model ∗
	32 (34)	XW2R-J34GD-C1
		XW2R-J34GD-C2
		XW2R-J34GD-C3
		XW2R-J34GD-C4

* Only DIN Track mounting models are described here.

Slotted screw (rise up)

Appearance	I/O Points (Number of poles)	Model ∗
	32 (34)	XW2R-E34GD-C1
		XW2R-E34GD-C2
		XW2R-E34GD-C3
		XW2R-E34GD-C4

* Only DIN Track mounting models are described here.

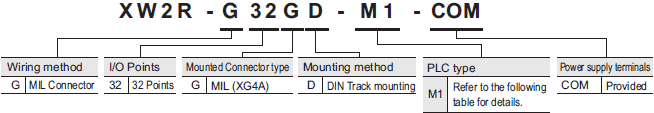

Models for Connection to Mitsubishi PLCs

with power supply terminals

Model List

MIL Connector

Models for Connection to Mitsubishi PLCs

I/O Points	Model	Models that connect to PLCs	Connecting cables *
32	QX41, QX41-S1, QX41-S2, QX71	XW2R-G32GD-M1-COM: 1 pcs	Connection A XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable Connection B XW2Z-[][][]AA: 4 Cables
	QH42P (Input) , QX41Y41P (Input)
	LX41C4
64	QX42, QX42-S1, QX82, QX82-S1	XW2R-G32GD-M1-COM: 2 pcs	Connection A XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables Connection B XW2Z-[][][]AA: 8 Cables
64	LX42C4	XW2R-G32GD-M1-COM: 2 pcs

* [][][][] is replaced by the cable length.
Note: This Connector-Terminal Block Conversion Unit is for NPN. For PNP, reverse the polarity of the external power
supply and I/O on the Connector-Terminal Block Conversion Unit.

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.5	XW2Z-050B	XW2Z-0050BF-L
	1	XW2Z-100B	XW2Z-0100BF-L
	1.5	XW2Z-150B	XW2Z-0150BF-L
	2	XW2Z-200B	XW2Z-0200BF-L
	3	XW2Z-300B	XW2Z-0300BF-L
	5	XW2Z-500B	XW2Z-0500BF-L
	7	XW2Z-700B	XW2Z-0700BF-L
	10	XW2Z-010B	XW2Z-1000BF-L
	15	XW2Z-15MB	---
	20	XW2Z-20MB	---

Cable length L (m)

XW2Z-[][][]AA
One 14-pin MIL Connector to One 14-pin MIL Connector

Appearance	Cable length L (m)	With shield
Appearance	Cable length L (m)	Model
	0.5	XW2Z-050AA
	1	XW2Z-100AA
	2	XW2Z-200AA
	5	XW2Z-500AA
	10	XW2Z-010AA

Cable length L (m)

Appearance	Model	Number of poles
	XW2R-G32GD-M1-COM	40 poles x 1 point 14 poles x 4 points

Appearance	I/O Points	Number of poles (PLC end)	I/O	Model	Mounted Connector model	Cable Connector model
	8 points	14 poles	Input	XW2R-N08GD-COM	XG4A-1431 (PLC end) XN2D-4471 (for input)	XG4M-1430-T (PLC end) XN2A-1470 (for input)

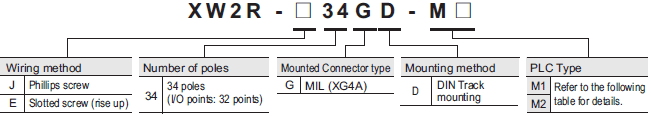

without power supply terminals

Model List

Models for Connection to Mitsubishi PLCs

PLC Type	I/O Points	Mitsubishi PLC Module model	*Models that connect to PLCs 1**	*Connecting cables 2**
M1	32	LX41C4	XW2R-[]34GD-M1: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][]BF-L: 1 Cable
		QX41/QX41-S1/QX41-S2
		QX71
		RX41C4
		QH42P (Input)
		QX41Y41P (Input)
		RH42C4NT2P (Input)
	64	LX42C4	XW2R-[]34GD-M1: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 2 Cables
		QX42/QX42-S1
		QX82/QX82-S1
		RX42C4
M2	32	LY41NT1P	XW2R-[]34GD-M2: 1 pcs	XW2Z-[][][]B: 1 Cable, or XW2Z-[][][][]BF-L: 1 Cable
		QY41P
		QY71
		RY41NT2P
		RY41PT1P
		QH42P (Output)
		QX41Y41P (Output)
		RH42C4NT2P (Output)
	64	LY42NT1P	XW2R-[]34GD-M2: 2 pcs	XW2Z-[][][]B: 2 Cables, or XW2Z-[][][][]BF-L: 1 Cable
		QY42P
		QY82P
		RY42NT2P
		RY42PT1P

*1 Replace the box ([]) with the wiring method code (J or E).
*2 [][][][] is replaced by the cable length.

XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.5	XW2Z-050B	XW2Z-0050BF-L
	1	XW2Z-100B	XW2Z-0100BF-L
	1.5	XW2Z-150B	XW2Z-0150BF-L
	2	XW2Z-200B	XW2Z-0200BF-L
	3	XW2Z-300B	XW2Z-0300BF-L
	5	XW2Z-500B	XW2Z-0500BF-L
	7	XW2Z-700B	XW2Z-0700BF-L
	10	XW2Z-010B	XW2Z-1000BF-L
	15	XW2Z-15MB	---
	20	XW2Z-20MB	---

Cable length L (m)

Phillips screw

Appearance	I/O Points (Number of poles)	Model ∗
	32 (34)	XW2R-J34GD-M1
	32 (34)	XW2R-J34GD-M2

* Only DIN Track mounting models are described here.

Slotted screw (rise up)

Appearance	I/O Points (Number of poles)	Model ∗
	32 (34)	XW2R-E34GD-M1
	32 (34)	XW2R-E34GD-M2

* Only DIN Track mounting models are described here.

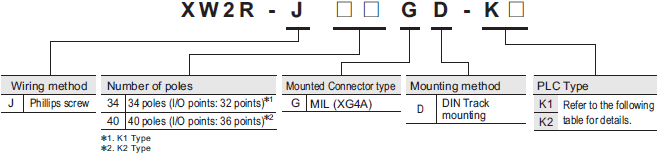

Models for Keyence PLCs

without power supply terminals

Model List

Models for Keyence PLCs

I/O	I/O Points	Unit	Models for Keyence PLCs	Models that connect to PLCs	Connecting cables ∗1
Input	32	I/O Unit Model	KV-C32XA, KV-C32XC	XW2R-J34GD-K1: 1 pcs	XW2Z-[][][]EE: 1 Cable, or XW2Z-[][][][]EE-L: 1 Cable
Output			KV-C32TA, KV-C32TC, KV-C32TCP
Output			KV-C32TD
I/O			KV-C32XTD
Input	64		KV-C64XA, KV-C64XB, KV-C64XC	XW2R-J34GD-K1: 2 pcs	XW2Z-[][][]EE: 2 Cables, or XW2Z-[][][][]EE-L: 2 Cables
Output	64		KV-C64TA, KV-C64TC, KV-C64TD, KV-C64TCP	XW2R-J34GD-K1: 2 pcs	XW2Z-[][][]EE: 2 Cables, or XW2Z-[][][][]EE-L: 2 Cables
---	---	CPU Unit Model	KV-1000, KV-3000, KV-5000, KV-5500	XW2R-J40GD-K2: 1 pcs	XW2Z-[][][]K: 1 Cable, or XW2Z-[][][][]FF-L: 1 Cable

*1 [][][][] is replaced by the cable length.

XW2Z-[][][]EE, XW2Z-[][][][]EE-L
Connectors: One 34-pin MIL Connector to One 34-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.5	XW2Z-050EE	XW2Z-0050EE-L
	1	XW2Z-100EE	XW2Z-0100EE-L
	1.5	XW2Z-150EE	XW2Z-0150EE-L
	2	XW2Z-200EE	XW2Z-0200EE-L
	3	XW2Z-300EE	XW2Z-0300EE-L
	5	XW2Z-500EE	XW2Z-0500EE-L
	7	---	XW2Z-0700EE-L
	10	---	XW2Z-1000EE-L

Cable length L (m)

XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin MIL Connector to One 40-pin MIL Connector

Appearance	Cable length L (m)	With shield	Without shield
Appearance	Cable length L (m)	Model	Model
	0.25	XW2Z-C25K	---
	0.5	XW2Z-C50K	XW2Z-0050FF-L
	1	XW2Z-100K	XW2Z-0100FF-L
	1.5	XW2Z-150K	XW2Z-0150FF-L
	2	XW2Z-200K	XW2Z-0200FF-L
	3	XW2Z-300K	XW2Z-0300FF-L
	5	XW2Z-500K	XW2Z-0500FF-L
	7	---	XW2Z-0700FF-L
	10	XW2Z-010K	XW2Z-1000FF-L

Cable length L (m)

Phillips screw

Appearance	I/O Points (Number of poles)	Model ∗
	32 (34)	XW2R-J34GD-K1
	36 (40)	XW2R-J40GD-K2

* Only DIN Track mounting models are described here.

Input Device Connectors: XN2 e-CON Connectors

For Sensor

Appearance	Number of poles	Model
	4	XN2A-1470

Relay Connector

Appearance	Number of poles	Model
	4	XN2B-1470

last update: April 1, 2024

Product Category

Power Supplies / In Addition
- Wiring Systems
  - Connector-Terminal Block Conversion Units

Top of page
