Built-in Power Supply Photoelectric Sensor
last update: May 11, 2015

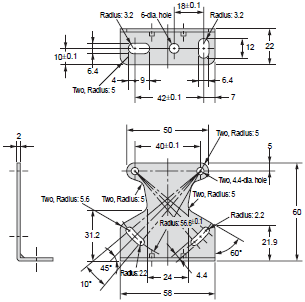

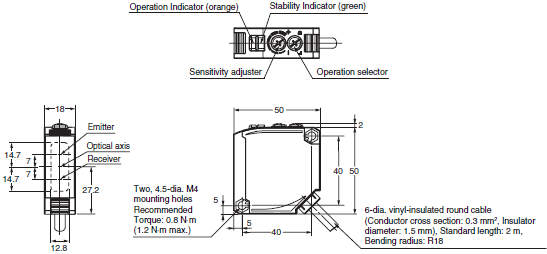

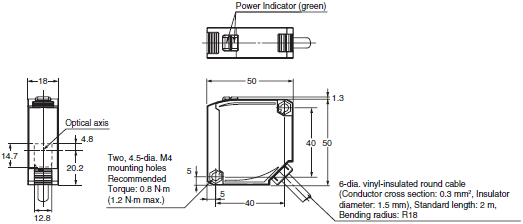

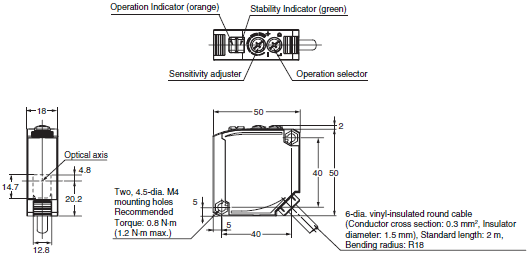

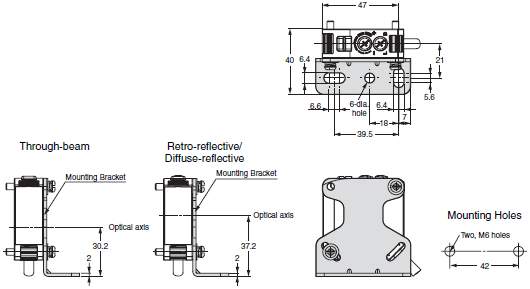

(Unit: mm)
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Material:
Reflective surface: acrylic
Rear surface: ABS
Material:
Reflective surface: acrylic
Rear surface: ABS
last update: May 11, 2015
