General Specification
| Item | Specification | |
|---|---|---|
| Enclosure | Mounted in a panel | |
| Grounding method | Ground to 100 Ω or less | |
| Operating
environment |
Ambient operating
temperature |
0 to 55°C |
| Ambient operating
humidity |
10% to 95% (with no condensation or icing) | |
| Atmosphere | Must be free from corrosive gases. | |
| Ambient storage
temperature |
-25 to 70°C (with no condensation or icing) | |
| Altitude | 2,000 m max. | |
| Pollution degree | 2 or less: Meets IEC 61010-2-201. | |
| Noise immunity | 2 kV on power supply line (Conforms to IEC61000-4-4.) | |
| Overvoltage category | Category II: Meets IEC 61010-2-201. | |
| EMC immunity level | Zone B | |
| Vibration resistance | Conforms to IEC 60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2, 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
|
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times each in X, Y, and Z directions | |
| Applicable standards * | cULus: Listed (UL508), ANSI/ISA 12.12.01, EU: EN 61131-2, C-Tick or RCM,
KC Registration, NK, LR |
|
* Ask your OMRON representative for the most recent applicable standards for each model.
Temperature Input Unit Specifications
Temperature Input Unit (Thermocouple Input type) 2 points NX-TS2101
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS2101 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, B, WRe5-26,
PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.1°C max. *1 | ||
| Reference accuracy | *2 | ||
| Temperature
coefficient |
*2 | ||
| Cold junction
compensation error |
±1.2°C *3 *4 | ||
| Input disconnection
detection current |
Approx. 0.1 μA | ||
| Warm-up period | 30 minutes | Conversion time | 250 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Photocoupler Between inputs: Power = Transformer, Signal = Photocoupler |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.25 W max. • Connected to a Communi- cations Coupler Unit 0.90 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||

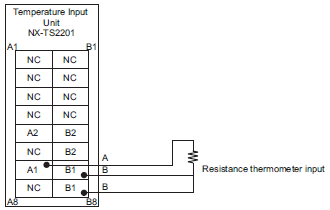

| Terminal
connection diagram |
 |
||
*1. The resolution is 0.2°C max. when the input type is R, S, or W.
*2. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*3. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.

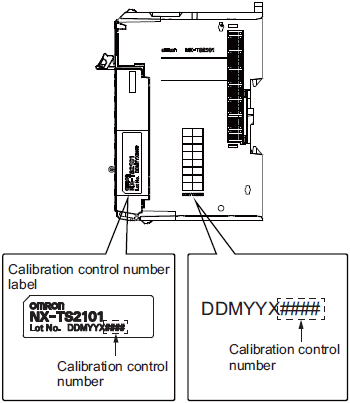

A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*4. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
*2. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*3. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*4. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Thermocouple Input type) 2 points NX-TS2102
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS2102 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, WRe5-26, PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.01°C max. | ||
| Reference accuracy | *1 | ||
| Temperature
coefficient |
*1 | ||
| Cold junction
compensation error |
±1.2°C *2 *3 | ||
| Input disconnection
detection current |
Approx. 0.1 μA | ||
| Warm-up period | 45 minutes | Conversion time | 10 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.15 W max. • Connected to a Communi- cations Coupler Unit 0.80 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||
| Terminal
connection diagram |
 |
||
*1. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Thermocouple Input type) 2 points NX-TS2104
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS2104 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, WRe5-26, PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.001°C max. | ||
| Reference accuracy | *1 | ||
| Temperature
coefficient |
*1 | ||
| Cold junction
compensation error |
±1.2°C *2 *3 | ||
| Input disconnection
detection current |
Approx. 0.1 μA | ||
| Warm-up period | 45 minutes | Conversion time | 60 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 0.95 W max. • Connected to a Communi- cations Coupler Unit 0.80 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||
| Terminal
connection diagram |
 |
||
*1. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Resistance Thermometer Input type) 2 points NX-TS2201
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS2201 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire)/Pt1000 (three-wire) |
| Input conversion range | ±20°C of the input range | ||
| Input detection current | Approx. 0.25 mA | ||
| Resolution | 0.1°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 10 minutes | Conversion time | 250 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Photocoupler Between inputs: Power = Transformer, Signal = Photocoupler |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.25 W max. • Connected to a Communi- cations Coupler Unit 0.90 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||
| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Temperature Input Unit (Resistance Thermometer Input type) 2 points NX-TS2202
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS2202 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire) |
| Input conversion range | ±20°C of the input range | ||
| Input detection current | Approx. 0.25 mA | ||
| Resolution | 0.01°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 30 minutes | Conversion time | 10 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.15 W max. • Connected to a Communi- cations Coupler Unit 0.75 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||
| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Temperature Input Unit (Resistance Thermometer Input type) 2 points NX-TS2204
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS2204 |
|---|---|---|---|
| Number of points | 2 points | External connection
terminals |
Screwless clamping terminal block (16
terminals) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire)/Pt1000 (three-wire) |
| Input conversion range | ±20°C of the input range | ||
| Input detection current | Approx. 0.25 mA | ||
| Resolution | 0.001°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 30 minutes | Conversion time | 60 ms/Unit |
| Dimensions | 12 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 0.90 W max. • Connected to a Communi- cations Coupler Unit 0.75 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 70 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||
| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Temperature Input Unit (Thermocouple Input type) 2 points NX-TS3101
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS3101 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, B, WRe5-26,
PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.1°C max. *1 | ||
| Reference accuracy | *2 | ||
| Temperature
coefficient |
*2 | ||
| Cold junction
compensation error |
±1.2°C *3 *4 | ||
| Input disconnection
detection current |
Approx. 0.1μA | ||
| Warm-up period | 30 minutes | Conversion time | 250 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Photocoupler Between inputs: Power = Transformer, Signal = Photocoupler |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.75 W max. • Connected to a Communi- cations Coupler Unit 1.30 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 140 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||

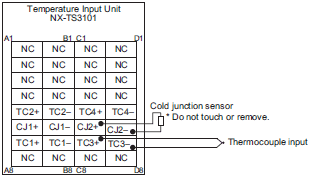

| Terminal
connection diagram |
 |
||
*1. The resolution is 0.2°C max. when the input type is R, S, or W.
*2. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*3. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*4. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
*2. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*3. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*4. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Thermocouple Input type) 4 points NX-TS3102
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS3102 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, WRe5-26, PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.01°C max. | ||
| Reference accuracy | *1 | ||
| Temperature
coefficient |
*1 | ||
| Cold junction
compensation error |
±1.2°C *2 *3 | ||
| Input disconnection
detection current |
Approx. 0.1 μA | ||
| Warm-up period | 45 minutes | Conversion time | 10 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.55 W max. • Connected to a Communi- cations Coupler Unit 1.10 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 140 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||

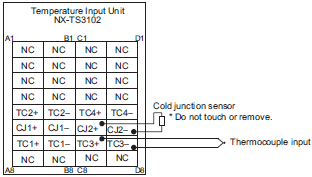

| Terminal
connection diagram |
 |
||
*1. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Thermocouple Input type) 4 points NX-TS3104
| Unit name | Temperature Input Unit
(thermocouple input type) |
Model | NX-TS3104 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | K, J, T, E, L, U, N, R, S, WRe5-26, PLII |
| Input conversion range | ±20°C of the input range | ||
| Absolute maximum
rating |
±130 mV | ||
| Input impedance | 20 kΩ min. | ||
| Resolution | 0.001°C max. | ||
| Reference accuracy | *1 | ||
| Temperature
coefficient |
*1 | ||
| Cold junction
compensation error |
±1.2°C *2 *3 | ||
| Input disconnection
detection current |
Approx. 0.1 μA | ||
| Warm-up period | 45 minutes | Conversion time | 60 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus:
Power = Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for
1 minute at a leakage current of 5 mA max. |
| I/O power supply
method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.45 W max. • Connected to a Communi- cations Coupler Unit 1.10 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 140 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: The cold junction compensation error is restricted according to the installation orientation and the power consumption of adjacent Units. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type. |
||

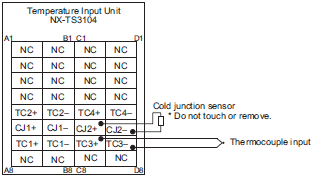

| Terminal
connection diagram |
 |
||
*1. Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature.
*2. The overall accuracy is guaranteed for a set consisting of a cold junction sensor that is mounted on the terminal
block and a Temperature Input Unit. Be sure to use the terminal block and the Temperature Input Unit together.
A calibration control number is both displayed on the terminal block and the Unit. Make sure to return the terminal
block (including a cold junction sensor mounted) and the Unit together for repair.
*3. Refer to Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type for the
specifications for each set of operating conditions.
Temperature Input Unit (Resistance Thermometer Input type) 4 points NX-TS3201
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS3201 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 Terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire)/Pt1000 (three-wire) |
| Input conversion
range |
±20°C of the input range | ||
| Input detection
current |
Approx. 0.25 mA | ||
| Resolution | 0.1°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 10 minutes | Conversion time | 250 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus: Power
= Transformer, Signal = Photocoupler Between inputs: Power = Transformer, Signal = Photocoupler |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for 1
minute at a leakage current of 5 mA max. |
| I/O power
supply method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.75 W max. • Connected to a Communi- cations Coupler Unit 1.30 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 140 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||

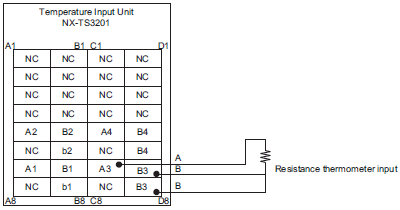

| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Temperature Input Unit (Resistance Thermometer Input type) 4 points NX-TS3202
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS3202 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 Terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire) |
| Input conversion
range |
±20°C of the input range | ||
| Input detection
current |
Approx. 0.25 mA | ||
| Resolution | 0.01°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 30 minutes | Conversion time | 10 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus: Power
= Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for 1
minute at a leakage current of 5 mA max. |
| I/O power
supply method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.50 W max. • Connected to a Communi- cations Coupler Unit 1.05 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 130 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||

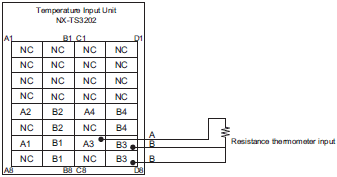

| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Temperature Input Unit (Resistance Thermometer Input type) 4 points NX-TS3204
| Unit name | Temperature Input Unit
(resistance thermometer input type) |
Model | NX-TS3204 |
|---|---|---|---|
| Number of points | 4 points | External connection
terminals |
Screwless clamping terminal block
(16 Terminals x 2) |
| I/O refreshing
method |
Free-Run refreshing | ||
| Indicator | TS indicator
 |
Temperature sensor | Pt100 (three-wire)/Pt1000 (three-wire) |
| Input conversion
range |
±20°C of the input range | ||
| Input detection
current |
Approx. 0.25 mA | ||
| Resolution | 0.001°C max. | ||
| Reference accuracy | * | ||
| Temperature
coefficient |
* | ||
| Effect of conductor
resistance |
0.06°C/Ω max. (also 20 Ω max.) | ||
| Warm-up period | 30 minutes | Conversion time | 60 ms/Unit |
| Dimensions | 24 (W) x 100 (H) x 71 (D) | Isolation method | Between the input and the NX bus: Power
= Transformer, Signal = Digital isolator Between inputs: Power = Transformer, Signal = Digital isolator |
| Insulation
resistance |
20 MΩ min. between isolated
circuits (at 100 VDC) |
Dielectric strength | 510 VAC between isolated circuits for 1
minute at a leakage current of 5 mA max. |
| I/O power
supply method |
No supply | Current capacity of
I/O power supply terminal |
Without I/O power supply terminals |
| NX Unit power
consumption |
• Connected to a CPU Unit or
Communication Control Unit 1.45 W max. • Connected to a Communi- cations Coupler Unit 1.05 W max. |
Current consumption
from I/O power supply |
No consumption |
| Weight | 130 g max. | ||
| Installation
orientation and restrictions |
Installation orientation:
• Connected to a CPU Unit or Communication Control Unit: Possible in upright installation. • Connected to a Communications Coupler Unit: Possible in 6 orientations. Restrictions: No restrictions |
||

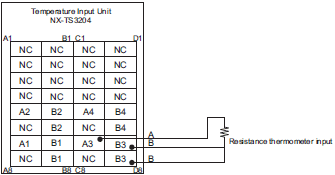

| Terminal
connection diagram |
 |
||
* Refer to Reference Accuracy and Temperature Coefficient According to the Input Type and Measurement Temperature.
Reference accuracy and temperature coefficient according to the input type and measurement temperature *1
For NX-TS[][]02/TS[][]04
| Conversion
time |
Input type | Measured
temperature (°C) |
Reference
accuracy °C (%) *3 |
Temperature
coefficient °C/°C *4 Input (ppm/°C *5) |
|
|---|---|---|---|---|---|
| Input
type *2 |
Temperature
range (°C) |
||||
| 10/60 ms | K | -200 to 1300 | Same as the left | ±0.75 (±0.05%) | ±0.08 (±50 ppm/°C) |
| K | -20 to 600
(High Resolution) |
Same as the left | ±0.30 (±0.05%) | ±0.03 (±48 ppm/°C) | |
| J | -200 to 1200 | -200 to 0 | ±0.70 (±0.05%) | ±0.13 (±96 ppm/°C) | |
| 0 to 1200 | ±0.06 (±42 ppm/°C) | ||||
| J | -20 to 600
(High Resolution) |
Same as the left | ±0.30 (±0.05%) | ±0.04 (±72 ppm/°C) | |
| T | -200 to 400 | -200 to -180 | ±1.30 (±0.22%) | ±0.05 (±75 ppm/°C) | |
| -180 to 0 | ±0.70 (±0.12%) | ||||
| 0 to 400 | ±0.33 (±0.055%) | ||||
| E | -200 to 1000 | -200 to 0 | ±0.60 (±0.05%) | ±0.12 (±100 ppm/°C) | |
| 0 to 1000 | ±0.06 (±50 ppm/°C) | ||||
| L | -200 to 900 | Same as the left | ±0.50 (±0.05%) | ±0.04 (±40 ppm/°C) | |
| U | -200 to 600 | -200 to -100 | ±0.70 (±0.09%) | ±0.06 (±75 ppm/°C) | |
| -100 to 0 | ±0.50 (±0.07%) | ||||
| 0 to 600 | ±0.40 (±0.05%) | ||||
| N | -200 to 1300 | -200 to -150 | ±1.60 (±0.11%) | ±0.11 (±70 ppm/°C) | |
| -150 to -100 | ±0.75 (±0.05%) | ||||
| -100 to 1300 | ±0.08 (±50 ppm/°C) | ||||
| R | -50 to 1700 | -50 to 0 | ±3.20 (±0.19%) | ±0.13 (±77 ppm/°C) | |
| 0 to 100 | ±2.50 (±0.15%) | ±0.11 (±60 ppm/°C) | |||
| 100 to 1700 | ±1.75 (±0.10%) | ||||
| S | -50 to 1700 | -50 to 0 | ±3.20 (±0.19%) | ±0.13 (±77 ppm/°C) | |
| 0 to 100 | ±2.50 (±0.15%) | ±0.11 (±60 ppm/°C) | |||
| 100 to 1700 | ±1.75 (±0.10%) | ||||
| WRe5-26 | 0 to 2300 | 0 to 1500 | ±1.15 (±0.05%) | ±0.13 (±58 ppm/°C) | |
| 1500 to 2200 | ±0.21 (±91 ppm/°C) | ||||
| 2200 to 2300 | ±1.40 (±0.07%) | ||||
| PL II | 0 to 1300 | Same as the left | ±0.65 (±0.05%) | ±0.07 (±57 ppm/°C) | |
| Pt100 | -200 to 850 | -200 to -50 | ±0.50 (±0.05%) | ±0.08 (±78 ppm/°C) | |
| -50 to 150 | ±0.21 (±0.02%) | ±0.03 (±29 ppm/°C) | |||
| 150 to 850 | ±0.50 (±0.05%) | ±0.08 (±78 ppm/°C) | |||
| Pt1000 | -200 to 850 | Same as the left | ±0.50 (±0.05%) | ±0.09 (±85 ppm/°C) | |
For NX-TS[][]01
| Conversion
time |
Input type | Measured
temperature (°C) |
Reference
accuracy °C (%) *3 |
Temperature
coefficient °C/°C *4 Input (ppm/°C *5) |
|
|---|---|---|---|---|---|
| Input
type |
Temperature
range (°C) |
||||
| 250 ms | K | -200 to 1300 | -200 to -100 | ±1.5 (±0.1%) | ±0.15 (±100 ppm/°C) |
| -100 to 400 | ±0.30 (±200 ppm/°C) | ||||
| 400 to 1300 | ±0.38 (±250 ppm/°C) | ||||
| J | -200 to 1200 | -200 to 400 | ±1.4 (±0.1%) | ±0.14 (±100 ppm/°C) | |
| 400 to 900 | ±1.2 (±0.09%) | ±0.28 (±200 ppm/°C) | |||
| 900 to 1200 | ±0.35 (±250 ppm/°C) | ||||
| T | -200 to 400 | -200 to -100 | ±1.2 (±0.2%) | ±0.30 (±500 ppm/°C) | |
| -100 to 400 | ±0.12 (±200 ppm/°C) | ||||
| E | -200 to 1000 | -200 to 400 | ±1.2 (±0.1%) | ±0.12 (±100 ppm/°C) | |
| 400 to 700 | ±2.0 (±0.17%) | ±0.24 (±200 ppm/°C) | |||
| 700 to 1000 | ±0.30 (±250 ppm/°C) | ||||
| L | -200 to 900 | -200 to 300 | ±1.1 (±0.1%) | ±0.11 (±100 ppm/°C) | |
| 300 to 700 | ±2.2 (±0.2%) | ±0.22 (±200 ppm/°C) | |||
| 700 to 900 | ±0.28 (±250 ppm/°C) | ||||
| U | -200 to 600 | -200 to 400 | ±1.2 (±0.15%) | ±0.12 (±150 ppm/°C) | |
| 400 to 600 | ±1.0 (±0.13%) | ||||
| N | -200 to 1300 | -200 to 400 | ±1.5 (±0.1%) | ±0.30 (±200 ppm/°C) | |
| 400 to 1000 | |||||
| 1000 to 1300 | ±0.38 (±250 ppm/°C) | ||||
| R | -50 to 1700 | -50 to 500 | ±1.75 (±0.1%) | ±0.44 (±250 ppm/°C) | |
| 500 to 1200 | ±2.5 (±0.15%) | ||||
| 1200 to 1700 | |||||
| S | -50 to 1700 | -50 to 600 | ±1.75 (±0.1%) | ±0.44 (±250 ppm/°C) | |
| 600 to 1100 | ±2.5 (±0.15%) | ||||
| 1100 to 1700 | |||||
| B | 0 to 1800 | 0.0 to 400.0 | Reference accuracy
does not apply |
Reference accuracy does
not apply |
|
| 400 to 1200 | ±3.6 (±0.2%) | ±0.45 (±250 ppm/°C) | |||
| 1200 to 1800 | ±5.0 (±0.28%) | ±0.54 (±300 ppm/°C) | |||
| WRe5-26 | 0 to 2300 | 0 to 300 | ±1.15 (±0.05%) | ±0.46 (±200 ppm/°C) | |
| 300 to 800 | ±2.3 (±0.1%) | ||||
| 800 to 1500 | ±3.0 (±0.13%) | ||||
| 1500 to 2300 | ±0.691 (±300 ppm/°C) | ||||
| PLII | 0 to 1300 | 0 to 400 | ±1.3 (±0.1%) | ±0.23 (±200 ppm/°C) | |
| 400 to 800 | ±2.0 (±0.15%) | ±0.39 (±300 ppm/°C) | |||
| 800 to 1300 | ±0.65 (±500 ppm/°C) | ||||
| Pt100 | -200 to 850 | -200 to 300 | ±1.0 (±0.1%) | ±0.1 (±100 ppm/°C) | |
| 300 to 700 | ±2.0 (±0.2%) | ±0.2 (±200 ppm/°C) | |||
| 700 to 850 | ±2.5 (±0.25%) | ±0.25 (±250 ppm/°C) | |||
| Pt1000 | -200 to 850 | -200 to 300 | ±1.0 (±0.1%) | ±0.1 (±100 ppm/°C) | |
| 300 to 700 | ±2.0 (±0.2%) | ±0.2 (±200 ppm/°C) | |||
| 700 to 850 | ±2.5 (±0.25%) | ±0.25 (±250 ppm/°C) | |||
*1. To convert the temperature unit from Celsius to Fahrenheit, use the following equation.
Fahrenheit temperature (°F) = Celsius temperature (°C) x 1.8 + 32
*2. If there is more than one input range for the same input type, the one with narrower input range has higher
resolution.
*3. For a thermocouple input type Temperature Input Unit, the overall accuracy is guaranteed for a set consisting of a
cold junction sensor that is mounted on the terminal block and a Temperature Input Unit. Be sure to use the terminal
block and Temperature Input Unit with the same calibration control number together. For the 24 mm wide model,
also be sure the left and right terminal blocks are correctly attached.
Fahrenheit temperature (°F) = Celsius temperature (°C) x 1.8 + 32
*2. If there is more than one input range for the same input type, the one with narrower input range has higher
resolution.
*3. For a thermocouple input type Temperature Input Unit, the overall accuracy is guaranteed for a set consisting of a
cold junction sensor that is mounted on the terminal block and a Temperature Input Unit. Be sure to use the terminal
block and Temperature Input Unit with the same calibration control number together. For the 24 mm wide model,
also be sure the left and right terminal blocks are correctly attached.
*4. An error for a measured value when the ambient temperature changes by 1°C.
The following formula is used to calculate the error of the measured value.
Overall accuracy = Reference accuracy + Temperature characteristic x Change in the ambient temperature + Cold
junction compensation error (Calculation example)
Conditions
The following formula is used to calculate the error of the measured value.
Overall accuracy = Reference accuracy + Temperature characteristic x Change in the ambient temperature + Cold
junction compensation error (Calculation example)
Conditions
| Item | Description |
|---|---|
| Ambient temperature | 30°C |
| Measured value | 100°C |
| NX Unit | NX-TS2101 |
| Thermocouple | K thermocouple |
The characteristic values are formulated from the data sheet or reference accuracy and temperature coefficient table under the above conditions
| Item | Description |
|---|---|
| Reference accuracy | -100 to 400°C: ±1.5°C |
| Temperature coefficient | -100 to 400°C: ±0.30°C/°C |
| Change in the ambient temperature | 25°C -> 30°C 5 deg |
| Cold junction compensation error | ±1.2°C |
Therefore,
Overall accuracy = Reference accuracy + Temperature characteristic x Change in the ambient temperature + Cold junction compensation error
= ±1.5°C + (±0.30°C/°C) x 5 deg + ±1.2°C
= ±4.2°C
*5. The ppm value is for the full scale of temperature range.
Cold Junction Compensation Error Specifications for Units That Take a Thermocouple Input Type
The cold junction compensation error for Units that take a thermocouple input type is restricted as follows according to the installation orientation and the power consumption of adjacent Units *.
(a) For upright installation, when the power consumption is 1.5 W or less for both the left and right adjacent Units
The cold junction compensation error is ±1.2°C.
However, there are exceptions depending on the input type and temperature. Those conditions and the cold junction
compensation error are as in the table below.
The cold junction compensation error is ±1.2°C.
However, there are exceptions depending on the input type and temperature. Those conditions and the cold junction
compensation error are as in the table below.
| Input type and temperature range | Cold junction compensation error |
|---|---|
| T below -90°C | ±3.0°C |
| J, E, K and N below -100°C | |
| U, L and PLII | |
| R and S below 200°C | |
| B below 400°C | Not guaranteed |
| W | ±3.0°C |
(b) When the power consumption of either the left or the right adjacent Unit is more than 1.5 W but less than 3.9 W. Or
for any installation other than upright, when the power consumption of both the left and right adjacent Units is less
than 3.9 W
The cold junction compensation error is ±4.0°C.
However, there are exceptions depending on the input type and temperature. Those conditions and the cold junction
compensation error are as in the table below.
for any installation other than upright, when the power consumption of both the left and right adjacent Units is less
than 3.9 W
The cold junction compensation error is ±4.0°C.
However, there are exceptions depending on the input type and temperature. Those conditions and the cold junction
compensation error are as in the table below.
| Input type and temperature range | Cold junction compensation error |
|---|---|
| T below -90°C | ±7.0°C |
| J, E, K and N below -100°C | |
| U, L and PLII | |
| R and S below 200°C | |
| B below 400°C | Not guaranteed |
| W | ±9.0°C |
(c) When the power consumption exceeds 3.9 W for either the left or right adjacent Unit
Do not use the above condition (c) because the cold junction compensation error is not guaranteed in this condition.
Do not use the above condition (c) because the cold junction compensation error is not guaranteed in this condition.
* The power consumption of adjacent Units is the total of the following values.
The power consumption of the NX Unit power supply and I/O power supply for the NX Units adjacent to the
Temperature Input Unit. If the adjacent Unit is an Input Unit, it is the total power consumption according to the input
current.
The power consumption of the NX Unit power supply and I/O power supply for the NX Units adjacent to the
Temperature Input Unit. If the adjacent Unit is an Input Unit, it is the total power consumption according to the input
current.
Version Information
Connected to a CPU Unit
Refer to the user's manual for the CPU Unit for details on the CPU Units to which NX Units can be connected.
Temperature Input Units
| NX Unit | Corresponding unit versions/versions | ||
|---|---|---|---|
| Model | Unit version | CPU Unit | Sysmac Studio |
| NX-TS2101 | Ver.1.0 | Ver.1.13 | Ver.1.17 |
| Ver.1.1 | |||
| NX-TS2102 | Ver.1.1 | ||
| NX-TS2104 | Ver.1.1 | ||
| NX-TS2201 | Ver.1.0 | ||
| Ver.1.1 | |||
| NX-TS2202 | Ver.1.1 | ||
| NX-TS2204 | Ver.1.1 | ||
| NX-TS3101 | Ver.1.0 | ||
| Ver.1.1 | |||
| NX-TS3102 | Ver.1.1 | ||
| NX-TS3104 | Ver.1.1 | ||
| NX-TS3201 | Ver.1.0 | ||
| Ver.1.1 | |||
| NX-TS3202 | Ver.1.1 | ||
| NX-TS3204 | Ver.1.1 | ||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user's manuals for the specific Units for the relation between models and versions.
Connected to an EtherCAT Coupler Unit
Temperature Input Units
| NX Unit | Corresponding unit versions/versions | |||
|---|---|---|---|---|
| Model | Unit
Version |
EtherCAT
Coupler Unit |
CPU Unit or
Industrial PC |
Sysmac Studio |
| NX-TS2101 | Ver.1.0 | Ver.1.0 | Ver.1.05 | Ver.1.06 |
| Ver.1.1 | Ver.1.08 | |||
| NX-TS2102 | Ver.1.1 | |||
| NX-TS2104 | Ver.1.1 | |||
| NX-TS2201 | Ver.1.0 | Ver.1.06 | ||
| Ver.1.1 | Ver.1.08 | |||
| NX-TS2202 | Ver.1.1 | |||
| NX-TS2204 | Ver.1.1 | |||
| NX-TS3101 | Ver.1.0 | Ver.1.06 | ||
| Ver.1.1 | Ver.1.08 | |||
| NX-TS3102 | Ver.1.1 | |||
| NX-TS3104 | Ver.1.1 | |||
| NX-TS3201 | Ver.1.0 | Ver.1.06 | ||
| Ver.1.1 | Ver.1.08 | |||
| NX-TS3202 | Ver.1.1 | |||
| NX-TS3204 | Ver.1.1 | |||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
Connected to an EtherNet/IP Coupler Unit
Temperature Input Units
| NX Unit | Corresponding unit versions/versions | ||||||
|---|---|---|---|---|---|---|---|
| Model | Unit
Version |
Application with an
NJ/NX/NY-series Controller *1 |
Application with a
CS/CJ/CP-series PLC *2 |
||||
| EtherNet/IP
Coupler Unit |
CPU Unit or
Industrial PC |
Sysmac
Studio |
EtherNet/IP
Coupler Unit |
Sysmac
Studio |
NX-IO
Configurator *3 |
||
| NX-TS2101 | Ver.1.0 | Ver.1.2 | Ver.1.14 | Ver.1.19 | Ver.1.0 | Ver.1.10 | Ver.1.00 |
| Ver.1.1 | |||||||
| NX-TS2102 | Ver.1.1 | ||||||
| NX-TS2104 | Ver.1.1 | ||||||
| NX-TS2201 | Ver.1.0 | ||||||
| Ver.1.1 | |||||||
| NX-TS2202 | Ver.1.1 | ||||||
| NX-TS2204 | Ver.1.1 | ||||||
| NX-TS3101 | Ver.1.0 | ||||||
| Ver.1.1 | |||||||
| NX-TS3102 | Ver.1.1 | ||||||
| NX-TS3104 | Ver.1.1 | ||||||
| NX-TS3201 | Ver.1.0 | ||||||
| Ver.1.1 | |||||||
| NX-TS3202 | Ver.1.1 | ||||||
| NX-TS3204 | Ver.1.1 | ||||||
Note: Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
*1. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of EtherNet/IP Units corresponding to EtherNet/IP Coupler Units.
*2. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of CPU Units and EtherNet/IP Units corresponding to EtherNet/IP Coupler Units.
*3. For connection to an EtherNet/IP Coupler Unit with unit version 1.0, connection is supported only for a connection to the peripheral USB port on the EtherNet/IP Coupler Unit. You cannot connect by any other path. If you need to connect by another path, use an EtherNet/IP Coupler Unit with unit version 1.2 or later.
Connected to an Communication Control Unit
Temperature Input Units
| NX Unit | Corresponding unit versions/versions | ||
|---|---|---|---|
| Model | Unit version | Communication Control Unit | Sysmac Studio |
| NX-TS2101 | Ver.1.0 | Ver.1.00 | Ver.1.24 |
| Ver.1.1 | |||
| NX-TS2102 | Ver.1.1 | ||
| NX-TS2104 | Ver.1.1 | ||
| NX-TS2201 | Ver.1.0 | ||
| Ver.1.1 | |||
| NX-TS2202 | Ver.1.1 | ||
| NX-TS2204 | Ver.1.1 | ||
| NX-TS3101 | Ver.1.0 | Ver.1.00 | Ver.1.24 |
| Ver.1.1 | |||
| NX-TS3102 | Ver.1.1 | ||
| NX-TS3104 | Ver.1.1 | ||
| NX-TS3201 | Ver.1.0 | ||
| Ver.1.1 | |||
| NX-TS3202 | Ver.1.1 | ||
| NX-TS3204 | Ver.1.1 | ||
Note: 1. Some Units do not have all of the versions given in the above table. If a Unit does not have the specified version, support is provided by the oldest available version after the specified version. Refer to the user’s manuals for the specific Units for the relation between models and versions.
Note: 2. You cannot connect the relevant NX Unit to the Communication Control Unit if “---” is shown in the corresponding unit versions/versions column.
last update: February 6, 2020
Top of page
Products
Menu
About Us
Menu
Solutions
Menu
Privacy
Menu
Services
Menu
Resources
Menu
© Copyright OMRON Corporation 2000-2020. All Rights Reserved.
