22-mm dia. Indicators. Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring.

Indicator Unit Colors

M22N Lineup 1

List of Models

M22N Lineup 2

Model Number Structure

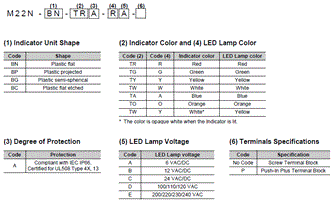

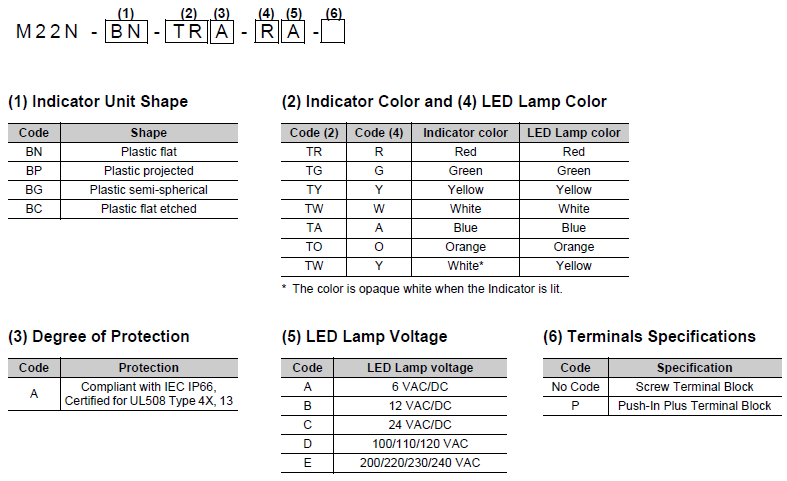

Model Number Legend

Shipped as a set that includes the Indicator Unit, LED Lamp, and Socket Unit.
For information on combinations, refer to Ordering Information.

Model Numbers for Sets

M22N Lineup 5

Ordering Information

Model Numbers for Sets

Shipped as a set that includes the Indicator Unit, LED Lamp, and Socket Unit.

Indicators

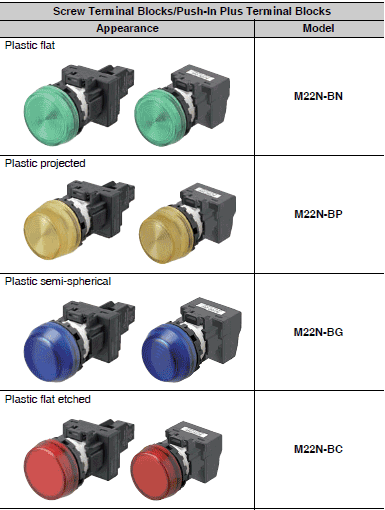

Appearance Rated voltage Model (2)(2)
Indicator color
(4)
LED lamp color
Plastic flat
3451_lu_4_1
6 VAC/DC M22N-BN-(2)(2)A-(4)A TR: Transparent red
TG: Transparent green
TY: Transparent yellow
TW: Transparent white
TA: Transparent blue
TO: Transparent orange
R: Red
G: Green
Y: Yellow
W: White
A: Blue
O: Orange
M22N-BN-(2)(2)A-(4)A-P
12 VAC/DC M22N-BN-(2)(2)A-(4)B
M22N-BN-(2)(2)A-(4)B-P
24 VAC/DC M22N-BN-(2)(2)A-(4)C
M22N-BN-(2)(2)A-(4)C-P
100, 110, or 120 VAC M22N-BN-(2)(2)A-(4)D
M22N-BN-(2)(2)A-(4)D-P
200, 220, 230, or 240 VAC M22N-BN-(2)(2)A-(4)E
M22N-BN-(2)(2)A-(4)E-P
Plastic
projected
3451_lu_4_2
6 VAC/DC M22N-BP-(2)(2)A-(4)A
M22N-BP-(2)(2)A-(4)A-P
12 VAC/DC M22N-BP-(2)(2)A-(4)B
M22N-BP-(2)(2)A-(4)B-P
24 VAC/DC M22N-BP-(2)(2)A-(4)C
M22N-BP-(2)(2)A-(4)C-P
100, 110, or 120 VAC M22N-BP-(2)(2)A-(4)D
M22N-BP-(2)(2)A-(4)D-P
200, 220, 230, or 240 VAC M22N-BP-(2)(2)A-(4)E
M22N-BP-(2)(2)A-(4)E-P
Plastic semi-
spherical
3451_lu_4_3
6 VAC/DC M22N-BG-(2)(2)A-(4)A
M22N-BG-(2)(2)A-(4)A-P
12 VAC/DC M22N-BG-(2)(2)A-(4)B
M22N-BG-(2)(2)A-(4)B-P
24 VAC/DC M22N-BG-(2)(2)A-(4)C
M22N-BG-(2)(2)A-(4)C-P
100, 110, or 120 VAC M22N-BG-(2)(2)A-(4)D
M22N-BG-(2)(2)A-(4)D-P
200, 220, 230, or 240 VAC M22N-BG-(2)(2)A-(4)E
M22N-BG-(2)(2)A-(4)E-P
Plastic flat
etched
3451_lu_4_4
6 VAC/DC M22N-BC-(2)(2)A-(4)A
M22N-BC-(2)(2)A-(4)A-P
12 VAC/DC M22N-BC-(2)(2)A-(4)B
M22N-BC-(2)(2)A-(4)B-P
24 VAC/DC M22N-BC-(2)(2)A-(4)C
M22N-BC-(2)(2)A-(4)C-P
100, 110, or 120 VAC M22N-BC-(2)(2)A-(4)D
M22N-BC-(2)(2)A-(4)D-P
200, 220, 230, or 240 VAC M22N-BC-(2)(2)A-(4)E
M22N-BC-(2)(2)A-(4)E-P

Note: Normally, the Indicator Unit and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Indicator Unit and yellow LED. M22N-B[]-TWA-Y[]-[]
