FHV7 Series

Smart Camera

FHV7 Series

Ultimate flexibility to fit ever-changing production scene

Model Number Structure

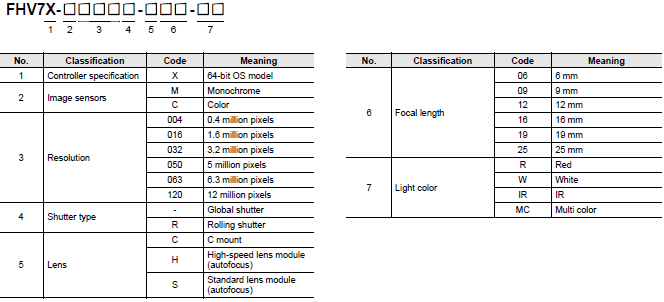

FHV7 Series Model Number Legend

Use this legend when determining the product specifications from the model number. When ordering, use a model number from the table in Ordering Information.

FHV7 Series Lineup 2

Configuration

For the Smart Camera FHV7 series, there are five configurations below by module combinations.

Smart camera Lens Internal
lighting
Protective
structure
Integrated
model
Appearance Configura-
tion
0.4 million pixels
1.6 million pixels
3.2 million pixels
5 million pixels
6.3 million pixels
12 million pixels
FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]050-[]
FHV7H-[]063R-[]
FHV7H-[]120R-[]
C mount
lens
3Z4SLE
SV-[][][][]V
3Z4SLE
SV-[][][][]H
N/A IP40 FHV7H-
[][][][][]-C
3740_lu_2_1 C mount
lens/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-S
FHV-XHD-L
N/A 3740_lu_2_2 C mount
lens/IP67
0.4 million pixels
1.6 million pixels
3.2 million pixels
6.3 million pixels
FHV7H-[]004-[]
FHV7H-[]016-[]
FHV7H-[]032-[]
FHV7H-[]063R-[]
FHV lens
module
FHV-LEM-
H[][]
FHV-LEM-
S[][]
N/A IP40 FHV7H-
[][][][][]-
H[][]
FHV7H-
[][][][][]-
S[][]
3740_lu_2_3 Lens
module/IP40
IP67

Waterproof
Hoods
required
FHV-XHD-LEM
N/A 3740_lu_2_4 Lens
module/IP67
FHV-
LTM-[][]
IP67 FHV7H-
[][][][][]-
H[][]-[][]
FHV7H-
[][][][][]-
S[][]-[][]
3740_lu_2_5 Lens module
/Internal
lighing - IP67

Ordering Information

Smart Cameras

C Mount Models

Item Resolution Model
Color Monochrome
3740_lu_3_1 0.4 million pixels FHV7H-C004-C FHV7H-M004-C
1.6 million pixels FHV7H-C016-C FHV7H-M016-C
3.2 million pixels FHV7H-C032-C FHV7H-M032-C
5 million pixels FHV7H-C050-C FHV7H-M050-C
6.3 million pixels FHV7H-C063R-C FHV7H-M063R-C
12 million pixels FHV7H-C120R-C FHV7H-M120R-C

Lens Modules

Item Focal length * Model
3740_lu_4_1 High-speed lens
module
(Autofocus)
6 mm FHV-LEM-H06
19 mm FHV-LEM-H19
3740_lu_4_2 Standard lens
module
(Autofocus)
6 mm FHV-LEM-S06
9 mm FHV-LEM-S09
12 mm FHV-LEM-S12
16 mm FHV-LEM-S16
25 mm FHV-LEM-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).
Note: Refer to the Vision Accessory Catalog (Cat No. Q198) for details on C-mount lenses.

Lighting Modules

Item Light color Model
3740_lu_5_1 Multi color FHV-LTM-MC
3740_lu_5_2 Red FHV-LTM-R
3740_lu_5_3 White FHV-LTM-W
3740_lu_5_4 IR FHV-LTM-IR

All-in-one Models with Lens Module

Item Resolution Lens Focal length Model
Color Monochrome
3740_lu_6_1 0.4 million pixels High-speed
lens module
(autofocus)
6 mm FHV7H-C004-H06 FHV7H-M004-H06
19 mm FHV7H-C004-H19 FHV7H-M004-H19
Standard
lens module
(autofocus)
6 mm FHV7H-C004-S06 FHV7H-M004-S06
9 mm FHV7H-C004-S09 FHV7H-M004-S09
12 mm FHV7H-C004-S12 FHV7H-M004-S12
16 mm FHV7H-C004-S16 FHV7H-M004-S16
25 mm FHV7H-C004-S25 FHV7H-M004-S25
1.6 million pixels High-speed
lens module
(autofocus)
6 mm FHV7H-C016-H06 FHV7H-M016-H06
19 mm FHV7H-C016-H19 FHV7H-M016-H19
Standard
lens module
(autofocus)
6 mm FHV7H-C016-S06 FHV7H-M016-S06
9 mm FHV7H-C016-S09 FHV7H-M016-S09
12 mm FHV7H-C016-S12 FHV7H-M016-S12
16 mm FHV7H-C016-S16 FHV7H-M016-S16
25 mm FHV7H-C016-S25 FHV7H-M016-S25
3.2 million pixels High-speed
lens module
(autofocus)
6 mm FHV7H-C032-H06 FHV7H-M032-H06
19 mm FHV7H-C032-H19 FHV7H-M032-H19
Standard
lens module
(autofocus)
6 mm FHV7H-C032-S06 FHV7H-M032-S06
9 mm FHV7H-C032-S09 FHV7H-M032-S09
12 mm FHV7H-C032-S12 FHV7H-M032-S12
16 mm FHV7H-C032-S16 FHV7H-M032-S16
25 mm FHV7H-C032-S25 FHV7H-M032-S25
6.3 million pixels High-speed
lens module
(autofocus)
6 mm FHV7H-C063R-H06 FHV7H-M063R-H06
19 mm FHV7H-C063R-H19 FHV7H-M063R-H19
Standard
lens module
(autofocus)
6 mm FHV7H-C063R-S06 FHV7H-M063R-S06
9 mm FHV7H-C063R-S09 FHV7H-M063R-S09
12 mm FHV7H-C063R-S12 FHV7H-M063R-S12
16 mm FHV7H-C063R-S16 FHV7H-M063R-S16
25 mm FHV7H-C063R-S25 FHV7H-M063R-S25

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

All-in-one Models with Lens and Lighting Modules

Item Reso-
lution
Lens Focal
length
Light
color
Model
Color Monochrome
3740_lu_7_1 0.4 million
pixels
High-speed
lens module
(autofocus)
6 mm Multi color FHV7H-C004-H06-MC FHV7H-M004-H06-MC
Red --- FHV7H-M004-H06-R
White FHV7H-C004-H06-W FHV7H-M004-H06-W
IR --- FHV7H-M004-H06-IR
19 mm Multi color FHV7H-C004-H19-MC FHV7H-M004-H19-MC
Red --- FHV7H-M004-H19-R
White FHV7H-C004-H19-W FHV7H-M004-H19-W
IR --- FHV7H-M004-H19-IR
Standard
lens module
(autofocus)
6 mm Multi color FHV7H-C004-S06-MC FHV7H-M004-S06-MC
Red --- FHV7H-M004-S06-R
White FHV7H-C004-S06-W FHV7H-M004-S06-W
IR --- FHV7H-M004-S06-IR
9 mm Multi color FHV7H-C004-S09-MC FHV7H-M004-S09-MC
Red --- FHV7H-M004-S09-R
White FHV7H-C004-S09-W FHV7H-M004-S09-W
IR --- FHV7H-M004-S09-IR
12 mm Multi color FHV7H-C004-S12-MC FHV7H-M004-S12-MC
Red --- FHV7H-M004-S12-R
White FHV7H-C004-S12-W FHV7H-M004-S12-W
IR --- FHV7H-M004-S12-IR
16 mm Multi color FHV7H-C004-S16-MC FHV7H-M004-S16-MC
Red --- FHV7H-M004-S16-R
White FHV7H-C004-S16-W FHV7H-M004-S16-W
IR --- FHV7H-M004-S16-IR
25 mm Multi color FHV7H-C004-S25-MC FHV7H-M004-S25-MC
Red --- FHV7H-M004-S25-R
White FHV7H-C004-S25-W FHV7H-M004-S25-W
IR --- FHV7H-M004-S25-IR
1.6 million
pixels
High-speed
lens module
(autofocus)
6 mm Multi color FHV7H-C016-H06-MC FHV7H-M016-H06-MC
Red --- FHV7H-M016-H06-R
White FHV7H-C016-H06-W FHV7H-M016-H06-W
IR --- FHV7H-M016-H06-IR
19 mm Multi color FHV7H-C016-H19-MC FHV7H-M016-H19-MC
Red --- FHV7H-M016-H19-R
White FHV7H-C016-H19-W FHV7H-M016-H19-W
IR --- FHV7H-M016-H19-IR
Standard
lens module
(autofocus)
6 mm Multi color FHV7H-C016-S06-MC FHV7H-M016-S06-MC
Red --- FHV7H-M016-S06-R
White FHV7H-C016-S06-W FHV7H-M016-S06-W
IR --- FHV7H-M016-S06-IR
9 mm Multi color FHV7H-C016-S09-MC FHV7H-M016-S09-MC
Red --- FHV7H-M016-S09-R
White FHV7H-C016-S09-W FHV7H-M016-S09-W
IR --- FHV7H-M016-S09-IR
12 mm Multi color FHV7H-C016-S12-MC FHV7H-M016-S12-MC
Red --- FHV7H-M016-S12-R
White FHV7H-C016-S12-W FHV7H-M016-S12-W
IR --- FHV7H-M016-S12-IR
16 mm Multi color FHV7H-C016-S16-MC FHV7H-M016-S16-MC
Red --- FHV7H-M016-S16-R
White FHV7H-C016-S16-W FHV7H-M016-S16-W
IR --- FHV7H-M016-S16-IR
25 mm Multi color FHV7H-C016-S25-MC FHV7H-M016-S25-MC
Red --- FHV7H-M016-S25-R
White FHV7H-C016-S25-W FHV7H-M016-S25-W
IR --- FHV7H-M016-S25-IR
3.2 million
pixels
High-speed
lens module
(autofocus)
6 mm Multi color FHV7H-C032-H06-MC FHV7H-M032-H06-MC
Red --- FHV7H-M032-H06-R
White FHV7H-C032-H06-W FHV7H-M032-H06-W
IR --- FHV7H-M032-H06-IR
19 mm Multi color FHV7H-C032-H19-MC FHV7H-M032-H19-MC
Red --- FHV7H-M032-H19-R
White FHV7H-C032-H19-W FHV7H-M032-H19-W
IR --- FHV7H-M032-H19-IR
Standard
lens module
(autofocus)
6 mm Multi color FHV7H-C032-S06-MC FHV7H-M032-S06-MC
Red --- FHV7H-M032-S06-R
White FHV7H-C032-S06-W FHV7H-M032-S06-W
IR --- FHV7H-M032-S06-IR
9 mm Multi color FHV7H-C032-S09-MC FHV7H-M032-S09-MC
Red --- FHV7H-M032-S09-R
White FHV7H-C032-S09-W FHV7H-M032-S09-W
IR --- FHV7H-M032-S09-IR
12 mm Multi color FHV7H-C032-S12-MC FHV7H-M032-S12-MC
Red --- FHV7H-M032-S12-R
White FHV7H-C032-S12-W FHV7H-M032-S12-W
IR --- FHV7H-M032-S12-IR
16 mm Multi color FHV7H-C032-S16-MC FHV7H-M032-S16-MC
Red --- FHV7H-M032-S16-R
White FHV7H-C032-S16-W FHV7H-M032-S16-W
IR --- FHV7H-M032-S16-IR
25 mm Multi color FHV7H-C032-S25-MC FHV7H-M032-S25-MC
Red --- FHV7H-M032-S25-R
White FHV7H-C032-S25-W FHV7H-M032-S25-W
IR --- FHV7H-M032-S25-IR
6.3 million
pixels
High-speed
lens module
(autofocus)
6 mm Multi color FHV7H-C063R-H06-MC FHV7H-M063R-H06-MC
Red --- FHV7H-M063R-H06-R
White FHV7H-C063R-H06-W FHV7H-M063R-H06-W
IR --- FHV7H-M063R-H06-IR
19 mm Multi color FHV7H-C063R-H19-MC FHV7H-M063R-H19-MC
Red --- FHV7H-M063R-H19-R
White FHV7H-C063R-H19-W FHV7H-M063R-H19-W
IR --- FHV7H-M063R-H19-IR
Standard
lens module
(autofocus)
6 mm Multi color FHV7H-C063R-S06-MC FHV7H-M063R-S06-MC
Red --- FHV7H-M063R-S06-R
White FHV7H-C063R-S06-W FHV7H-M063R-S06-W
IR --- FHV7H-M063R-S06-IR
9 mm Multi color FHV7H-C063R-S09-MC FHV7H-M063R-S09-MC
Red --- FHV7H-M063R-S09-R
White FHV7H-C063R-S09-W FHV7H-M063R-S09-W
IR --- FHV7H-M063R-S09-IR
12 mm Multi color FHV7H-C063R-S12-MC FHV7H-M063R-S12-MC
Red --- FHV7H-M063R-S12-R
White FHV7H-C063R-S12-W FHV7H-M063R-S12-W
IR --- FHV7H-M063R-S12-IR
16 mm Multi color FHV7H-C063R-S16-MC FHV7H-M063R-S16-MC
Red --- FHV7H-M063R-S16-R
White FHV7H-C063R-S16-W FHV7H-M063R-S16-W
IR --- FHV7H-M063R-S16-IR
25 mm Multi color FHV7H-C063R-S25-MC FHV7H-M063R-S25-MC
Red --- FHV7H-M063R-S25-R
White FHV7H-C063R-S25-W FHV7H-M063R-S25-W
IR --- FHV7H-M063R-S25-IR

* For the focal length and horizontal field of view, refer to specifications and optical charts of the lens module (Catalog).

Optical Filters

Item Model
3740_lu_8_1 Polarization Filter For visible light FHV-XPL
3740_lu_8_2 Polarization Filter For both infrared light and visible light FHV-XPL-IR
3740_lu_8_3 Diffusion Filter FHV-XDF

Waterproof Hoods

Required to ensure IP67 protection without using a lighting module.

Item Model
3740_lu_9_1 Waterproof Hood for Lens Modules FHV-XHD-LEM
3740_lu_9_2 Waterproof Hood for C-mount Lens (Short) *1 FHV-XHD-S
3740_lu_9_3 Waterproof Hood for C-mount Lens (Long) *2 FHV-XHD-L

*1. Can be used with the following lenses.
      3Z4S-LE SV-0614V, 3Z4S-LE SV-0813V, 3Z4S-LE SV-1214V, 3Z4S-LE SV-1614V, 3Z4S-LE SV-2514V
*2. Can be used with the following lenses.
      3Z4S-LE SV-0614H, 3Z4S-LE SV-0814H, 3Z4S-LE SV-1214H, 3Z4S-LE SV-1614H,
      3Z4S-LE SV-2514H, 3Z4S-LE SV-3514H, 3Z4S-LE SV-5014H

Cables

Item Cable length Model
3740_lu_10_1 I/O Cable (Bend Resistant) *1 2m FHV-VDB 2M
3m FHV-VDB 3M
5m FHV-VDB 5M
10m FHV-VDB 10M
20m FHV-VDB 20M
3740_lu_10_2 I/O Cable (Bend Resistant, Right-angle) *1 2m FHV-VDLB 2M
3m FHV-VDLB 3M
5m FHV-VDLB 5M
10m FHV-VDLB 10M
20m FHV-VDLB 20M
3740_lu_10_3 I/O Cable (Super Bend Resistant) *1, *2 2m FHV-VDBX 2M
3m FHV-VDBX 3M
5m FHV-VDBX 5M
10m FHV-VDBX 10M
3740_lu_10_4 I/O Cable (Super Bend Resistant, Right-angle) *1, *2 2m FHV-VDLBX 2M
3m FHV-VDLBX 3M
5m FHV-VDLBX 5M
10m FHV-VDLBX 10M
3740_lu_10_5 Ethernet Cable (Bend Resistant) 2m FHV-VNB 2M
3m FHV-VNB 3M
5m FHV-VNB 5M
10m FHV-VNB 10M
20m FHV-VNB 20M
3740_lu_10_6 Ethernet Cable (Bend Resistant, Right-angle) 2m FHV-VNLB 2M
3m FHV-VNLB 3M
5m FHV-VNLB 5M
10m FHV-VNLB 10M
20m FHV-VNLB 20M
3740_lu_10_7 Ethernet Cable (Super Bend resistant) *2 2m FHV-VNBX 2M
3m FHV-VNBX 3M
5m FHV-VNBX 5M
10m FHV-VNBX 10M
3740_lu_10_8 Ethernet Cable (Super Bend resistant, Right-angle) *2 2m FHV-VNLBX 2M
3m FHV-VNLBX 3M
5m FHV-VNLBX 5M
10m FHV-VNLBX 10M
3740_lu_10_9 External Light Conversion Cable for MDMC Light 0.1m FHV-VFLX-GD

*1. The FHV-VDB/VDLB/VDBX/VDLBX I/O Cable cannot be connected when the smart camera data unit is used.
     Use the FHV-VUB/VULB/VUBX/VULBX Smart Camera Data Unit Cable.
*2. The Super Bend Resistant cables (FHV-VN[]BX, FHV-VD[]BX) do not protect against water.
     (If using them, the IP Protection level for the smart camera will not be IP67, but rather IP60.)
     If protection against water is required, please use a Bend Resistant cable (FHV-VN[]B, FHV-VD[]B).

Smart Camera Data Unit

Item Model
3740_lu_14_1 Paralle linterface FHV-SDU10
3740_lu_14_2 EtherCAT interface FHV-SDU30

Smart Camera Data Unit Cable

Item Cable length Model
3740_lu_15_1 Smart Camera data unit cable(Bend resistant) *1 2m FHV-VUB 2M
3m FHV-VUB 3M
5m FHV-VUB 5M
10m FHV-VUB 10M
20m FHV-VUB 20M
3740_lu_15_2 Smart Camera data unit cable(Bend resistant, Right-angle) *1 2m FHV-VULB 2M
3m FHV-VULB 3M
5m FHV-VULB 5M
10m FHV-VULB 10M
20m FHV-VULB 20M
3740_lu_15_3 Smart Camera data unit cable(Super Bend resistant) *1, *3 2m FHV-VUBX 2M
3m FHV-VUBX 3M
5m FHV-VUBX 5M
10m FHV-VUBX 10M
3740_lu_15_4 Smart Camera data unit cable(Super Bend resistant, Right-angle)
*1, *3
2m FHV-VULBX 2M
3m FHV-VULBX 3M
5m FHV-VULBX 5M
10m FHV-VULBX 10M
3740_lu_15_5 Parallel I/O Cable 2m XW2Z-S013-2
5m XW2Z-S013-5
3740_lu_15_6 Parallel I/O Cable for Connector-terminal Conversion Unit
Connector-Terminal Block Conversion Units can be connected
(Terminal Blocks Recommended Products: OMRON XW2R-[]34G-T)
0.5m XW2Z-050EE
1m XW2Z-100EE
1.5m XW2Z-150EE
2m XW2Z-200EE
3m XW2Z-300EE
5m XW2Z-500EE
3740_lu_15_7 Connector-Terminal Block
Conversion Units, Generalpurpose
devices *2
Phillips screw --- XW2R-J34GD-T
Slotted screw (rise up) --- XW2R-E34GD-T
Push-in spring --- XW2R-P34GD-T

*1. The FHV-VDB/VDLB/VDBX/VDLBX I/O Cable cannot be connected when this cable is used.
*2. Refer to the XW2R Series catalog (Cat. No. G077) for details.
*3. The Super Bend Resistant cables (FHV-VU[]BX) do not protect against water.
     (If using them, the IP Protection level for the smart camera will not be IP67, but rather IP60.)
     If protection against water is required, please use a Bend Resistant cable (FHV-VU[]B).

Accessories

Item Model
3740_lu_11_1 Base Mount for Smart Cameras and Lighting Controllers FHV-XMT-7
3740_lu_11_2 Base Mount for Lighting Controllers FHV-XMT-7-TCC
3740_lu_11_3 Light Cover (for replacement) *1 FHV-XCV
3740_lu_11_4 Waterproof Cap (for replacement) for Ethernet Connecter FHV-XWC-ECN
3740_lu_11_5 for Light Connecter FHV-XWC-LCN
3740_lu_11_6 Waterproof Packing *2
(for replacement, 5 pcs)
for Camera FHV-XWP-CAM
3740_lu_11_7 for Lighting Module FHV-XWP-LTM
3740_lu_11_8 for Waterproof Hood FHV-XWP-HD-SL
3740_lu_11_9 Light-shielding for Lighting Module (for replacement, 3 pcs) *3 FHV-XLS-LTM
3740_lu_11_10 Cover for High-speed Lens Module
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece))
FHV-XFC-LEM-H
3740_lu_11_11 Cover for Standard Lens Module
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece))
FHV-XFC-LEM-S
3740_lu_11_12 Cover for C-mount Lens
(for replacement, cover 1pcs, screws 5 pcs (including one spare piece))
FHV-XFC-C
--- Screw for microSD card cover (for replacement, 10 pcs) FHV-XSCR-MSD

*1. Adapted lighting module
     FHV-LTM-W, FHV-LTM-R, FHV-LTM-IR, FHV-LTM-MC
*2. Always replace when a module is removed.
*3. It is considered a consumable item that will deteriorate. Please replace as needed.

Accessories

Item Descriptions Model
--- External Lights External lighting controller LED FLV Series
High-brightness LED FL-BR/DR Series
3740_lu_12_1 Industrial Switching Hubs
for EtherNet/IP and
Ethernet
3 port Failure detection: None Current consumption:
0.22 A or less
W4S1-03B
3740_lu_12_2 5 port Failure detection: None Current consumption:
0.22 A or less
W4S1-05B
5 port Failure detection: Supported W4S1-05C

Lenses

Refer to the Vision Accessory Catalog (Cat. No. Q198) for details.

Resolution Camera Model Size of image
element
Recommended lens
Standard
Lens
Telecentric
Lens
Vibrations and Shocks
Resistant Lens
0.4 million-pixel FHV7H-[]004 1/2.9” equivalent SV-V Series VS-TCH Series VS-MCA Series
Non-telecentric Macro
VS-MC Series
1.6 million-pixel FHV7H-[]016 1/2.9” equivalent
3.2 million-pixel FHV7H-[]032 1/1.8” equivalent SV-H Series
5 million-pixel FHV7H-[]060 2/3” equivalent
6.3 million-pixel FHV7H-[]063R 1/1.8” equivalent
12 million-pixel FHV7H-[]120R 1/1.7” equivalent

Recommended EtherCAT Communications Cables

Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.

Cable with Connectors

Item Appearance Recommended
manufacturer
Cable
length
(m)
Model
Cable with Connectors on Both Ends
(RJ45/RJ45)
Standard RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG26, 4-pair Cable
Cable Sheath material: LSZH *2
Cable color: Yellow *3
3740_lu_16_1 OMRON 0.3 XS6W-6LSZH8SS30CM-Y
0.5 XS6W-6LSZH8SS50CM-Y
1 XS6W-6LSZH8SS100CM-Y
2 XS6W-6LSZH8SS200CM-Y
3 XS6W-6LSZH8SS300CM-Y
5 XS6W-6LSZH8SS500CM-Y
Cable with Connectors on Both Ends
(RJ45/RJ45)
Rugged RJ45 plugs type *1
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Light blue
3740_lu_16_2 OMRON 0.3 XS5W-T421-AMD-K
0.5 XS5W-T421-BMD-K
1 XS5W-T421-CMD-K
2 XS5W-T421-DMD-K
5 XS5W-T421-GMD-K
10 XS5W-T421-JMD-K
Cable with Connectors on Both Ends
(M12 Straight/M12 Straight)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black
3740_lu_16_3 OMRON 0.5 XS5W-T421-BM2-SS
1 XS5W-T421-CM2-SS
2 XS5W-T421-DM2-SS
3 XS5W-T421-EM2-SS
5 XS5W-T421-GM2-SS
10 XS5W-T421-JM2-SS
Cable with Connectors on Both Ends
(M12 Straight/RJ45)
Shield Strengthening Connector cable *4
M12/Smartclick Connectors
Rugged RJ45 plugs type
Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
Cable color: Black
3740_lu_16_4 OMRON 0.5 XS5W-T421-BMC-SS
1 XS5W-T421-CMC-SS
2 XS5W-T421-DMC-SS
3 XS5W-T421-EMC-SS
5 XS5W-T421-GMC-SS
10 XS5W-T421-JMC-SS

*1 Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m,
     3 m, 5 m, 7.5 m, 10 m, 15 m, 20 m.
     Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m,
     10 m, 15 m.
     For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2 The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
     Although the LSZH cable is single shielded, its communications and noise characteristics meet the standards.
*3 Cables colors are available in yellow, green, and blue.
*4 For details, contact your OMRON representative.

Cables / Connectors

Item Recommended
manufacturer
Model
Products for EtherCAT
(1000BASE-T/100BASE-TX)
Wire gauge and number of pairs:
AWG24, 4-pair cable
Cable Hitachi Metals, Ltd. NETSTAR-C5E SAB 0.5 x 4P CP *1
Kuramo Electric Co. KETH-SB *1
SWCC Showa Cable
Systems Co.
FAE-5004 *1
RJ45 Connector Panduit Corporation MPS588-C *1
Products for EtherCAT
(100BASE-TX/10BASE-T)
Wire gauge and number of pairs:
AWG22, 2-pair cable
Cable Kuramo Electric Co. KETH-PSB-OMR *2
JMACS Japan Co., Ltd. PNET/B *2
RJ45 Assembly
Connector
3740_lu_17_1
OMRON XS6G-T421-1 *2

*1 We recommend you to use the above Cable and RJ45 Connector together.
*2 We recommend you to use the above Cable and RJ45 Assembly Connector together.

Touch Panel Monitor

Ask Advantech about the warranty period and coverage of this product.

Item Model Recommended manufacturer
3740_lu_18_1 Touch Panel Monitor PPC-3100S-OMR Advantech
Find your local office on the Advantech website
https://www.advantech.com/contact/offices/
ARM VESA Standard
(A-CLEVER) for PPC Series
PPC-ARM-A03
Wall mount kit for PPC Series PPC-174T-WL-MTE
Stand for PPC Series PPC-Stand-A1E
ADP A/D 100-240V 90W 19V W/PFC 96PSA-A90W19OT-1
Power cord 3P UL 10 A 125 V 1.8 m 1700001524
Power cord 3P Europe
(WS-010+083) 1.83 m
170203183C
Power cord 3P/3P PSE 1.8 m 1700008921
Power cord 3P CCC (China) 1.8 m 96CB-POWER-B-1.8M

Recommended Industrial Touch Panel IPC/ Monitor
If you require a more industrial solution or larger screensizes, our FHV7 smart camera's work perfect with Omron's Industrial PC systems (e.g. NYP-series)
Find your preferred Industrial PC systems at: NYP

Automation Software Sysmac Studio

Please purchase a DVD and licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually. The license does not include the DVD.

Item Specifications Model
Number of
licenses
Media
Sysmac
Studio
Standard
Edition
Ver.1.[][]
The Sysmac Studio is the software that provides an
integrated environment for setting, programming,
debugging and maintenance of machine automation
controllers including the NJ/NX-series CPU Units,
NY-series Industrial PC, EtherCat Slave, and the HMI.
Sysmac Studio runs on the following OS.
Windows 7 (32-bit/64-bit version) /
Windows 8 (32-bit/64-bit version) /
Windows 8.1 (32-bit/64-bit version) /
Windows 10 Pro (32/64bit) or Enterprise (32/64bit)
This software provides functions of the Vision Edition.
Refer to your local OMRON website for details such as
supported models and functions.
--
(Media only)
DVD
*1
SYSMAC-SE200D
1 license
*2
--- SYSMAC-SE201L
Sysmac
Studio
Vision
Edition
Ver.1.[][]
*3
Sysmac Studio Vision Edition is a limited license that
provides selected functions required for Vision Sensor
FH-series/Smart Camera FHV7-series/FQ-M-series
settings.
1 license --- SYSMAC-VE001L

*1. The same media is used for both the Standard Edition and the Vision Edition.
*2. Multi licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
*3. This product is a license only. You need the Sysmac Studio Standard Edition DVD media to install it.
