E3X-DA-N

Digital Fiber Amplifier

E3X-DA-N

The Ultimate Fiber Amplifier for Maximum Ease of Use and High Performance

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 12, 2012

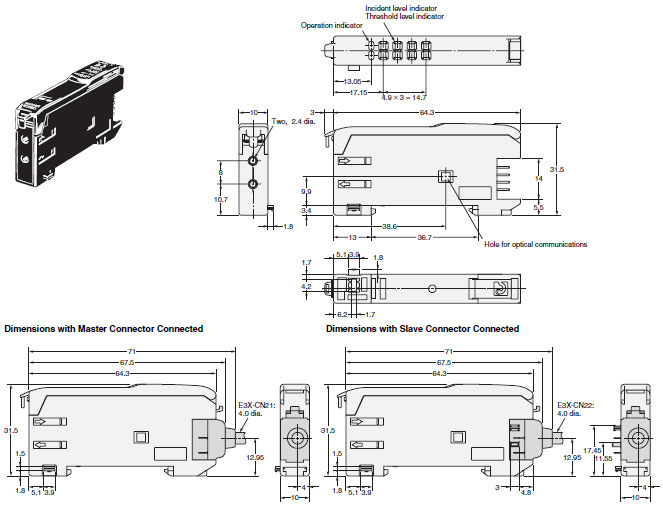

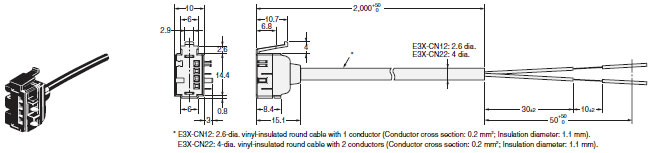

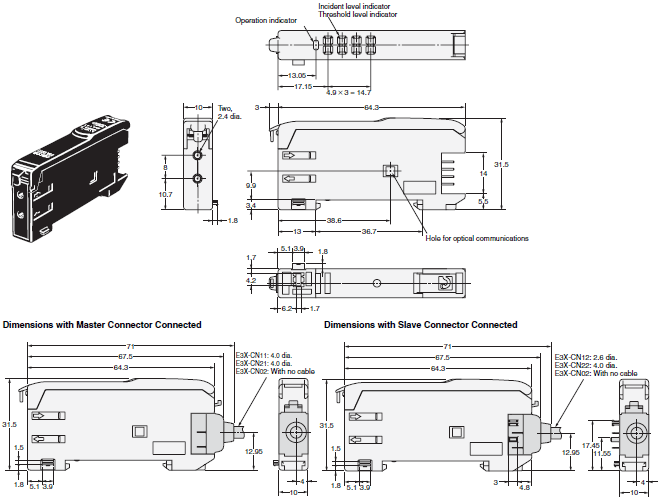

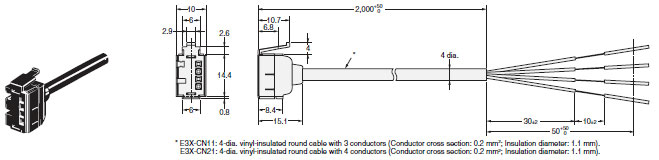

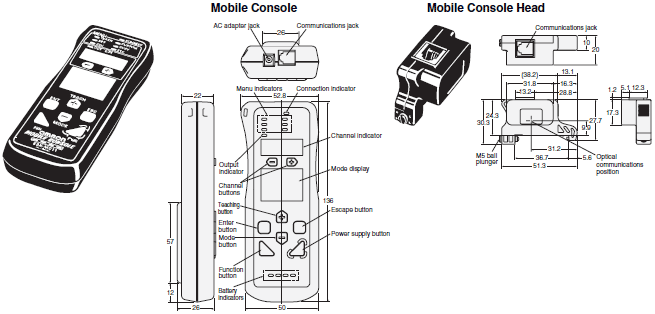

(Unit: mm)

Unless otherwise specified, the tolerance class IT16 is used for dimensions in this data sheet.

Pre-wired Amplifiers
E3X-DA11-N, E3X-DAG11-N, E3X-DA21-N E3X-DAH11-N, E3X-DAB11-N, E3X-DAB41-N
E3X-DA41-N, E3X-DAG41-N, E3X-DA51-N E3X-DAH41-N, E3X-DA11D

*1. The Mounting Bracket can also be used on side A.
*2. E3X-DA11-N/DA41-N/DAB11-N: 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2
mm²;
Insulationdiameter: 1.1 mm).
Standard length: 2 m.
E3X-DA21-N/DA51-N: 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm²;
Insulation diameter:1.1 mm).
Standard length: 2 m.
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted
side by side.

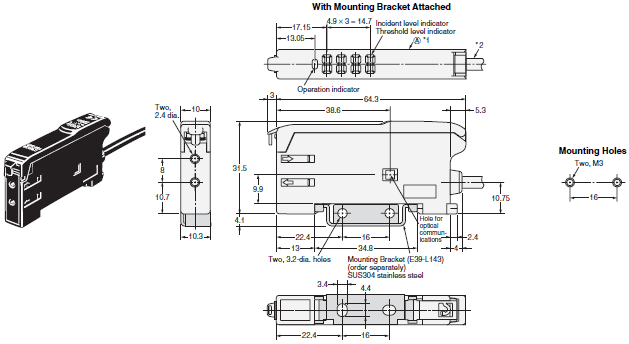

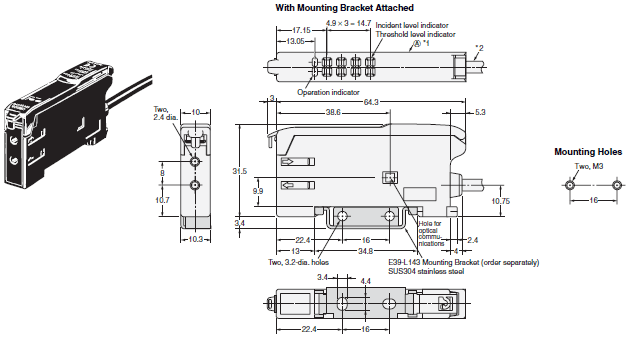

Pre-wired Amplifiers, Water-resistant Models
E3X-DA11V
E3X-DA41V

*1. The Mounting Bracket can also be used on side A.
*2. 4-dia. vinyl-insulated round cable with 3 conductors (Conductor cross section: 0.2 mm²;
Insulation diameter: 1.1 mm).
Standard length: 2 m.

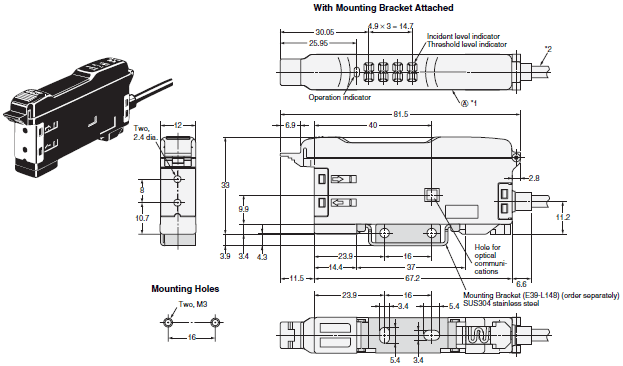

Pre-wired Amplifiers, Twin-output Models
E3X-DA11TW
E3X-DA41TW

*1. The Mounting Bracket can also be used on side A.
*2. 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm2;
Insulation diameter: 1.1 mm).
Standard length: 2 m.
Note: When using E39-L143 Mounting Brackets, there will be small gaps between the Amplifier Units if they are mounted
side by side.
