Industrial Automation

M2P

Indicators

M2P

Large Rectangular-bodied Indicators

last update: April 3, 2023

Model Number Structure

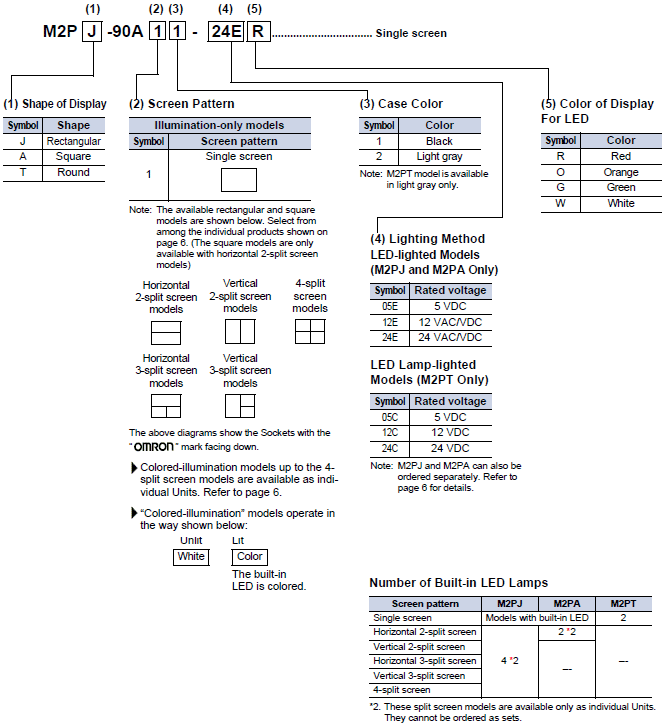

Model Number Legend

The model numbers used to order sets of Units are illustrated below. One set comprises the Display, Lamp, and Socket.
For information on combinations, refer to Ordering Information.

Ordering Information

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Display, Lamp, and Socket. Not all combinations are possible. Ask your OMRON representative for details.

M2PJ (Rectangular) Single Screen Models

Case color		Black	Light gray	Display color symbol
LED	5 VDC	M2PJ-90A11-05E(1)	M2PJ-90A12-05E(1)	R O G W
	12 VAC/VDC	M2PJ-90A11-12E(1)	M2PJ-90A12-12E(1)
	24 VAC/VDC	M2PJ-90A11-24E(1)	M2PJ-90A12-24E(1)
Chameleon	24 VDC	M2PJ-90AG1-24EK	M2PJ-90AG2-24EK	*

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

* You can change the screen colors of chameleon models between red, green, and orange by changing the terminal wiring. Refer to Data Sheet for details.

M2PA (Square) Single Screen Models

Case color		Black	Light gray	Display color symbol
LED	5 VDC	M2PA-90A11-05E(1)	---	R O G W
	12 VAC/VDC	M2PA-90A11-12E(1)	M2PA-90A12-12E(1)
	24 VAC/VDC	M2PA-90A11-24E(1)	M2PA-90A12-24E(1)
Chameleon	24 VDC	M2PA-90AG1-24EK	M2PA-90AG2-24EK	*

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

* You can change the screen colors of chameleon models between red, green, and orange, by changing the terminal wiring. Refer to Data Sheet for details.

M2PT (Round) Single Screen Models

Case color		Light gray	Display color symbol
LED lamp	24 VDC	M2PT-90A12-24C(1)	R O G W

Note: Enter the desired color symbol for the Display in (1). (R) = Red, (O) = Orange, (G) = Green, (W) = White.

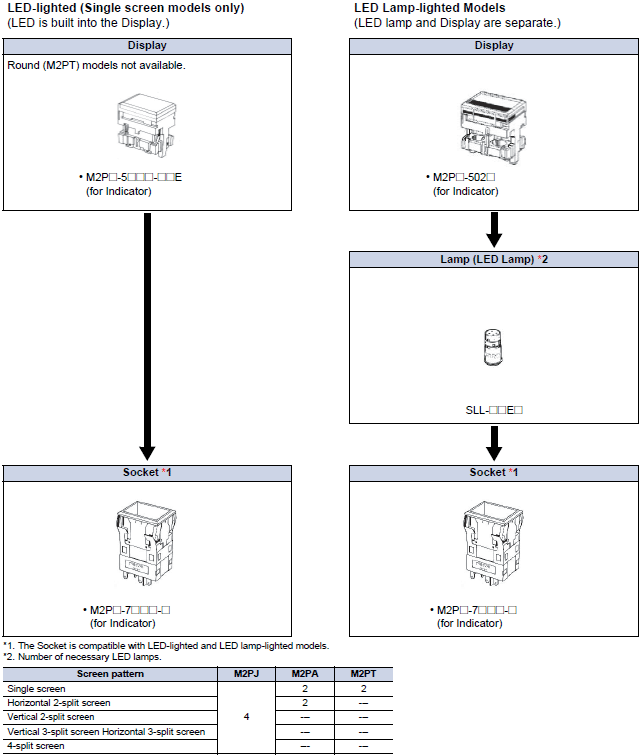

Ordering Individually

Displays, Lamps, and Sockets can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.

Display

LED-lighted Models (LED is built-in.)

Not all combinations are possible. Ask your OMRON representative for details.

Appearance	Split-screen color (color symbol)		White (W)	Red (R)	Green (G)	Orange (O)	Selection precautions
Rectangular models	Single screen		M2PJ-5701 -[][]E	M2PJ-5702 -[][]E	M2PJ-5703 -[][]E	M2PJ-5706 -[][]E	Enter the voltage to be used in the [][] at the end of the model number. Examples of voltage used: For the color of the shaded part, select the model according to the colors given at the top of the table.
Square models	Single screen		M2PA-5701 -[][]E	M2PA-5702 -[][]E	M2PA-5703 -[][]E	M2PA-5706 -[][]E

Note: 1. A cap, legend plate (transparent), colored plate, white plunger case, and LED (with a current-limiting resistor) are
built into the standard lighting unit.
2. Split-screen coloring configurations are given with the "OMRON" mark on the Sockets facing down.

LED Lamp-lighted Models (LED is not built-in.)

Model	Rectangular models		Square models		Round models		Selection precautions
Screen pattern	Screen	Model	Screen	Model	Screen	Model	Selection precautions
Single screen		M2PJ-5021		M2PA-5021		M2PT-5021	Colored plates (white, red, green, and orange), a legend plate (transparent), and a light baffle (split-screen models only) are included. Use the appropriate combination for the LED coloring required. The number of white colored plates required to enable colored illumination for the corresponding screen-split configuration is included. (For example, 4-split screen models include 4 white colored plates). The number of colored plates included for each model are shown in the following table.
Horizontal 2-split screen		M2PJ-5022		M2PA-5022	---
Vertical 2-split screen		M2PJ-5023	---		---
Horizontal 3-split screen		M2PJ-5024	---		---
4-split screen		M2PJ-5026	---		---

* The following types of colored plates are included with Horizontal and Vertical 3-splitScreen Switches.
　　White: One colored plate for a 2-split screen and two colored plates for a 4-split screen.
　　Red, green, or orange: One colored plate for a 2-split screen and one colored plates for a 4-split screen.

Chameleon Models (with Built-in LED)

Shape		Rated voltage	Chameleon indicator
Rectangular		24 VDC	M2PJ-5800-24E
Square		24 VDC	M2PA-5800-24E

Note: 1. With the chameleon models, the whole screen lights red, green, or orange (i.e., red and green simultaneously).
2. A cap, legend plate (transparent), white colored plate, and LED (with a current-limiting resistor) are built into the
Display.

Lamp

LED Lamp

Voltage	5 VDC	12 VDC	24 VDC	Applicable cap (color) (colored plate)	Selection precautions
Color	Model (DC only)	Model (DC only)	Model (DC only)	Applicable cap (color) (colored plate)	Selection precautions
Red	SLL-05ER	SLL-12ER	SLL-24ER	Red	In the standard setup, 4 LED lamps are used with M2PJ models and 2 LED lamps are used with M2PA and M2PT models.
Yellow	SLL-05EY	SLL-12EY	SLL-24EY	Orange
Green	SLL-05EG	SLL-12EG	SLL-24EG	Green
White	SLL-05EW	SLL-12EW	SLL-24EW	White

Socket

(LED-lighted models)

Rectangular	Square	Round	Selection precautions
Model	Model	Model	Selection precautions
M2PJ-7010-1	M2PA-7010-1	M2PT-7010-2	The end digit denotes the color of the flange: -1 denotes a black flange, and -2 denotes a light gray flange. Round switches are available only in light gray, and not in black.

last update: April 3, 2023
