Discontinued On Feb. 2022

E3C-LDA

Photoelectric Sensor with Separate Digital Amplifier (Laser-type)

E3C-LDA

Variable Laser Beam for Spot, Line, or Area Detection

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

Related Contents

last update: September 2, 2015

(Unit: mm)

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

Sensor Head

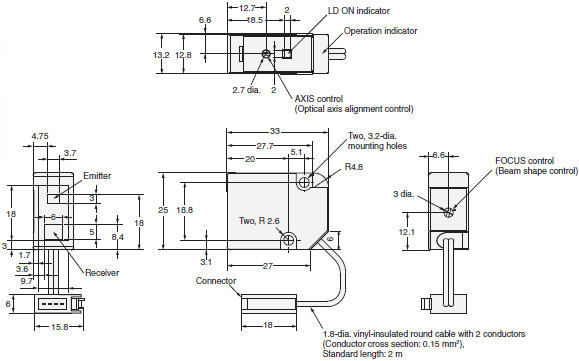

E3C-LD11

E3C-LDA Dimensions 3

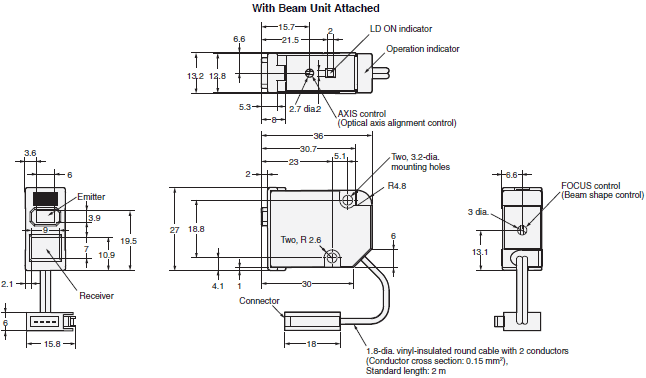

E3C-LD21
E3C-LD31

E3C-LDA Dimensions 4

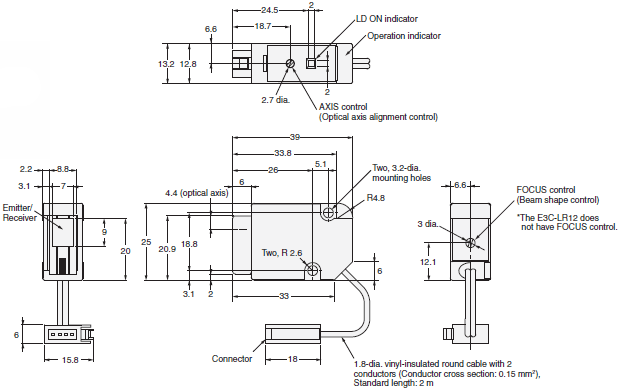

E3C-LR11/-LR12

E3C-LDA Dimensions 5

Amplifier Units

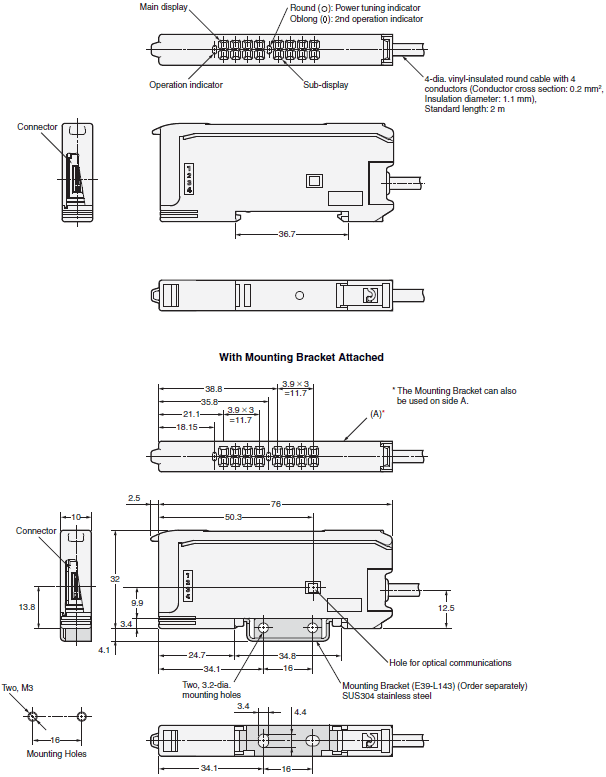

Pre-wired Amplifier Units
E3C-LDA11
E3C-LDA21
E3C-LDA41
E3C-LDA51
E3C-LDA11AT
E3C-LDA41AT
E3C-LDA11AN
E3C-LDA41AN

E3C-LDA Dimensions 7

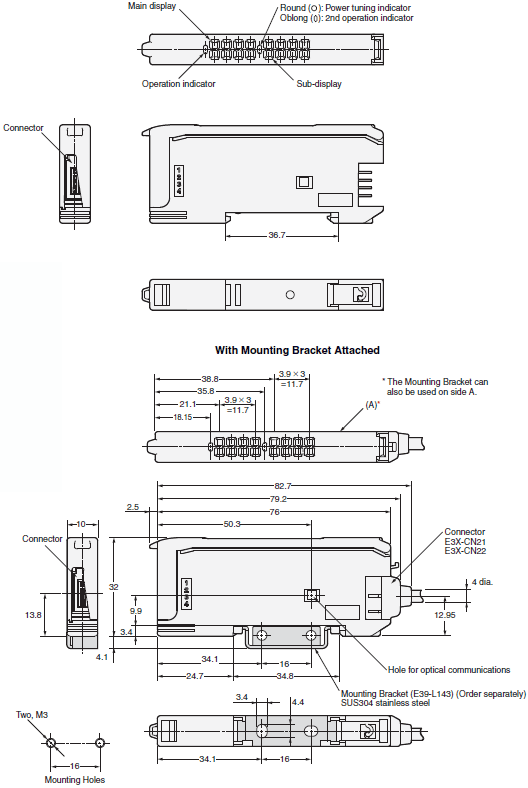

Amplifier Units with Wire-saving Connectors
E3C-LDA6
E3C-LDA7
E3C-LDA8
E3C-LDA9
E3C-LDA6AT
E3C-LDA8AT

E3C-LDA Dimensions 8

Amplifier Units with Wire-saving Connectors
E3C-LDA6
E3C-LDA7
E3C-LDA8
E3C-LDA9
E3C-LDA6AT
E3C-LDA8AT

E3C-LDA Dimensions 9

* Cable diameters are as follows:
    E3X-CN12 2.6 dia.
    E3X-CN22 4.0 dia.

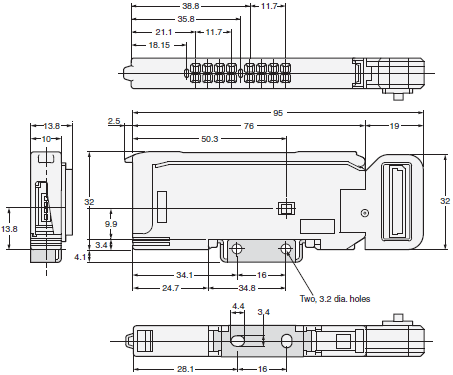

Amplifier Unit with Connector for Sensor Communications Unit
E3C-LDA0

E3C-LDA Dimensions 10
