SRT2-[]D08S

Sensor Terminals

SRT2-[]D08S

Connector Connection Models that Allows Easy Connection to Sensors and Output Devices

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: November 27, 2013

(Unit: mm)

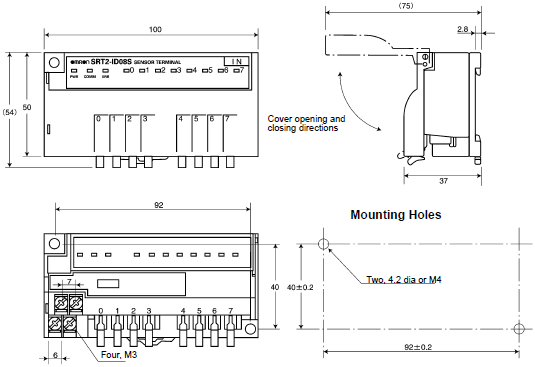

SRT2-ID08S

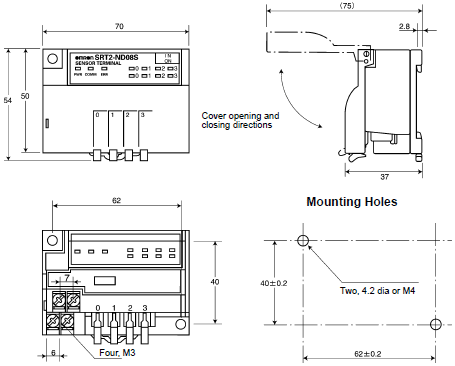

SRT2-ND08S

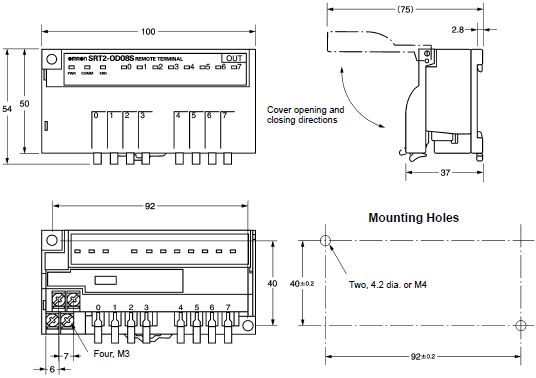

SRT2-OD08S

Cable Connector for SRT2-[]D08S

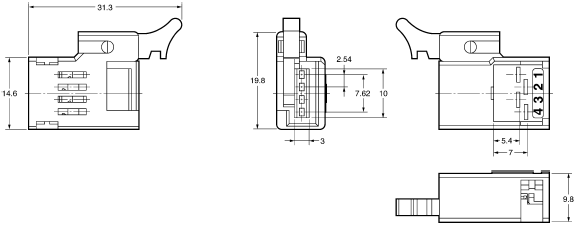

XS8A-044[] (Cable Connector)

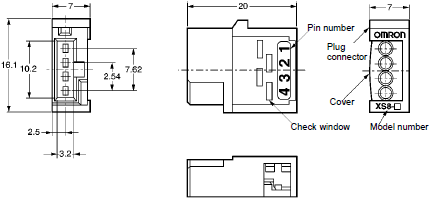

XS8B-0443 (Relay Socket)

Calculate the cable conductor size as explained below.
The following information is given on each sensor cable:
Cable dia. (Number of conductors/Conductor dia.)
Conductor size (mm²) = (Conductor dia./2)² x π x Number of conductors
Example: E3S-A
4 dia. (18/0.12)
Conductor size (mm²) = (0.12/2)² x 3.14 x 18 0.20
The conductor size is 0.2 mm². Therefore, use the XS8A-0442.
