VT-RNSII ptH
Desktop Portable PCB Inspection System
The Renowned Expertise of Omron Packed into a Desktop Unit
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: December 19, 2013
Easy to program and fully compatible from inspection through to repair
Powerful yet simple to use.
Desktop AOI keeps installation costs low.
The VT-RNS II ptH portable desktop PCB inspection system gives you the flexibility to meet the demands presented by high-mix/low-volume production. This second-generation model offers significant improvements in basic performance with reduced installation costs and easy-to-use program generation.
[Simple Program Generation]
So simple that anyone can create inspection programs
The easy-to-use Ez-Image Teaching (Ez-IT) inspection program generation system is equipped as a standard feature, enabling anyone to quickly and easily create inspection programs tailored to the PCB.

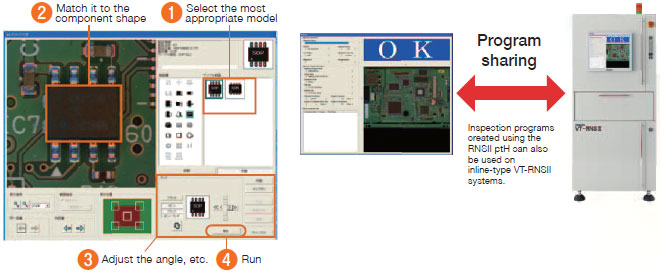

Automatic inspection program generation software
Ez-Image Teaching (Ez IT)
Makes it easy to create inspection programs in just four simple steps.
* Note that this is not supported for some PCBs.
Contact your Omron sales representative for details.
Contact your Omron sales representative for details.
[35% Faster]
Now faster than ever
Omron shortens post-reflow inspection tact time by up to 35% over previous models with improvements including increased image processing speed, a larger field of view, a more powerful CPU and faster sequencing.

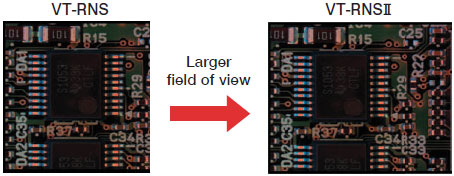

Larger field of view for faster processing
* Only for M-size post-reflow inspection systems. Effectiveness varies depending on the PCB inspected.
* Inspection speeds for post-printing and post-placement models are equivalent to conventional models.
[Omron High Precision]
Omron - The Pioneer in High-precision Inspection Systems
Omron pioneered the development of PCB inspection systems utilizing 3-CCD cameras and Color Highlight illumination technology. Our wide-ranging expertise in areas such as image processing and setting of judgment standards gives you a built-in advantage for high-precision inspection.

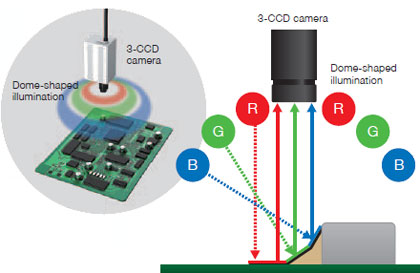

Color Highlight system
Omron's advanced Color Highlight system provides a method of obtaining accurate information on solder joint angles in the form of image data.
Accurate solder shape data that is unaffected by reflection brightness.
[Global Support]
World Class Engineering Support
Omron has built a global support organization for our customers with sales and service offices in some 70 locations covering the major manufacturing centers around the world. Regional coordination ensures consistent, high quality support where ever you choose to set up production. Services are tailored to your needs and include technical support and training in system setup, operations and maintenance.
[Software for process improvement]
Omron has the expertise to improve your production efficiency

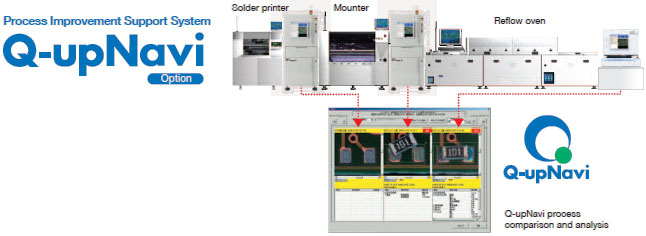

Q-upNAvi provides total support for process improvement, root cause defect analysis and countermeasure implementation.
By helping to visualize process conditions, Q-upNavi enables you to implement corrective procedures that will prevent future defects from occurring.
