E3X-ZD

Digital optical fiber sensor

E3X-ZD

The simplest E3X-ZD series Easy Operation for Anyone

Related Contents

last update: February 3, 2014

(Unit: mm)

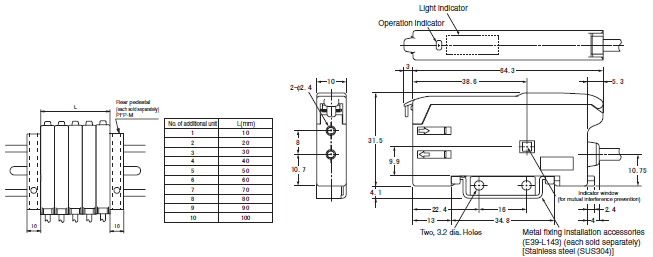

Amplifier unit

Pre-wired models

E3X-ZD11
E3X-ZD41

E3X-ZD Dimensions 2

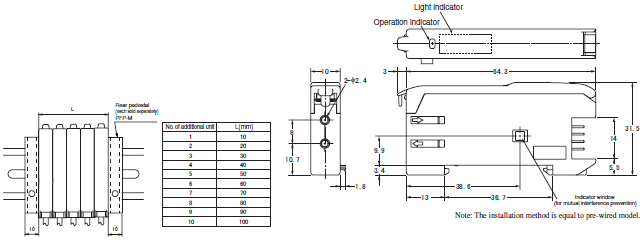

Connector models

E3X-ZD6
E3X-ZD8

E3X-ZD Dimensions 3

Simplified wiring connector units

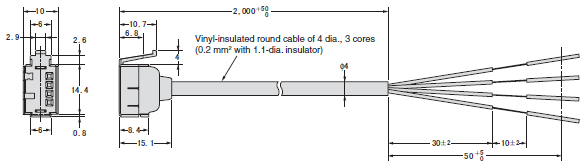

Female connectors

E3X-CN11

E3X-ZD Dimensions 5

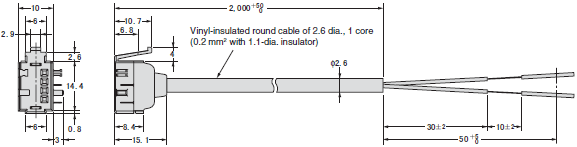

Sub-connectors

E3X-CN12

E3X-ZD Dimensions 6

last update: February 3, 2014
