D6FZ-FGT Series

Discontinued On Sep. 2023

D6FZ-FGT Series

Air Flow Sensor

D6FZ-FGT Series

The best Product to Measure Compressed Air at Machine. Measurement of Leakage and Usage.

* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.

last update: March 1, 2023

(Unit: mm)

Unspecified dimensions tolerances: Tolerance class IT16

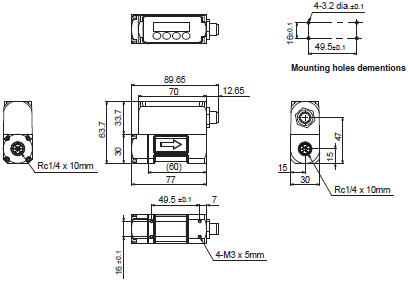

Air Flow Sensor

D6FZ-FGT200

D6FZ-FGT Series Dimensions 3

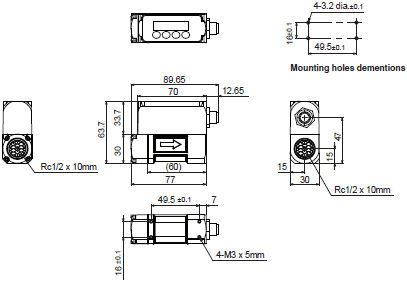

D6FZ-FGT500

D6FZ-FGT Series Dimensions 4

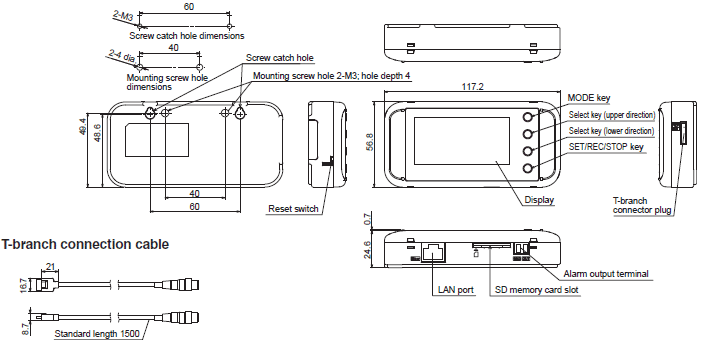

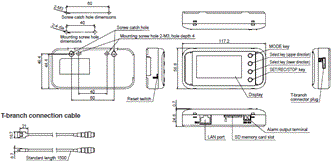

Air Flow Station

D6FZ-FGX21

D6FZ-FGT Series Dimensions 6

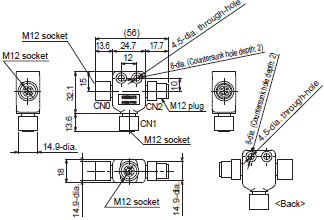

T-branch Connector

D6FZ-FC02

D6FZ-FGT Series Dimensions 8

Single-end wire cable

D6FZ-JD3A (L = 3 m)
D6FZ-JD10A (L = 10 m)
D6FZ-JD20A (L = 20 m)

D6FZ-FGT Series Dimensions 9

Double-end connector cable

D6FZ-JD3B (L = 3 m)
D6FZ-JD5B (L = 5 m)
D6FZ-JD10B (L = 10 m)
D6FZ-JD20B (L = 20 m)

D6FZ-FGT Series Dimensions 10

Mounting bracket

D6FZ-FC03

D6FZ-FGT Series Dimensions 12

last update: March 1, 2023
