Industrial Automation

Industrial Automation

NJ501-4[][][]

NJ-series NJ Robotics CPU Units

NJ501-4[][][]

New controller that covers functions and high-speed processing required for machine control and safety, reliability and maintainability that are the features of industrial controllers provides robot control function. In addition to robot control, general motion control with up to 64 axes can be also performed.

(Unit: mm)

CPU Units
NJ[]01-[][][][]

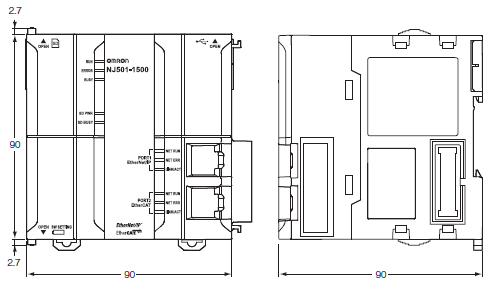

NJ501-4[][][] Dimensions 1

Power Supply Units
NJ-PA3001
NJ-PD300

NJ501-4[][][] Dimensions 2

End Cover (included with CPU Units)
CJ1W-TER01

NJ501-4[][][] Dimensions 3
