A22NS / A22NW

Selector Switches

A22NS / A22NW

22-mm dia. Knob-type Selector Switches. Control panel miniaturization through a more compact design and modified wiring direction. Addition of Push-In Plus terminal blocks for easy wiring.

(Unit: mm)

Lighted and Non-lighted Selection Switches

Two-position Switches with Plastic Bezels

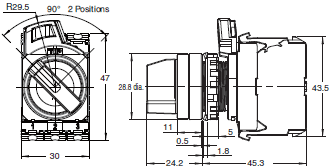

A22N[]-2B[]-[][]A-G

A22NS / A22NW Dimensions 2

A22N[]-2B[]-[][]A-P

A22NS / A22NW Dimensions 3

Three-position Switches with Plastic Bezels

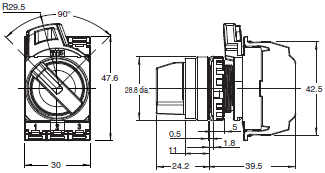

A22N[]-3B[]-[][]A-G

A22NS / A22NW Dimensions 4

A22N[]-3B[]-[][]A-P

A22NS / A22NW Dimensions 5

Two-position Switches with Brushed Metal Bezels

A22N[]-2M[]-[][]A-G

A22NS / A22NW Dimensions 6

A22N[]-2M[]-[][]A-P

A22NS / A22NW Dimensions 7

Three-position Switches with Brushed Metal Bezels

A22N[]-3M[]-[][]A-G

A22NS / A22NW Dimensions 8

A22N[]-3M[]-[][]A-P

A22NS / A22NW Dimensions 9

Depth with Linked Units

(Screw terminal block type)

A22NS / A22NW Dimensions 10

Depth when a double-contact unit is mounted

(Push-In Plus terminal block type)

A22NS / A22NW Dimensions 11

Subassemblies (Common)

LED Lamps

A22NZ-L-[][]

A22NS / A22NW Dimensions 13

Mounting Collar

A22NZ-H-01

A22NS / A22NW Dimensions 14

Screw terminal block

Contact Blocks

A22NZ-S-G1[]

A22NS / A22NW Dimensions 16

Lighting Units

A22NZ-T-[]

A22NS / A22NW Dimensions 17

Push-In Plus Terminal Blocks

Contact Blocks (Single Contact)

A22NZ-S-P1[]

A22NS / A22NW Dimensions 19

Contact Blocks (Double Contact)

A22NZ-S-P2[]

A22NS / A22NW Dimensions 20

Lighting Units

A22NZ-T-[]P

A22NS / A22NW Dimensions 21

Accessories and Tools

Protective Cover

A22NZ-A303

A22NS / A22NW Dimensions 23

Plastic Hole Plug

A22NZ-A-401

A22NS / A22NW Dimensions 24

Metal Hole Plug

A22NZ-A-402

A22NS / A22NW Dimensions 25

Lock Ring

A22NZ-A-403

A22NS / A22NW Dimensions 26

Lock Ring

A22NZ-A-50501

A22NS / A22NW Dimensions 27

Reinforcement Plate

A22NZ-A-C01

A22NS / A22NW Dimensions 28

Control Box

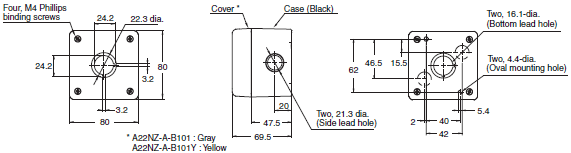

A22NZ-A-B101
A22NZ-A-B101Y

A22NS / A22NW Dimensions 29

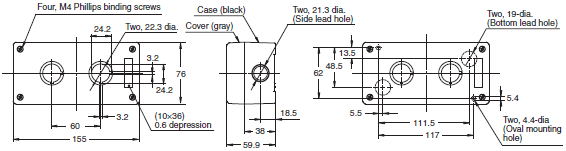

Control Box (2 holes)

A22NZ-A-B102

A22NS / A22NW Dimensions 30

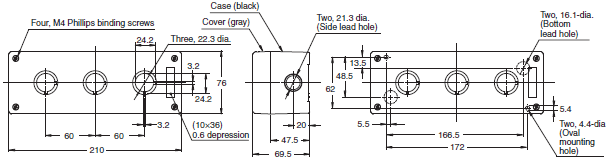

Control Box (3 holes)

A22NZ-A-B103

A22NS / A22NW Dimensions 31

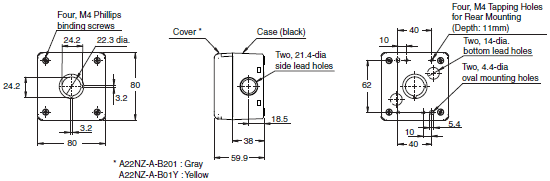

Control Box

A22NZ-A-B201
A22NZ-A-B01Y

A22NS / A22NW Dimensions 32

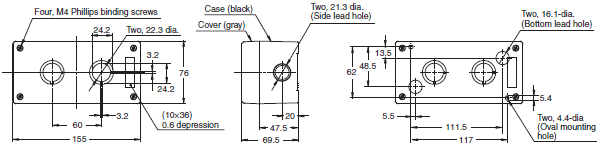

Control Box (2 holes)

A22NZ-A-B202

A22NS / A22NW Dimensions 33

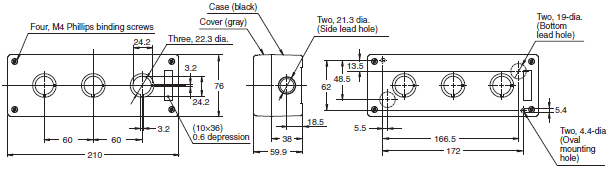

Control Box (3 holes)

A22NZ-A-B203

A22NS / A22NW Dimensions 34

Sealing cap

For Flat Models A22Z-3600F

A22NS / A22NW Dimensions 35

For projection models A22Z-3600T

A22NS / A22NW Dimensions 36

For full-guard models A22Z-3600G

A22NS / A22NW Dimensions 37

Resin Attachment for 30 dia.

A22Z-A30

A22NS / A22NW Dimensions 38

Legend Plate Frames

General A22NZ-A-50103

A22NS / A22NW Dimensions 39

Large A22NZ-A-51103

A22NS / A22NW Dimensions 40

Legend Plates

General A22Z-3443[]-[]

A22NS / A22NW Dimensions 41

Large A22Z-3453[]

A22NS / A22NW Dimensions 42

Tightening Wrench

A22NZ-A-301

A22NS / A22NW Dimensions 43

LED Lamp Extractor

A22NZ-A-302

A22NS / A22NW Dimensions 44

Cap Tightening Wrench

A22Z-3908

A22NS / A22NW Dimensions 45
