Industrial Automation

XW5T-P

DIN Track Push-in Terminal Blocks

XW5T-P

Our Value Design Products Increase the Value of Your Control Panels. Push-in Plus Terminal Blocks to Downsize Control Panels and Save Work.

last update: August 23, 2021

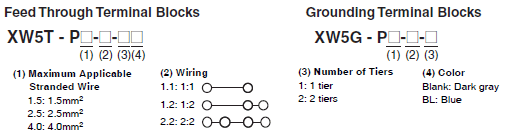

Model Number Legend

Ordering Information

Classification	Product Type	Applicable wire sizes * (mm²)	Number of levels	Number of cramp position per level	Color	Weight (gram)	Model
Feed Through Terminal Blocks	Standard terminals	0.08 to 1.5	1	2	Dark gray	3.3	XW5T-P1.5-1.1-1
		0.14 to 2.5	1	2		6.3	XW5T-P2.5-1.1-1
		0.2 to 4.0	1	2		8.4	XW5T-P4.0-1.1-1
		0.08 to 1.5	1	2	Blue	3.3	XW5T-P1.5-1.1-1BL
		0.14 to 2.5	1	2		6.3	XW5T-P2.5-1.1-1BL
		0.2 to 4.0	1	2		8.4	XW5T-P4.0-1.1-1BL
	Multi tiers terminal	0.08 to 1.5	2	2	Dark gray	6.5	XW5T-P1.5-1.1-2
		0.14 to 2.5	2	2		12.5	XW5T-P2.5-1.1-2
		0.2 to 4.0	2	2		16.5	XW5T-P4.0-1.1-2
		0.08 to 1.5	2	2	Blue	6.5	XW5T-P1.5-1.1-2BL
		0.14 to 2.5	2	2		12.5	XW5T-P2.5-1.1-2BL
		0.2 to 4.0	2	2		16.5	XW5T-P4.0-1.1-2BL
	Multi conductor terminals	0.08 to 1.5	1	3	Dark gray	4.1	XW5T-P1.5-1.2-1
		0.14 to 2.5	1	3		8.2	XW5T-P2.5-1.2-1
		0.2 to 4.0	1	3		10.8	XW5T-P4.0-1.2-1
		0.08 to 1.5	1	3	Blue	4.1	XW5T-P1.5-1.2-1BL
		0.14 to 2.5	1	3		8.2	XW5T-P2.5-1.2-1BL
		0.2 to 4.0	1	3		10.8	XW5T-P4.0-1.2-1BL
		0.08 to 1.5	1	4	Dark gray	4.9	XW5T-P1.5-2.2-1
		0.14 to 2.5	1	4		10.4	XW5T-P2.5-2.2-1
		0.2 to 4.0	1	4		13.4	XW5T-P4.0-2.2-1
		0.08 to 1.5	1	4	Blue	4.9	XW5T-P1.5-2.2-1BL
		0.14 to 2.5	1	4		10.4	XW5T-P2.5-2.2-1BL
		0.2 to 4.0	1	4		13.4	XW5T-P4.0-2.2-1BL
Grounding Terminal Blocks	Standard terminals	0.08 to 1.5	1	2	Green/ yellow	4.7	XW5G-P1.5-1.1-1
		0.14 to 2.5	1	2		9.9	XW5G-P2.5-1.1-1
		0.2 to 4.0	1	2		11.8	XW5G-P4.0-1.1-1
	Multi tiers terminal	0.08 to 1.5	2	2		8.1	XW5G-P1.5-1.1-2
		0.14 to 2.5	2	2		16.6	XW5G-P2.5-1.1-2
		0.2 to 4.0	2	2		20.8	XW5G-P4.0-1.1-2
	Multi conductor terminals	0.08 to 1.5	1	3		5.5	XW5G-P1.5-1.2-1
		0.14 to 2.5	1	3		11.6	XW5G-P2.5-1.2-1
		0.2 to 4.0	1	3		14.1	XW5G-P4.0-1.2-1
		0.08 to 1.5	1	4		6.3	XW5G-P1.5-2.2-1
		0.14 to 2.5	1	4		13.8	XW5G-P2.5-2.2-1
		0.2 to 4.0	1	4		16.7	XW5G-P4.0-2.2-1

* For stranded wires.

Accessories

Short Bars

For XW5T-P1.5-[]

No. of poles	Colors	Model*	Application
2	Red (RD) Blue (BL) Yellow (YL)	XW5S-P1.5-2[]	Used for cross-over wiring between Terminal Blocks.
3		XW5S-P1.5-3[]
4		XW5S-P1.5-4[]
5		XW5S-P1.5-5[]
10		XW5S-P1.5-10[]

* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow

For XW5T-P2.5-[]

No. of poles	Colors	Model*	Application
2	Red (RD) Blue (BL) Yellow (YL)	XW5S-P2.5-2[]	Used for cross-over wiring between Terminal Blocks.
3		XW5S-P2.5-3[]
4		XW5S-P2.5-4[]
5		XW5S-P2.5-5[]
10		XW5S-P2.5-10[]

* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow

For XW5T-P4.0-[]

No. of poles	Colors	Model*	Application
2	Red (RD) Blue(BL) Yellow (YL)	XW5S-P4.0-2[]	Used for cross-over wiring between Terminal Blocks.
3		XW5S-P4.0-3[]
4		XW5S-P4.0-4[]
5		XW5S-P4.0-5[]
10		XW5S-P4.0-10[]

* Replace the box ([]) in the model number with the code for the covering color. Specify the color: RD = red, BL = blue, YL = yellow

Labels

Applicable Terminal Blocks	Model	Contents	Minimum order (Sheet)	Application
XW5[]-P1.5-[]	XW5Z-P1.5LB1	1 sheet with 102 top labels	5	Used to identify wiring. (Material: PA resin, blank)
XW5[]-P1.5-[]	XW5Z-P1.5LB2	1 sheet with 108 side labels	5
XW5[]-P2.5-[]	XW5Z-P2.5LB1	1 sheet with 72 top labels	5
XW5[]-P2.5-[]	XW5Z-P2.5LB2	1 sheet with 72 side labels	5
XW5[]-P4.0-[]	XW5Z-P4.0LB1	1 sheet with 60 top labels	5
XW5[]-P4.0-[]	XW5Z-P4.0LB2	1 sheet with 60 side labels	5

Note:
1. Different models are used for the top and side surfaces.
2. There is no place to mount the Top-surface Labels on Two-tier Terminal Blocks with a width of 3.5 mm, so they cannot be used.
3. Use commercially available nameplates (9.5 mm wide, 0.5 mm thick) on the top only. Do not use on the side. You can also use a commercially available printer. Check with the manufacturer of the nameplates for information on applicable printers.
4. Refer to Data Sheet for details on printing labels.

End Cover

Applicable Terminal Blocks	Model	Application
XW5[]-P1.5-1.1-1	XW5E-P1.5-1.1-1	This part is required to prevent electric shock. Always mount End Covers to the following locations when you use Terminal Blocks. (For details, refer to Data Sheet.) • Exposed metal surface of the last Terminal Block • Any Terminal Block that is next to a different shape of Terminal Block
XW5[]-P1.5-1.1-2	XW5E-P1.5-1.1-2
XW5[]-P1.5-1.2-1	XW5E-P1.5-1.2-1
XW5[]-P1.5-2.2-1	XW5E-P1.5-2.2-1
XW5[]-P2.5-1.1-1	XW5E-P2.5-1.1-1
XW5[]-P2.5-1.1-2	XW5E-P2.5-1.1-2
XW5[]-P2.5-1.2-1	XW5E-P2.5-1.2-1
XW5[]-P2.5-2.2-1	XW5E-P2.5-2.2-1
XW5[]-P4.0-1.1-1	XW5E-P4.0-1.1-1
XW5[]-P4.0-1.1-2	XW5E-P4.0-1.1-2
XW5[]-P4.0-1.2-1	XW5E-P4.0-1.2-1
XW5[]-P4.0-2.2-1	XW5E-P4.0-2.2-1

End Brackets

Appearance	Width (mm)	Model	Application
	6	XW5Z-EP6	End Brackets are installed on the ends of the Terminal Blocks to prevent them from moving on the DIN Track.

Separator Plates

Appearance	Width (mm)	Model	Application
	12	XW5Z-EP12	This part is used to create insulation distance. Use Separator Plates according to the clearance and creeping distances required by the operating conditions of your equipment.

Note: Refer to 6. Using the Accessories on Data Sheet for information on using the accessories.
