Solid-state Timer

H3YN-[]-B

Our Value Design Products Increase the Value of Your Control Panels. Miniature Timer with Multiple Time Ranges and Multiple Operating Modes.

last update: May 22, 2023

(Unit: mm)

Timers

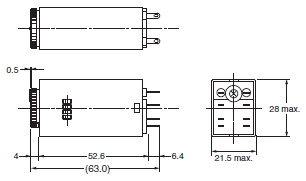

H3YN-2-B/-21-B Front Mounting

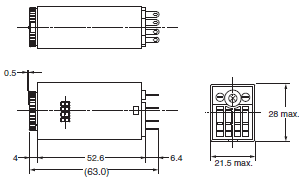

H3YN-4-B/-41-B Front Mounting , H3YN-4-Z-B/-41-Z-B

Mounting Height

Note: 1. The are no restrictions to the mounting direction.

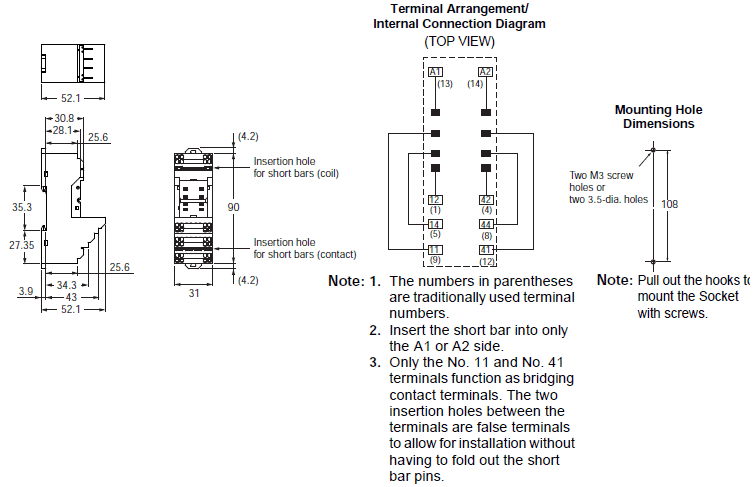

2. Always use the PYF-[]-PU-L with the H3Y-[]-B or H3YN-[]-B.

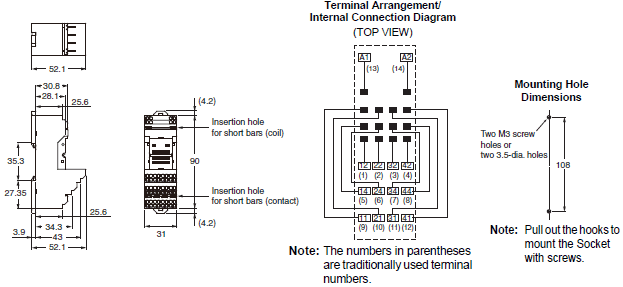

*2. Models in parentheses are Connecting Sockets to the H3Y-4-B, H3YN-4-B/-41-B, or H3YN-4-Z-B/-41-Z-B.
*3. These values apply when the PFP-[]N is used.
Add 9 mm if you use the PFP-[]N2.
