H3DT-H

Power OFF-delay Timer

H3DT-H

Our Value Design Products Increase the Value of Your Control Panels. Set two time ranges with each Timer, from 0.1 to 12 seconds for the S Series and from 1.0 to 120 seconds for the L Series.

Timers

H3DT-H

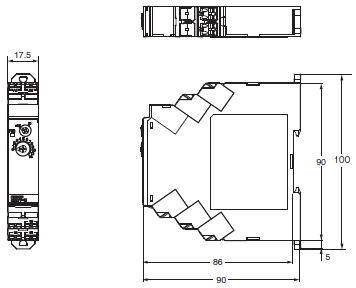

H3DT-H Dimensions 1

Track Mounting Products (Sold Separately)

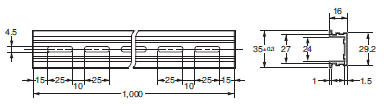

DIN Track
PFP-100N
PFP-50N

H3DT-H Dimensions 2

DIN Track
PFP-100N2

H3DT-H Dimensions 3

End Plate
PFP-M

H3DT-H Dimensions 4

Spacer
PFP-S

H3DT-H Dimensions 5

Note: 1. Order the above products in multiples of 10.
         2. The Tracks conform to DIN standards.

Options (Order Separately)

Front Cover
Y92A-D1A

H3DT-H Dimensions 7
