E52 with Ferrule (General purpose Models)

Temperature Sensor with Ferrule (General purpose Models)

Sheathed platinum resistance thermometers, Sheathed thermocouples

last update: April 1, 2021

Classifi- cation	Descrip- tion	Model and appearance		Tempera- ture range (See note 3.)	Element type	Conduc- tor type	Class	Protective tubing material	Terminal type
General- purpose Models	Sheathed platinum re-sistance thermometer	E52-P[]AF		-196°C to 450°C	Pt100	3-conduc- tor system	B	SUS316	Exposed lead wires
General- purpose Models	Sheathed thermocou ple	E52-CA[]AF		0°C to 900°C	K (CA)	Non- grounded type	2 (0.75)	ASTM316L	Exposed lead wires

Note: 1. These tables provide general specifications only. Be sure to read the detailed specifications and precautions before use.
2. The temperature range varies with the material, thickness, construction, and element type of the protective tubing.

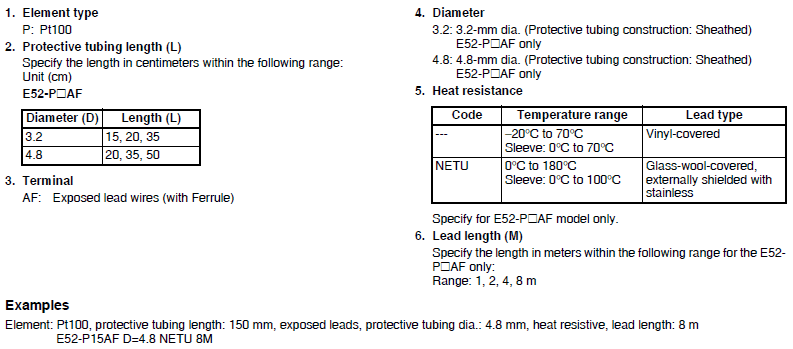

Model Number Legend

The type of resistance thermometer, protective tubing length, and lead length can be specified as shown below.

Platinum Resistance Thermometers

E52 with Ferrule (General purpose Models) Lineup 4

Sheathed Platinum Resistance Thermometers

Exposed-lead Models

E52-P[]AF

Terminal type	Protective tubing diameter D (mm)	Protective tubing length L (cm)	Lead wire	Lead wire length M (m)
				1	2
				Model
Exposed- lead Models	3.2 dia.	15	Standard	E52-P15AF D=3.2 1M	E52-P15AF D=3.2 2M
		15	Heat resistive	E52-P15AF D=3.2 NETU 1M	E52-P15AF D=3.2 NETU 2M
		20	Standard	E52-P20AF D=3.2 1M	E52-P20AF D=3.2 2M
		20	Heat resistive	E52-P20AF D=3.2 NETU 1M	E52-P20AF D=3.2 NETU 2M
		35	Standard	E52-P35AF D=3.2 1M	E52-P35AF D=3.2 2M
		35	Heat resistive	E52-P35AF D=3.2 NETU 1M	E52-P35AF D=3.2 NETU 2M
	4.8 dia.	20	Standard	E52-P20AF D=4.8 1M	E52-P20AF D=4.8 2M
		20	Heat resistive	E52-P20AF D=4.8 NETU 1M	E52-P20AF D=4.8 NETU 2M
		35	Standard	E52-P35AF D=4.8 1M	E52-P35AF D=4.8 2M
		35	Heat resistive	E52-P35AF D=4.8 NETU 1M	E52-P35AF D=4.8 NETU 2M
		50	Standard	E52-P50AF D=4.8 1M	E52-P50AF D=4.8 2M
		50	Heat resistive	E52-P50AF D=4.8 NETU 1M	E52-P50AF D=4.8 NETU 2M

Terminal type	Protective tubing diameter D (mm)	Protective tubing length L (cm)	Lead wire	Lead wire length M (m)
				4	8
				Model
Exposed- lead Models	3.2 dia.	15	Standard	E52-P15AF D=3.2 4M	E52-P15AF D=3.2 8M
		15	Heat resistive	E52-P15AF D=3.2 NETU 4M	E52-P15AF D=3.2 NETU 8M
		20	Standard	E52-P20AF D=3.2 4M	E52-P20AF D=3.2 8M
		20	Heat resistive	E52-P20AF D=3.2 NETU 4M	E52-P20AF D=3.2 NETU 8M
		35	Standard	E52-P35AF D=3.2 4M	E52-P35AF D=3.2 8M
		35	Heat resistive	E52-P35AF D=3.2 NETU 4M	E52-P35AF D=3.2 NETU 8M
	4.8 dia.	20	Standard	E52-P20AF D=4.8 4M	E52-P20AF D=4.8 8M
		20	Heat resistive	E52-P20AF D=4.8 NETU 4M	E52-P20AF D=4.8 NETU 8M
		35	Standard	E52-P35AF D=4.8 4M	E52-P35AF D=4.8 8M
		35	Heat resistive	E52-P35AF D=4.8 NETU 4M	E52-P35AF D=4.8 NETU 8M
		50	Standard	E52-P50AF D=4.8 4M	E52-P50AF D=4.8 8M
		50	Heat resistive	E52-P50AF D=4.8 NETU 4M	E52-P50AF D=4.8 NETU 8M

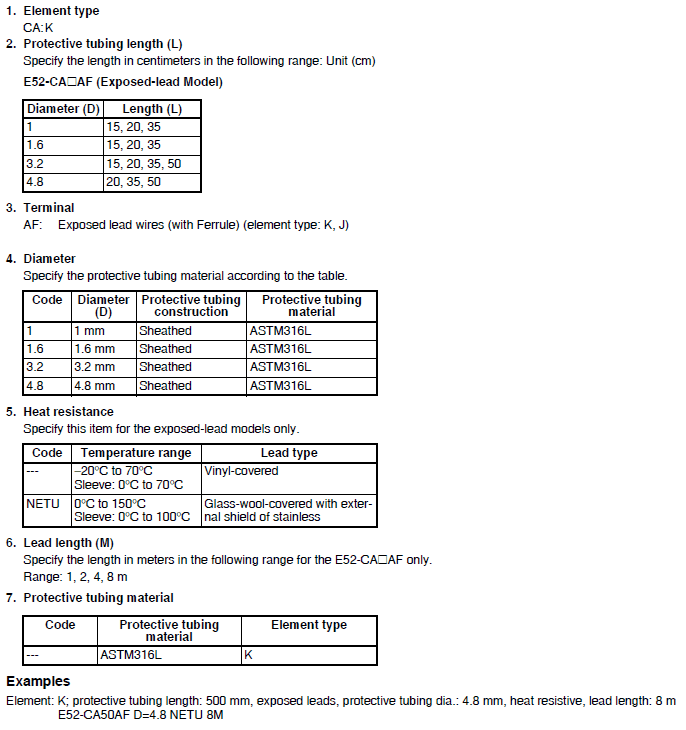

Model Number Legend

The type of resistance thermometer, protective tubing length, and lead length can be specified as shown below.

Thermocouples

E52 with Ferrule (General purpose Models) Lineup 10

Sheathed Thermocouples

Exposed-lead Models

E52-CA[]AF

K (CA) Model Information (E52-CA[]AF)

Terminal type	Protective tubing diameter D (mm)	Protective tubing length L (cm)	Lead wire	Lead wire length M (m)
				1	2
				Model
Exposed- lead Models	1 dia.	15	Standard	E52-CA15AF D=1 1M	E52-CA15AF D=1 2M
		15	Heat resistive	E52-CA15AF D=1 NETU 1M	E52-CA15AF D=1 NETU 2M
		20	Standard	E52-CA20AF D=1 1M	E52-CA20AF D=1 2M
		20	Heat resistive	E52-CA20AF D=1 NETU 1M	E52-CA20AF D=1 NETU 2M
		35	Standard	E52-CA35AF D=1 1M	E52-CA35AF D=1 2M
		35	Heat resistive	E52-CA35AF D=1 NETU 1M	E52-CA35AF D=1 NETU 2M
	1.6 dia.	15	Standard	E52-CA15AF D=1.6 1M	E52-CA15AF D=1.6 2M
		15	Heat resistive	E52-CA15AF D=1.6 NETU 1M	E52-CA15AF D=1.6 NETU 2M
		20	Standard	E52-CA20AF D=1.6 1M	E52-CA20AF D=1.6 2M
		20	Heat resistive	E52-CA20AF D=1.6 NETU 1M	E52-CA20AF D=1.6 NETU 2M
		35	Standard	E52-CA35AF D=1.6 1M	E52-CA35AF D=1.6 2M
		35	Heat resistive	E52-CA35AF D=1.6 NETU 1M	E52-CA35AF D=1.6 NETU 2M
Exposed- lead Models	3.2 dia.	15	Standard	E52-CA15AF D=3.2 1M	E52-CA15AF D=3.2 2M
		15	Heat resistive	E52-CA15AF D=3.2 NETU 1M	E52-CA15AF D=3.2 NETU 2M
		20	Standard	E52-CA20AF D=3.2 1M	E52-CA20AF D=3.2 2M
		20	Heat resistive	E52-CA20AF D=3.2 NETU 1M	E52-CA20AF D=3.2 NETU 2M
		35	Standard	E52-CA35AF D=3.2 1M	E52-CA35AF D=3.2 2M
		35	Heat resistive	E52-CA35AF D=3.2 NETU 1M	E52-CA35AF D=3.2 NETU 2M
		50	Standard	E52-CA50AF D=3.2 1M	E52-CA50AF D=3.2 2M
		50	Heat resistive	E52-CA50AF D=3.2 NETU 1M	E52-CA50AF D=3.2 NETU 2M
	4.8 dia.	20	Standard	E52-CA20AF D=4.8 1M	E52-CA20AF D=4.8 2M
		20	Heat resistive	E52-CA20AF D=4.8 NETU 1M	E52-CA20AF D=4.8 NETU 2M
		35	Standard	E52-CA35AF D=4.8 1M	E52-CA35AF D=4.8 2M
		35	Heat resistive	E52-CA35AF D=4.8 NETU 1M	E52-CA35AF D=4.8 NETU 2M
		50	Standard	E52-CA50AF D=4.8 1M	E52-CA50AF D=4.8 2M
		50	Heat resistive	E52-CA50AF D=4.8 NETU 1M	E52-CA50AF D=4.8 NETU 2M

Terminal type	Protective tubing diameter D (mm)	Protective tubing length L (cm)	Lead wire	Lead wire length M (m)
				4	8
				Model
Exposed- lead Models	1 dia.	15	Standard	E52-CA15AF D=1 4M	E52-CA15AF D=1 8M
		15	Heat resistive	E52-CA15AF D=1 NETU 4M	E52-CA15AF D=1 NETU 8M
		20	Standard	E52-CA20AF D=1 4M	E52-CA20AF D=1 8M
		20	Heat resistive	E52-CA20AF D=1 NETU 4M	E52-CA20AF D=1 NETU 8M
		35	Standard	E52-CA35AF D=1 4M	E52-CA35AF D=1 8M
		35	Heat resistive	E52-CA35AF D=1 NETU 4M	E52-CA35AF D=1 NETU 8M
	1.6 dia.	15	Standard	E52-CA15AF D=1.6 4M	E52-CA15AF D=1.6 8M
		15	Heat resistive	E52-CA15AF D=1.6 NETU 4M	E52-CA15AF D=1.6 NETU 8M
		20	Standard	E52-CA20AF D=1.6 4M	E52-CA20AF D=1.6 8M
		20	Heat resistive	E52-CA20AF D=1.6 NETU 4M	E52-CA20AF D=1.6 NETU 8M
		35	Standard	E52-CA35AF D=1.6 4M	E52-CA35AF D=1.6 8M
		35	Heat resistive	E52-CA35AF D=1.6 NETU 4M	E52-CA35AF D=1.6 NETU 8M
Exposed- lead Models	3.2 dia.	15	Standard	E52-CA15AF D=3.2 4M	E52-CA15AF D=3.2 8M
		15	Heat resistive	E52-CA15AF D=3.2 NETU 4M	E52-CA15AF D=3.2 NETU 8M
		20	Standard	E52-CA20AF D=3.2 4M	E52-CA20AF D=3.2 8M
		20	Heat resistive	E52-CA20AF D=3.2 NETU 4M	E52-CA20AF D=3.2 NETU 8M
		35	Standard	E52-CA35AF D=3.2 4M	E52-CA35AF D=3.2 8M
		35	Heat resistive	E52-CA35AF D=3.2 NETU 4M	E52-CA35AF D=3.2 NETU 8M
		50	Standard	E52-CA50AF D=3.2 4M	E52-CA50AF D=3.2 8M
		50	Heat resistive	E52-CA50AF D=3.2 NETU 4M	E52-CA50AF D=3.2 NETU 8M
	4.8 dia.	20	Standard	E52-CA20AF D=4.8 4M	E52-CA20AF D=4.8 8M
		20	Heat resistive	E52-CA20AF D=4.8 NETU 4M	E52-CA20AF D=4.8 NETU 8M
		35	Standard	E52-CA35AF D=4.8 4M	E52-CA35AF D=4.8 8M
		35	Heat resistive	E52-CA35AF D=4.8 NETU 4M	E52-CA35AF D=4.8 NETU 8M
		50	Standard	E52-CA50AF D=4.8 4M	E52-CA50AF D=4.8 8M
		50	Heat resistive	E52-CA50AF D=4.8 NETU 4M	E52-CA50AF D=4.8 NETU 8M
