Industrial PC Platform NY-series Industrial Monitor

NYM

Very stylish, very industrial

last update: February 8, 2021

Specifications

Performance Specifications

Display Specifications

Item		Specifications
Item		12.1 Inch models	15.4 Inch models	18.5 Inch models
Display panel *1	Display device	TFT LCD
	Screen size	12.1 inches	15.4 inches	18.5 inches
	Surface treatment	Anti glare treatment
	Surface hardness	Mohs scale: 5 - 6
	Resolution	1,280 ✕ 800 pixels at 60 Hz (horizontal ✕ vertical)		1,920 ✕ 1,080 pixels at 60 Hz (horizontal ✕ vertical)
	Colors	16,770,000 colors
	Effective display area	261 ✕ 163 mm (horizontal ✕ vertical)	331 ✕ 207 mm (horizontal ✕ vertical)	409 ✕ 230 mm (horizontal ✕ vertical)
	View angles	Left: 60°, Right: 60°, Top: 60°, Bottom: 60°		Left: 89°, Right: 89°, Top: 89°, Bottom: 89°
	Life	50,000 hours min. *2
	*Brightness adjustment 3**	200 levels
Touch	Technology	Projected capacitive
	Touch resolution	Touch accuracy 1.5% (4-5 mm)
	Multitouch	Up to 5 simultaneous touches
	Features	Water detection 4, hand palm rejection 5, gloves *6
	Life	50,000,000 operations min.
	EMC	Correct touchscreen operation is possible within allowable EMC immunity conditions

*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and dark
     pixels fall within the following standard range: light and dark pixels 10 or less. (There must not be 3 adjacent light/dark
     pixels.)
*2. This is the estimated time before brightness is reduced by half at room temperature and humidity.
     The life expectancy is drastically shortened if used at high temperatures.
*3. If the brightness is set to very dark, it causes flickering or the screen will be too dark to use.
*4. If water is detected the touch functionality will not be available.
*5. If a palm is detected that specific area is neglected.
*6. The touchscreen can be operated when wearing gloves. Confirm the touchscreen can be operated with gloves before
     actual operation.

Connector Specifications

Item		Industrial Monitor
Item		NYM12W- C100[]	NYM15W- C100[]	NYM19W- C1[]0[]	NYM12W- C106[]	NYM15W- C106[]	NYM19W- C1[]6[]
Power connector		24 VDC
USB2.0 Type-A	Number of ports	2
	Maximum current	500 mA max.
	Maximum cable length	5 m
USB2.0 Type-B	Number of ports	1			-
USB2.0 Type-B	Maximum cable length	5 m			-
DVI-D connector	Video interface	Digital only			-
	Resolution	1,280 x 800 pixels at 60 Hz		1,920 x 1,080 pixels at 60 Hz	-		1,920 x 1,080 pixels at 60 Hz
	Maximum DVI cable length	5 m			-
NY Monitor Link	Video interface	-			Digital only
	Resolution	-			1,280 x 800 pixels at 60 Hz
	Connector type	-			RJ45
	Cable shielding, type and max. length	-			S/FTP, Cat.6A, 100 m
	USB data throughput	-			280 Mbps max.

Electrical Specifications

Item			Specifications
			NYM12W- C100[]	NYM15W- C100[]	NYM19W- C1[]0[]	NYM12W- C106[]	NYM15W- C106[]	NYM19W- C1[]6[]
			DVI-D interface			NY Monitor Link interface
Rated power supply voltage			24 VDC
Allowable power supply voltage range			19.2 to 28.8 VDC
Grounding method			Ground to less than 100 Ω
Inrush current			At 24 VDC: 5 A / 10 ms max.
Overvoltage category			Meets IEC 61010-2-201: Category II
EMC immunity level			IEC 61131-2: Zone B
Power consumption	Maximum power consumption		25 W max.	25 W max.	37 W max.	30 W max.	31 W max.	44 W max.
Power consumption	Expansions	USB	5 W max (2 x 500 mA at 5 V), included above.

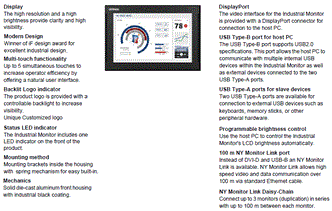

Components and functions

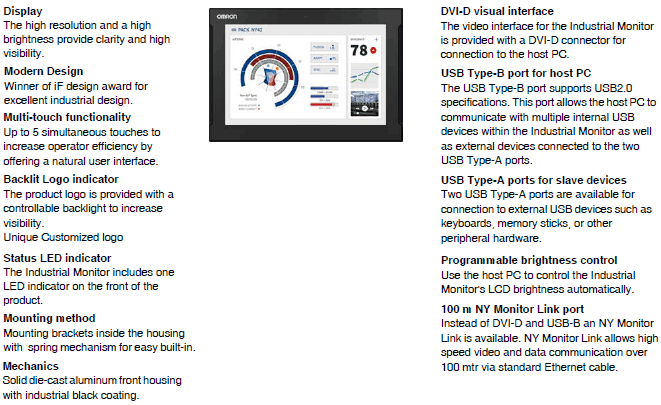

The Industrial Monitor is intended to be used as a display and touch interface for the Industrial PC Platform variants. The Industrial Monitor allows the user to interact through touch interactions on the LCD display.

Environmental Specifications

Item		Specifications
operation environment	Ambient operating temperature	0 to 55°C *1
	Ambient storage temperature	-20 to 70°C *1
	Ambient operating humidity	10% to 90% with no condensation *1
	Ambient storage humidity	10% to 90% with no condensation *1
	Operating atmosphere	No corrosive gases
	Altitude	2,000 m max.
	Pollution degree	2 or less: Meets IEC 61010-2-201.
	Noise resistance (during operation)	Conforms to IEC61000-4-4, 2kV (power lines)
	Vibration resistance (during operation)	Conforms to IEC 60068-2-6. 5 to 8.4Hz with 3.5 mm single amplitude and 8.4 to 150 Hz with 9.8 m/s² for 10 times each in X, Y and Z directions
	Shock resistance (during operation)	Conforms to IEC 60068-2-27. 147 m/s², 3 times in each X, Y and Z directions
	Installation method	Mount on panel
	Degree of protection	Front of product: IP65 *2
*Applicable standards 3**		EU Directives: EMC Directive 2014/30/EU (EN 61131-2) and RoHS Directive KC Registration, RCM, cULus, EAC

*1. See Temperature and Humidity Specifications.
*2. The Industrial Monitor may not operate properly in locations subjected to oil splashes for extended periods of time.
*3. Contact your OMRON representative for the most recent applicable standards for each model.

Temperature and Humidity Specifications

The allowed ambient temperature and humidity conditions during operation and storage for the Industrial Monitor are specified in the following graphs.

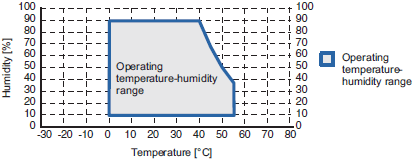

• Operate the Industrial Monitor within the following ambient temperature and humidity ranges.

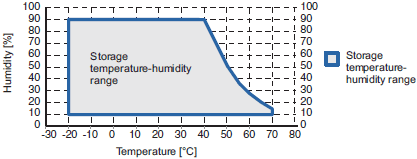

• Store the Industrial Monitor within the following ambient temperature and humidity ranges.

Monitor Temperature Specifications

Ambient operating temperature specifications for a Monitor

Product Orientation	Mounting Angle	Configuration
Product Orientation	Mounting Angle	With a DVI-D interface	With an NY Monitor Link interface
Landscape and Portrait	0° to 45°	0 to 55°C	0 to 50°C
Landscape	45° to 90°	0 to 55°C
Landscape	90° to 135°	0 to 55°C
Portrait	45° to 90°	0 to 55°C
Portrait	90° to 135°	0 to 55°C
