E5CD-800

Digital Temperature Controller (Simple Type) (48 x 48 mm)

E5CD-800

48 x 48 mm. Optimize Control by Detecting Status Changes. Easily Satisfy Both Productivity and Quality.

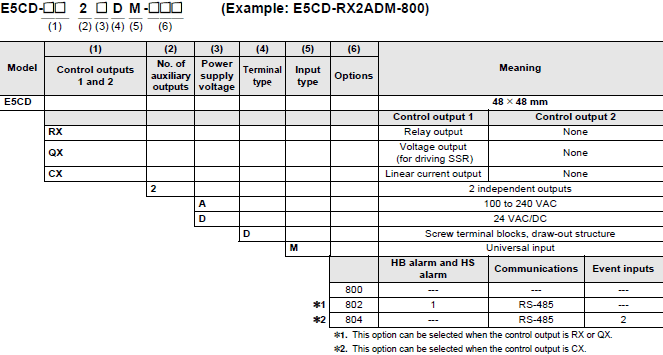

Model Number Legend

E5CD-800 Lineup 1

Heating and Cooling Control

Using Heating and Cooling Control

(1) Control Output Assignment
An auxiliary output is used as the cooling control output.
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

List of Models

Model
E5CD-RX2ADM-800
E5CD-RX2DDM-800
E5CD-RX2ADM-802
E5CD-RX2DDM-802
E5CD-QX2ADM-800
E5CD-QX2DDM-800
E5CD-QX2ADM-802
E5CD-QX2DDM-802

Optional Products (Order Separately)

Terminal Covers

Model
E53-COV17
E53-COV23 (3pcs)

Note: The E53-COV10 cannot be used. Refer to Data Sheet for the mounted dimensions.

Waterproof Packing

Model
Y92S-P8

Note:This Waterproof Packing is provided with the Digital Temperature Controller.

Current Transformers (CTs)

Hole diameter Model
5.8 mm E54-CT1
5.8 mm E54-CT1L*
12.0 mm E54-CT3
12.0 mm E54-CT3L*

*Lead wires are included with these CTs. If UL certification is required, use these CTs.

Adapter

Model
Y92F-45

Note:Use this Adapter when the panel has already been prepared for an E5B[] Controller.

Waterproof Cover

Model
Y92A-48N

Mounting Adapter

Model
Y92F-49

Note:This Mounting Adapter is provided with the Digital Temperature Controller.

DIN Track Mounting Adapter

Model
Y92F-52

Front Covers

Type Model
Hard Front Cover Y92A-48H
Soft Front Cover Y92A-48D

Draw-out Jig

Model
Y92F-58
