S8V-NF

Noise Filter (Single-phase 250 V 3 A / 6 A Type)

S8V-NF

DIN Rail Mounting Type Ideal for Control Panels Featuring a Slim Design that Saves Space Push-In Connections for Safe and Easy Wiring

Features
Lineup
Specifications
Dimensions
Catalog / Manual / CAD / Software

last update: December 1, 2017

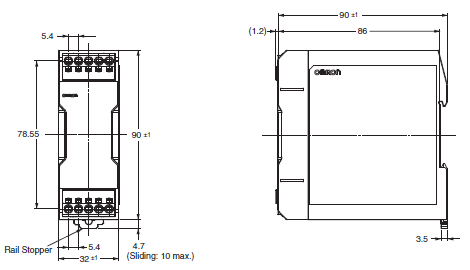

(Unit: mm)

S8V-NFS203
S8V-NFS206

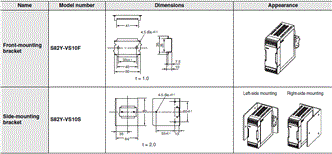

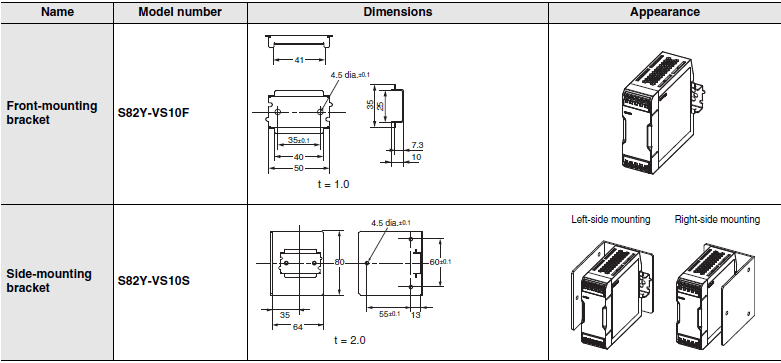

Mounting Brackets

DIN Rails (Order Separately)

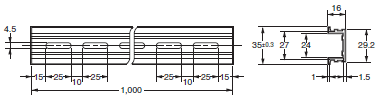

Mounting Rail (Material: Aluminum)

PFP-100N
PFP-50N

Mounting Rail (Material: Aluminum)

PFP-100N2

End Plate

PFP-M

Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings
may result from aluminum abrasion.

last update: December 1, 2017
