S8VK-WA

Switch Mode Power Supply (240/480/960/2000-W Models)

S8VK-WA

200 V Three-phase Input Power Supplies A solution to three-phase balance problems

last update: July 8, 2024

Ratings, Characteristics, and Functions

Power rating			240 W	480 W	960 W
Output voltage (VDC)			24 V	24 V	24 V
*Efficiency 1**		Three-phase 200 VAC input	93% typ.	94% typ.	95% typ.
		Single-phase/ two-phase 200 VAC input	92% typ.	93% typ.	94% typ.
		Three-phase 230 VAC input	93% typ.	94% typ.	95% typ.
		Single-phase/ two-phase 230 VAC input	93% typ.	94% typ.	95% typ.
Input con- ditions	*Input voltage range 2**		Three-phase/single-phase/two-phase 170 to 264 VAC, 265 to 300 VAC (1 second) 240 to 350 VDC
	*Frequency 2**		50/60 Hz (47 to 63 Hz)
	Input current *1	Three-phase 200 VAC input	0.80 A typ.	1.6 A typ.	3.1 A typ.
		Single-phase/ two-phase 200 VAC input	1.4 A typ.	2.6 A typ.	5.2 A typ.
		Three-phase 230 VAC input	0.70 A typ.	1.4 A typ.	2.7 A typ.
		Single-phase/ two-phase 230 VAC input	1.2 A typ.	2.3 A typ.	4.5 A typ.
	*Power factor 1**		0.9 min.
	Leakage current *3	Three-phase 200 VAC input	1 mA max.
	Leakage current *3	Three-phase 230 VAC input	1 mA max.
	Inrush current *4 (for a cold start at 25°C)	Three-phase 200 VAC input	13 A typ.	13 A typ.	14 A typ.
	Inrush current *4 (for a cold start at 25°C)	Three-phase 230 VAC input	15 A typ.	15 A typ.	16 A typ.
Output character- istics	Rated output current		10 A	20 A	40 A
	Power Boost Function		15 A	30 A	60 A
	*Voltage adjustment range 5**		24 to 29.5 V (with V.ADJ)		24 to 28 V (with V.ADJ)
	Ripple noise voltage *6	Three-phase 200 to 240 VAC input	50 mVp-p max. at 20 MHz of bandwidth	120 mVp-p max. at 20 MHz of bandwidth	60 mVp-p max. at 20 MHz of bandwidth
	*Input variation influence 7**		0.5% max.
	*Load variation influence 8**		1.5% max.
	Temperature variation influence	200 to 240 VAC input	0.05%/°C max.
	Startup time *9	Three-phase 200 VAC input	1,000 ms max.
	Startup time *9	Three-phase 230 VAC input	1,000 ms max.
	Output hold time *9	Three-phase 200 VAC input	35 ms typ.	30 ms typ.	25 ms typ.
	Output hold time *9	Three-phase 230 VAC input	35 ms typ.	30 ms typ.	25 ms typ.
Additional functions	Overload protection		Yes, automatic reset, intermittent operation type Refer to Overload Protection below.
	Overload protection for terminals		No
	Overvoltage protection		Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again), Refer to Overvoltage Protection below.
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on Data sheet.
	INPUT OK Indicator		Yes (LED: Green)
	DC OK Indicator		Yes (LED: Green)
	Iout > 100% Indicator		Yes (LED: Yellow)
	DC OK Signal Output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
	Iout > 100% signal output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and all output terminals, signal output terminals), cutoff current 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 20 mA
			1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE terminals), cutoff current 25 mA (240 W/480 W/960 W) 1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE terminals), cutoff current 40 mA (2000 W)
			0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff current 10 mA
	Insulation resistance		100 MΩ min. (between all output terminals, signal output terminals and all input terminals / PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature *10		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data on Data sheet.) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	*Vibration resistance 11**		10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
	*Shock resistance 11**		294 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	*MTBF 12**		290,000 hrs typ.	230,000 hrs typ.	170,000 hrs typ
Reliability	*Expected life 13**		10 years min.
Construc- tion	Weight		800 g max.	1,050 g max.	1,750 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529
Standards	Harmonic current emissions		Conforms to EN 61000-3-2 (single-phase, two-phase *14) Complies with JIS C 61000-3-2 (single-phase, two-phase, three-phase)
	EMI	Conducted emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B (three-phase) Conforms to EN 61204-3 Class A, EN 55011 Class A (single-phase, two-phase)		Conforms to EN 61204-3 Class B, EN 55011 Class (three-phase) Conforms to EN 61204-3 Class B, EN 55011 Class (single-phase, two-phase *16) Conforms to EN 61204-3 Class EN 55011 Class A (single-phase, two-phase)
	EMI	Radiated emissions
	EMS		Conforms to EN 61204-3 high severity levels
	*Safety standards 17**		• UL 508 (Listing) • CSA C22.2 No.107.1 (cUL) • UL 62368-1 (Recognition) OVC II (≤ 3000 m) Pol2 • CSA C22.2 No.62368-1 (cUR) OVC II (≤ 3000 m) Pol2 • EN/IEC 62477-1 OVC III (≤ 2000 m) OVC II (2000 m < and ≤ 3000 m) Pol2 • EN/IEC 62368-1 OVC II (≤ 3000 m) Pol2 • RCM (EN61000-6-4) • Complies with PELV (EN/IEC 60204-1) • Complies with EN/IEC 61558-2-16 • BIS: IS 13252 (Part1) (960 W only)
	SEMI		Complies with SEMI F47-0706 (three-phase / single-phase / two-phase 200 to 240 VAC input)

Power rating			2000 W
Output voltage (VDC)			24 V	48 V
*Efficiency 1**		Three-phase 200 VAC input	95% typ.	96% typ.
		Single-phase/ two-phase 200 VAC input	95% typ.	95% typ.
		Three-phase 230 VAC input	96% typ.	96% typ.
		Single-phase/ two-phase 230 VAC input	95% typ.	96% typ.
Input con- ditions	*Input voltage range 2**		Three-phase/single-phase/two-phase 170 to 264 VAC, 265 to 300 VAC (1 second) 240 to 384 VDC
	*Frequency 2**		50/60 Hz (47 to 63 Hz)
	Input current *1	Three-phase 200 VAC input	6.5 A typ.	6.9 A typ.
		Single-phase/ two-phase 200 VAC input	11 A typ.	12 A typ.
		Three-phase 230 VAC input	5.7 A typ.	6.0 A typ.
		Single-phase/ two-phase 230 VAC input	9.5 A typ.	10 A typ.
	*Power factor 1**		0.9 min.
	Leakage current *3	Three-phase 200 VAC input	3.5 mA max.	3.5 mA max.
	Leakage current *3	Three-phase 230 VAC input	3.5 mA max.	3.5 mA max.
	Inrush current *4 (for a cold start at 25°C)	Three-phase 200 VAC input	18 A typ.	22 A typ.
	Inrush current *4 (for a cold start at 25°C)	Three-phase 230 VAC input	16 A typ.	16 A typ.
Output character- istics	Rated output current		85 A	45 A
	Power Boost Function		127.5 A	67.5 A
	*Voltage adjustment range 5**		24 to 28 V (with V.ADJ)	48 to 56 V (with V.ADJ)
	Ripple noise voltage *6	Three-phase 200 to 240 VAC input	170 mVp-p max. at 20 MHz of bandwidth	190 mVp-p max. at 20 MHz of bandwidth
	*Input variation influence 7**		0.5% max.
	*Load variation influence 8**		1.5% max.
	Temperature variation influence	200 to 240 VAC input	0.05%/°C max.
	Startup time *9	Three-phase 200 VAC input	1,000 ms max.
	Startup time *9	Three-phase 230 VAC input	1,000 ms max.
	Output hold time *9	Three-phase 200 VAC input	25 ms typ.	25 ms typ.
	Output hold time *9	Three-phase 230 VAC input	25 ms typ.	25 ms typ.
Additional functions	Overload protection		Yes, inverted L voltage drop, automatic reset, power cut off if higher of rated output current continues and turn on the input again. Refer to the Overload Protection below.
	Overload protection for terminals		Yes, inverted L voltage drop, automatic reset, power cut off if overprotection (terminal blocks) continues and turn on the input again. Refer to the Overload Protection below.	No
	Overvoltage protection		Yes, 130% or higher of rated output voltage, power shut off (shut off the input voltage and turn on the input again), Refer to Overvoltage Protection below.
	Series operation		Yes (For up to two Power Supplies; external diodes required.)
	Parallel operation		Yes (For up to two Power Supplies), Refer to Parallel Operation on Data sheet. Use with the switch for parallel operation set to the “PARALLEL” side (the rated output current limited to 80%).
	INPUT OK Indicator		Yes (LED: Green)
	DC OK Indicator		Yes (LED: Green)
	Iout > 100% Indicator		Yes (LED: Yellow)
	DC OK Signal Output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
	Iout > 100% signal output		Yes (MOS FET relay output 30 VDC max., 50 mA max.)
Insulation	Withstand voltage		3.0 kVAC for 1 min. (between all input terminals and all output terminals, signal output terminals), cutoff current 20 mA
			2.0 kVAC for 1 min. (between all input terminals and PE terminals), cutoff current 20 mA
			1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE terminals), cutoff current 25 mA (240 W/480 W/960 W) 1.0 kVAC for 1 min. (between all output terminals, signal output terminals and PE terminals), cutoff current 40 mA (2000 W)
			0.5 kVAC for 1 min. (between all output terminals and all signal output terminals), cutoff current 10 mA
	Insulation resistance		100 MΩ min. (between all output terminals, signal output terminals and all input terminals / PE terminals) at 500 VDC
Environ- ment	Ambient operating temperature *10		-40 to 70°C (Derating is required according to the temperature. Refer to Engineering Data on Data sheet.) (with no condensation or icing)
	Storage temperature		-40 to 85°C (with no condensation or icing)
	Ambient operating humidity		95% max. (Storage humidity: 95% max.)
	*Vibration resistance 11**		10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions
	*Shock resistance 11**		147 m/s², 3 times each in ±X, ±Y, ±Z directions
Reliability	*MTBF 12**		90,000 hrs
Reliability	*Expected life 13**		10 years min.
Construc- tion	Weight		3200 g max.
	Cooling fan		No
	Degree of protection		IP20 by EN/IEC 60529
Standards	Harmonic current emissions		Conforms to EN 61000-3-2 (single-phase, two-phase) 14 Complies with JIS C 61000-3-2 (single-phase, two-phase, three-phase) 15
	EMI	Conducted emissions	Conforms to EN 61204-3 Class B, EN 55011 Class B (single-phase, two-phase, three-phase)
	EMI	Radiated emissions
	EMS		Conforms to EN 61204-3 high severity levels
	Safety standards		• UL 508 (Listing) • CSA C22.2 No.107.1 (cUL) • UL 62368-1 (Recognition) OVC II (≤ 3000 m) Pol2 • CSA C22.2 No.62368-1 (cUR) OVC II (≤ 3000 m) Pol2 • EN/IEC 62477-1 OVC III (≤ 2000 m) 　OVC II (2000 m < and ≤ 3000 m) Pol2 • EN/IEC 62368-1 OVC II (≤ 3000 m) Pol2 • RCM (EN61000-6-4) • Complies with PELV (EN/IEC 60204-1) • Complies with EN/IEC 61204-7
	SEMI		Complies with SEMI F47-0706 (three-phase / single-phase / two-phase 200 to 240 VAC input)

*1. The value is when both rated output voltage and rated output current are satisfied.
*2. Do not use an inverter output for the product. Inverters with an output frequency of 50/60 Hz are available, but the rise
in the internal temperature of the product may result in ignition or burning. If the input is connected to a UPS, do not
connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase,
possibly causing smoking or burning.
*3. The value is determined according to the Electrical Appliances and Material Safety Act.
*4. Values for a cold start at 25°C. Refer to Inrush Current, Startup Time, and Output Hold Time on below.
*5. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than the voltage adjustment range.
When adjusting the output voltage, confirm the actual output voltage from the product and be sure that the load is not
damaged.
*6. The value is when both rated output voltage and rated output current are satisfied. A characteristic when the ambient
operating temperature is 25°C.
*7. This is the maximum variation in the output voltage when the input voltage is gradually changed within the allowable
input voltage range at the rated output voltage and rated output current.
*8. 200 to 240 VAC input, in the range of 0 A to the rated output current.
*9. This is the value when both rated output voltage and rated output current are satisfied and at room temperature
(25°C). Refer to Inrush Current, Startup Time, and Output Hold Time on below for details.
*10. At -40 to -25°C, time will be required before the rated output voltage is output after the input voltage is input.

*11. If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail.
*12. MTBF is calculated according to JEITA RCR-9102.

*13. Refer to Recommended Replacement Periods and Periodic Replacement for Preventive Maintenance on Data Sheet for
details.
*14. EN61000-3-2 does not applied to three-phase 200 to 240 VAC input models.
When using 2000 W models, conforms to EN 61000-3-2 under the following condition.
2000 W: At the rated output voltage, and 75% or less than the rated output current
*15. Complies with JIS C 61000-3-2 (single-phase, two-phase, three-phase) under the following condition.
Three-phase: at the rated output voltage and 75 or less than the rated output current
Single-phase or two-phase: at the rated output voltage and the rated output current.

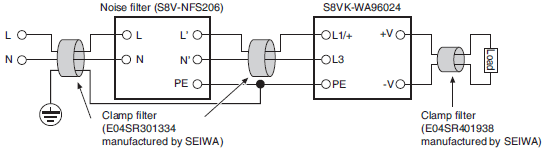

*16. Class B compliance was met with the following configuration.

*17. Refer to Standard Compliance below for details.

Standard Compliance

• To comply with PELV output requirements for EN/IEC 60204-1, ground the negative side of the output (-V) to a protective
earth (PE).
• EN/IEC 61558-2-16, EN/IEC 61204-7
When certification was received for EN/IEC 60204-1 (Machinery Safety), it was necessary to go through a control
transformer to the control circuits. However, a control transformer is not always necessary for product that have been
certified for the safety standard for OVCIII or for product that use a transformer that complies with EN/IEC 61558-2-16 or
EN/IEC 61204-7.
• Safety Standards for a DC Input
＜S8VK-WA240, 380, 960＞
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1,
EN/IEC 62477-1, EN/IEC 61558-2-16
＜S8VK-WA202＞
The following safety standards apply to a DC input: UL 62368-1, cUR (CSA C22.2 No. 62368-1), EN/IEC 62368-1,
EN/IEC 62477-1, EN/IEC 61204-7.
Safety standard compliance is achievable by connecting a safety standard certified fuse to the (L1/+) side.
For a DC power input, connect (L1/+) side to (+), and (L3/-) side to (-).
To select a safety standard fuse, refer to Recommended circuit breakers and fuses on Data Sheet.
This BIS Standard is an Indian standard that has been in effect for this product since April 2021, and certification has
been acquired for some models to enable individual product export to India. (960 W only)

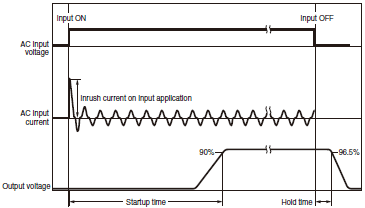

Inrush Current, Startup Time, and Output Hold Time

Note: Twice the normal inrush current will flow during parallel operation or for backup operation. Therefore, check the fusing
characteristics of fuses and operating characteristics of breakers making sure that the external fuses will not burn out
and the circuit breakers will not be activated by the inrush current.

Overload Protection

The overload protection circuit will protect the product from short-circuit currents and overcurrents.

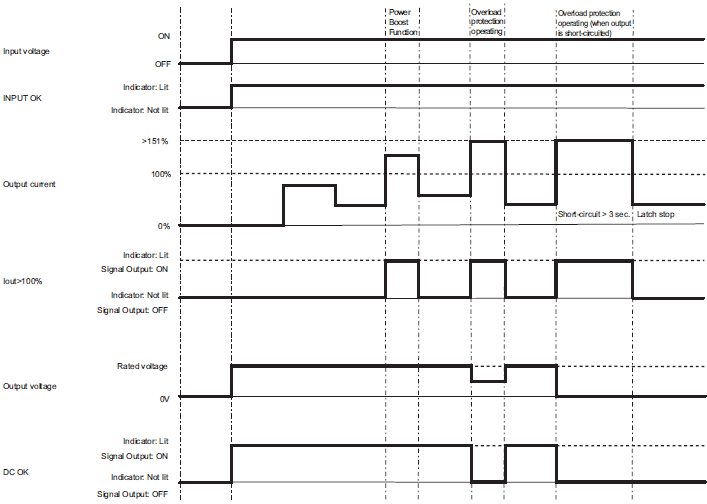

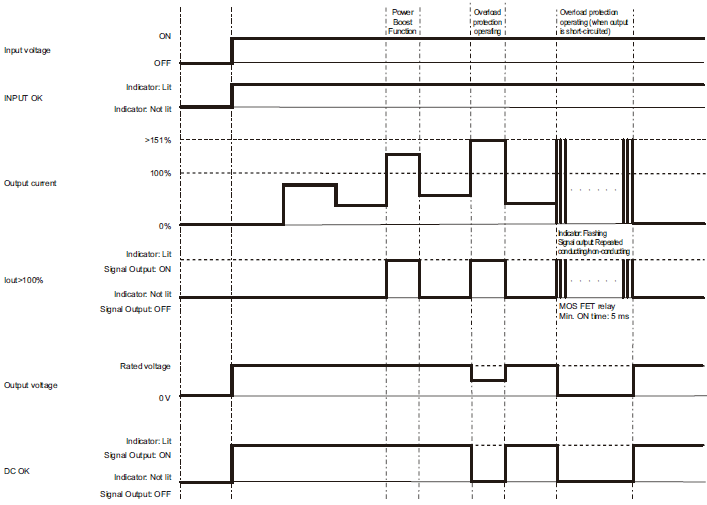

＜S8VK-WA240, 480, 960＞ 1 2

＜S8VK-WA202＞ (switch for parallel operation: SINGLE) 1 2 *3

When the load current reaches 151% to 175% of the rated current, the output voltage is automatically lowered. When the overload status is cleared, the output voltage is automatically recovered to the normal status.
The output voltage is cut off under the following conditions.
• A current exceeding the rating continues for more than 5 seconds
• The overload status continues for three seconds or longer while the output voltage is lowered due to overload protection
To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.

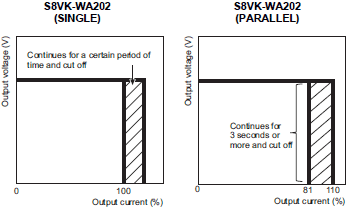

＜S8VK-WA202＞ (switch for parallel operation: PARALLEL) 1 2 *3

When the load current reaches 81% to 110% of the rated current, the output voltage is automatically lowered. When the overload status is cleared, the output voltage is automatically recovered to the normal status.
The output voltage is cut off under the following conditions.
• The overload status continues for three seconds or longer while the output voltage is lowered due to overload protection.
To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.

*1. Internal parts may occasionally deteriorate or be damaged if a short-circuited or overload status continues during
operation. Use the product after verifying that the Iout > 100% indicator is not lit or the Iout>100% signal output is OFF.
*2. Internal parts may possibly deteriorate or be damaged if the Power Supply is used for applications with inrush current or
overloading at the load end. Do not use the Power Supply for such applications.
*3. Do not turn ON the power again until the cause of the overvoltage has been removed.

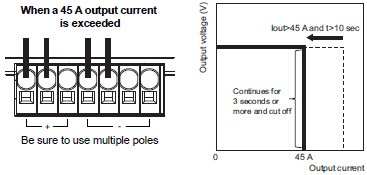

＜Only S8VK-WA20224＞ (for terminal block)

If use continues for longer than 10 seconds while a current exceeds a 45 A output current for each terminal of output, overload protection is activated. The maximum current of each terminal is limited so that it will be 45 A or lower and the output voltage is also lowered.
When the overload status is cleared, the output current and the output voltage are automatically recovered to the normal status.
The output voltage is cut off when the overload status continues for three seconds or longer while the output voltage is lowered due to overload protection. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.

Note: 1. The rated current per pole of the output terminals will be 45 A.
If a current exceeding 45 A will flow, wire using multiple poles at the same time.
2. If overload protection is activated for even one output terminal pole, the output voltage of all terminals will be
lowered.
3. Make the length and thickness of the wires connected to the load the same so that the current flowing through
them will be the same.

Overvoltage Protection

Overvoltage will be detected to prevent the load from being subjected to excessive voltage when the feedback circuit in the Power Supply fails, etc.
When an excessive voltage that is approximately 130% of the rated output voltage or more is output, the output voltage is cut OFF, preventing damage to the load due to overvoltage.
Reset the input power by turning it OFF for at least three minutes and then turning it back ON again.
Note: Do not turn ON the power again until the cause of the overvoltage has been removed.

INPUT OK Indicator

The INPUT OK indicator will light when the input voltage exceeds the lower limit value of the permissible range.
Note: The voltage may be applied even if the indicator does not light.
Be sure to check the input voltage when performing wiring.

DC OK Indicator/Signal Output

The DC OK indicator will light when the output voltage is more than 90% of the rated output voltage, and the internal MOS FET relay is conducted (turned ON).
Note: 1. The output voltage may be generated even if the indicator does not light. Be sure to check the output voltage when
connecting to the load.
2. This function monitors the voltage at the power output terminals.
To check the voltage accurately, measure the voltage at the load end.
3. If the output voltage is set to less than 90% of the rated output voltage, the indicator may go off and the signal
output may be turned OFF.

Iout > 100% Indicator/Signal Output

The Iout > 100% indicator lights up when the output current exceeds the rated output current, and the internal MOS FET relay is conducted (turned ON).
Note: 1. The Iout > 100% Indicator may light up, and the Iout > 100% Signal Output may turn ON during peak current
operation, however, the Power Supply can be used as long as the operating conditions specified in Peak current
(Data Sheet) are satisfied.
2. Even when the operating conditions for parallel operation are satisfied, the Iout>100% Indicator / Signal Output
may operate, so do not use the Iout>100% Indicator / Signal Output.
3. During a short-circuit, the indicator will operate intermittently due to the overload protection function. When this
happens, the indicator will blink in accordance with the intermittent operation, and the Iout > 100% signal output
will repeated turn ON and OFF.
The shortest ON time of the Iout > 100% signal output during intermittent operation is 5 ms. (Other than S8VK-
WA202)

Specifications of the Signal Output Terminals (between DC OK Signal Output Terminal and COM Terminal, and between Iout > 100% Signal Output Terminal and COM Terminal)

Since the Signal Output is composed of the MOS FET relay, it does not have any polarity.
30 VDC max., 50 mA max.
Residual voltage when the function is ON: 2 V max.
Leakage current when the function is OFF: 0.1 mA max.
Note: 1. Internal current control circuits are not provided internally for output signals. Do not allow the output current to
exceed 50 mA.
2. After completing wiring, confirm that the circuits operate correctly.

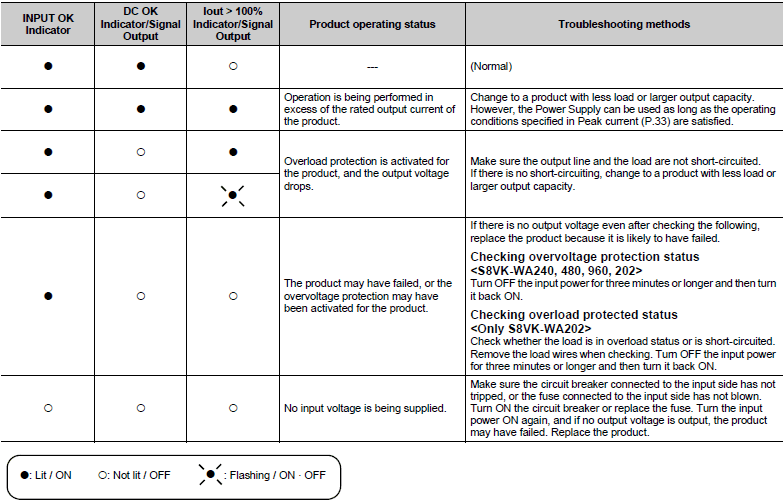

Identification of error locations at the input, product, and load side by the Indicator or Signal Output, and troubleshooting for the same (Maintenance point indicator)

Error locations at the input, product, and load side can be identified by the INPUT OK, DC OK, Iout > 100% Indicator / Signal Output.

Time chart (Operation of the Indicator/Signal Output according to the product status)

S8VK-WA 240, 480, 960

S8VK-WA202

last update: July 8, 2024

Product Category

Power Supplies / In Addition
- Power Supplies
  - Switch mode power supplies
    - S8VK-WA
    - S8VK-WB
    - S8VK-X
    - S8VK-S
    - S8FS-G
    - S8FS-C
    - S8VK-G
    - S8VK-T
    - S8VS
    - S8JX-P
    - S8AS
    - S8VK-C

Top of page

S8VK-WA

200 V Three-phase Input Power Supplies A solution to three-phase balance problems

Ratings, Characteristics, and Functions

Standard Compliance

Inrush Current, Startup Time, and Output Hold Time

Overload Protection

＜S8VK-WA240, 480, 960＞ *1 *2

＜S8VK-WA202＞ (switch for parallel operation: SINGLE) *1 *2 *3

＜S8VK-WA202＞ (switch for parallel operation: PARALLEL) *1 *2 *3

＜Only S8VK-WA20224＞ (for terminal block)

Overvoltage Protection

INPUT OK Indicator

DC OK Indicator/Signal Output

Iout > 100% Indicator/Signal Output

Specifications of the Signal Output Terminals (between DC OK Signal Output Terminal and COM Terminal, and between Iout > 100% Signal Output Terminal and COM Terminal)

Identification of error locations at the input, product, and load side by the Indicator or Signal Output, and troubleshooting for the same (Maintenance point indicator)

Time chart (Operation of the Indicator/Signal Output according to the product status)

S8VK-WA 240, 480, 960

S8VK-WA202

Product Category

＜S8VK-WA240, 480, 960＞ 1 2

＜S8VK-WA202＞ (switch for parallel operation: SINGLE) 1 2 *3

＜S8VK-WA202＞ (switch for parallel operation: PARALLEL) 1 2 *3
