Rated voltage	Enclosure ratings	Max. applicable motor capacity		Model
Rated voltage	Enclosure ratings	Normal Duty (ND)	Low Duty (LD)/ Very Low Duty (VLD)	Model
3-phase 200 VAC	IP20	0.4 kW	0.75 kW	3G3RX2-A2004
		0.75 kW	1.5 kW	3G3RX2-A2007
		1.5 kW	2.2 kW	3G3RX2-A2015
		2.2 kW	3.7 kW	3G3RX2-A2022
		3.7 kW	5.5 kW	3G3RX2-A2037
		5.5 kW	7.5 kW	3G3RX2-A2055
		7.5 kW	11 kW	3G3RX2-A2075
		11 kW	15 kW	3G3RX2-A2110
		15 kW	18.5 kW	3G3RX2-A2150
		18.5 kW	22 kW	3G3RX2-A2185
		22 kW	30 kW	3G3RX2-A2220
		30 kW	37 kW	3G3RX2-A2300
		37 kW	45 kW	3G3RX2-A2370
		45 kW	55 kW	3G3RX2-A2450
		55 kW	75 kW	3G3RX2-A2550
3-phase 400 VAC	IP20	0.75 kW	1.5 kW	3G3RX2-A4007
		1.5 kW	2.2 kW	3G3RX2-A4015
		2.2 kW	3.7 kW	3G3RX2-A4022
		3.7 kW	5.5 kW	3G3RX2-A4037
		5.5 kW	7.5 kW	3G3RX2-A4055
		7.5 kW	11 kW	3G3RX2-A4075
		11 kW	15 kW	3G3RX2-A4110
		15 kW	18.5 kW	3G3RX2-A4150
		18.5 kW	22 kW	3G3RX2-A4185
		22 kW	30 kW	3G3RX2-A4220
		30 kW	37 kW	3G3RX2-A4300
		37 kW	45 kW	3G3RX2-A4370
		45 kW	55 kW	3G3RX2-A4450
		55 kW	75 kW	3G3RX2-A4550
	IP00	75 kW	90 kW	3G3RX2-B4750
		90 kW	110 kW	3G3RX2-B4900
		110 kW	132 kW	3G3RX2-B411K
		132 kW	160 kW	3G3RX2-B413K

Name	Model
EtherCAT Communication Unit	3G3AX-RX2-ECT

Name	Specifications		Model
Regenerative Braking Units	3-phase 200 VAC	General purpose with Braking resistor	3G3AX-RBU21
		High Regeneration purpose with Braking resistor	3G3AX-RBU22
		General purpose for 30 kW *	3G3AX-RBU23
		General purpose for 55 kW *	3G3AX-RBU24
	3-phase 400 VAC	General purpose with Braking resistor	3G3AX-RBU41
		General purpose for 30 kW *	3G3AX-RBU42
		General purpose for 55 kW *	3G3AX-RBU43
Braking Resistor	Compact type	Resistor 120 W, 180 Ω	3G3AX-RBA1201
		Resistor 120 W, 100 Ω	3G3AX-RBA1202
		Resistor 120 W, 50 Ω	3G3AX-RBA1203
		Resistor 120 W, 35 Ω	3G3AX-RBA1204
	Standard type	Resistor 200 W, 180 Ω	3G3AX-RBB2001
		Resistor 200 W, 100 Ω	3G3AX-RBB2002
		Resistor 300 W, 50 Ω	3G3AX-RBB3001
		Resistor 400 W, 35 Ω	3G3AX-RBB4001
	Medium capacity type	Resistor 400 W, 50 Ω	3G3AX-RBC4001
		Resistor 600 W, 35 Ω	3G3AX-RBC6001
		Resistor 1200 W, 17 Ω	3G3AX-RBC12001

* The braking resistor is optionally required.

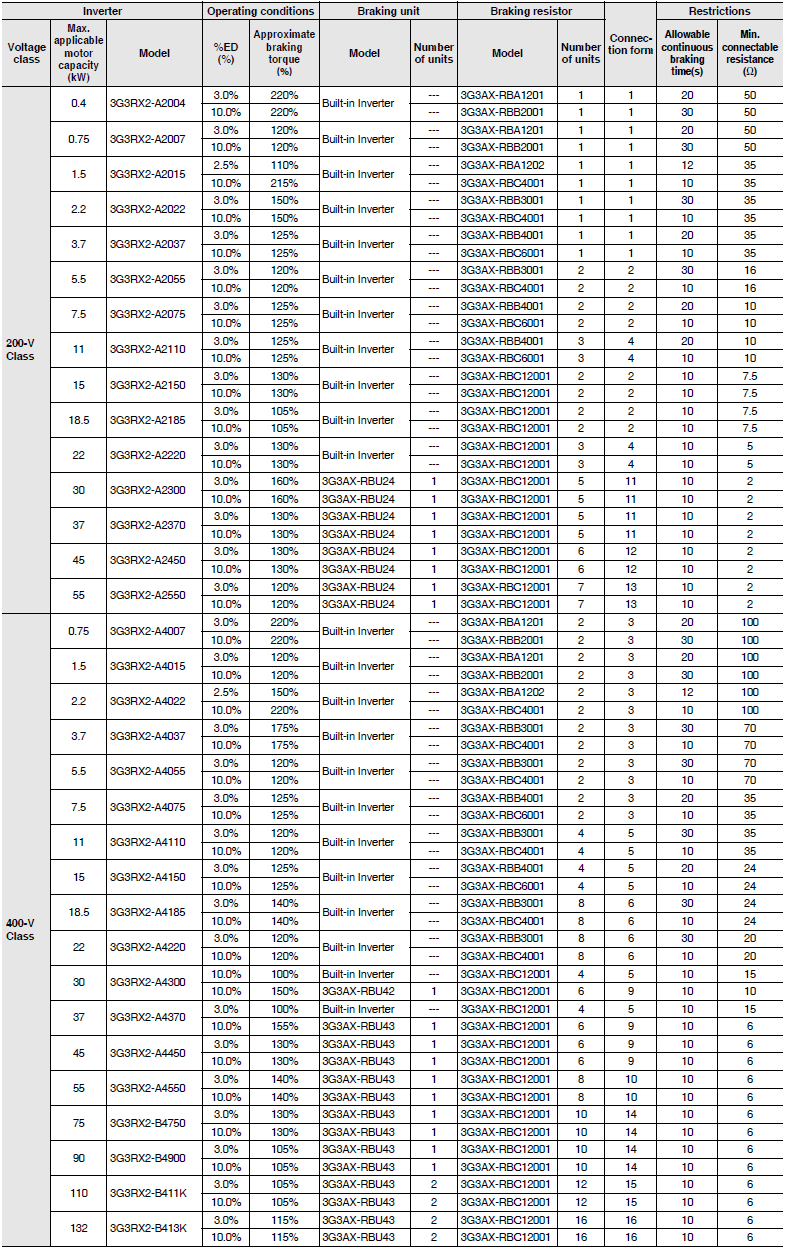

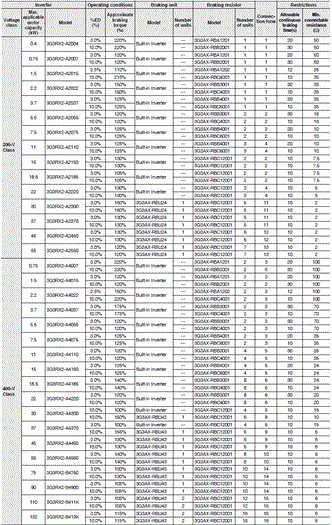

Select the combination of the regenerative braking unit(s) and the braking resistor(s) as follows, according to your inverter. If the usage rate exceeds 10% ED, or if you need a torque larger than the approximate braking torque, you need to follow the instruction provided in Braking Resistor Selection.
• Inverter: Select the model of your inverter. The table below assumes that your inverter is used in the heavy load mode and
connected to a single motor with the same capacity. Make sure that the approximate braking torque in the table
shows the assumed value per a motor with the same capacity at ND mode. When using this inverter at LD or VLD
mode, you need to calculate the torque value by dividing VLD by ND.
• Operating conditions: Show the torque during deceleration and the deceleration time (in % ED) calculated as a percentage
of the cycle time for 1 cycle of operation including the stop time.
• Braking unit/Breaking resistor: Show the required the model and number of units.

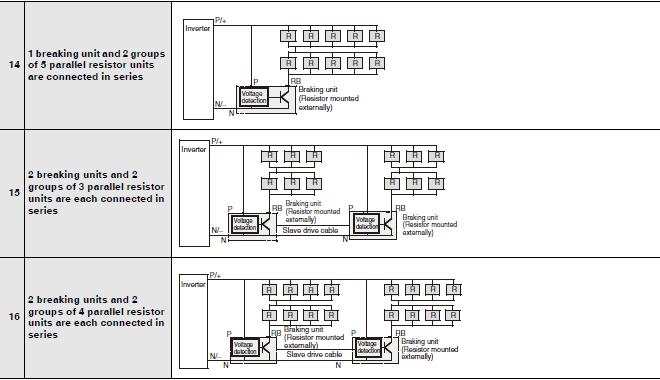

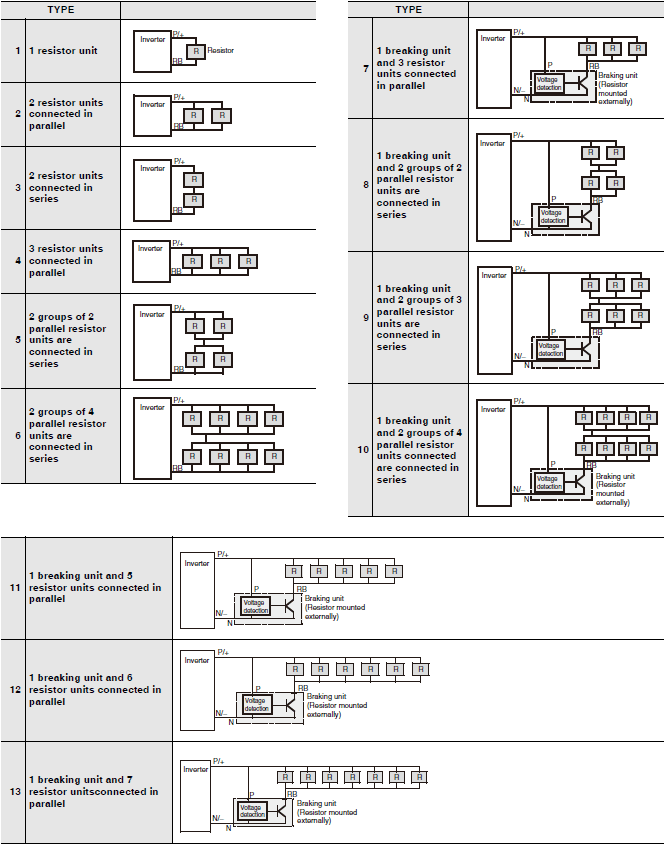

• Connection form: Show the configuration of the regenerative braking unit(s) and braking resistor(s) illustrated in the
connection form table below.
• Restrictions: Show the maximum deceleration time allowable for the combination shown here and the minimum resistance
that can be connected to the inverter's built-in regenerative braking circuit or external regenerative braking unit(s).

Name	Model
Radio Noise Filter	3G3AX-ZCL2
Radio Noise Filter	3G3AX-ZCL1

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
Input Noise Filter	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-NFI21
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-NFI22
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-NFI23
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-NFI24
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-NFI25
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-NFI26
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-NFI27
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-NFI28
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94	3G3AX-NFI29
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-NFI2A
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-NFI2B
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240	3G3AX-NFI2C
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-NFI41
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-NFI42
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-NFI43
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-NFI44
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32	3G3AX-NFI45
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-NFI46
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47	3G3AX-NFI47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-NFI48
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-NFI49
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-NFI4A
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
EMC Noise Filter *	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-EFI41
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-EFI42
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-EFI43
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-EFI44
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-EFI45
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-EFI47
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-EFI48
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-EFI49
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94	3G3AX-EFI4A
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-EFI4B
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	---
				VLD	45	186	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-EFI41
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-EFI42
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-EFI43
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-EFI44
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
				LD	15	32	3G3AX-EFI45
				VLD	15	32
		15	3G3RX2-A4150	ND	15	35
				LD	18.5	41	3G3AX-EFI46
				VLD	18.5	41
		18.5	3G3RX2-A4185	ND	18.5	42
LD				22	47	3G3AX-EFI47
VLD				22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-EFI48
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-EFI49
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-EFI4A
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	3G3AX-EFI4B
			VLD	75	149
75		3G3RX2-B4750	ND	75	164
			LD	90	176
			VLD	90	176
90		3G3RX2-B4900	ND	90	194
			LD	110	199	---
			VLD	110	199	---

* Although an EMC Noise Filter is built into the RX2, it may be necessary to provide another EMC Noise Filter when the
cable between the Motor and the Inverter is long.

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
Output Noise Filter	200-V class	0.4	3G3RX2-A2004	ND	0.4	3	3G3AX-NFO01
				LD	0.75	3.7
				VLD	0.75	3.7
		0.75	3G3RX2-A2007	ND	0.75	5
				LD	1.5	6.3	3G3AX-NFO02
				VLD	1.5	6.3
		1.5	3G3RX2-A2015	ND	1.5	7.5
				LD	2.2	9.4
				VLD	2.2	9.4
		2.2	3G3RX2-A2022	ND	2.2	10.5
				LD	3.7	12	3G3AX-NFO03
				VLD	3.7	12
		3.7	3G3RX2-A2037	ND	3.7	16.5
				LD	5.5	19.6
				VLD	5.5	19.6
		5.5	3G3RX2-A2055	ND	5.5	24
				LD	7.5	30	3G3AX-NFO04
				VLD	7.5	30
		7.5	3G3RX2-A2075	ND	7.5	32
				LD	11	44
				VLD	11	44
		11	3G3RX2-A2110	ND	11	46
				LD	15	58	3G3AX-NFO05
				VLD	15	58
		15	3G3RX2-A2150	ND	15	64
				LD	18.5	73	3G3AX-NFO06
				VLD	18.5	73
		18.5	3G3RX2-A2185	ND	18.5	76
				LD	22	85
				VLD	22	85
		22	3G3RX2-A2220	ND	22	95
				LD	30	113	3G3AX-NFO07
				VLD	30	113
		30	3G3RX2-A2300	ND	30	121
				LD	37	140
				VLD	37	140
		37	3G3RX2-A2370	ND	37	145
				LD	45	169	---
				VLD	45	169	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.5	3G3AX-NFO01
				LD	1.5	3.1
				VLD	1.5	3.1
		1.5	3G3RX2-A4015	ND	1.5	3.8
				LD	2.2	4.8
				VLD	2.2	4.8
		2.2	3G3RX2-A4022	ND	2.2	5.3
				LD	3.7	6.7	3G3AX-NFO02
				VLD	3.7	6.7
		3.7	3G3RX2-A4037	ND	3.7	9
				LD	5.5	11.1	3G3AX-NFO03
				VLD	5.5	11.1
		5.5	3G3RX2-A4055	ND	5.5	14
				LD	7.5	16
				VLD	7.5	16
		7.5	3G3RX2-A4075	ND	7.5	19
				LD	11	22
				VLD	11	22
		11	3G3RX2-A4110	ND	11	25
				LD	15	29	3G3AX-NFO04
				VLD	15	29
		15	3G3RX2-A4150	ND	15	32
				LD	18.5	37
				VLD	18.5	37
		18.5	3G3RX2-A4185	ND	18.5	38
LD				22	43
VLD				22	43
22		3G3RX2-A4220	ND	22	48
			LD	30	57	3G3AX-NFO05
			VLD	30	57
30		3G3RX2-A4300	ND	30	58
			LD	37	70
			VLD	37	70
37		3G3RX2-A4370	ND	37	75
			LD	45	85	3G3AX-NFO06
			VLD	45	85
45		3G3RX2-A4450	ND	45	91
			LD	55	105	3G3AX-NFO07
			VLD	55	105
55		3G3RX2-A4550	ND	55	112
			LD	75	135
			VLD	75	135
75		3G3RX2-B4750	ND	75	149
			LD	90	160	---
			VLD	90	160	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
DC Reactor	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-DL2004
				LD	0.75	3.9	3G3AX-DL2007
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2	3G3AX-DL2015
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-DL2022
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9	3G3AX-DL2037
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-DL2055
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37	3G3AX-DL2075
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-DL2110
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64	3G3AX-DL2150
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-DL2220
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120	3G3AX-DL2300
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150	3G3AX-DL2370
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-DL2450
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240	3G3AX-DL2550
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-DL4007
				LD	1.5	4.3	3G3AX-DL4015
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9	3G3AX-DL4022
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1	3G3AX-DL4037
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-DL4055
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20	3G3AX-DL4075
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-DL4110
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32	3G3AX-DL4150
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-DL4220
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-DL4300
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77	3G3AX-DL4370
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-DL4450
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116	3G3AX-DL4550
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Inverter						Model
Name	Voltage class	Max. applicable motor capacity [kW]	Model	Load specification selection	Max. applicable motor capacity [kW]	Rated input current [A]	Model
AC Reactor	200-V class	0.4	3G3RX2-A2004	ND	0.4	3.3	3G3AX-AL2025
				LD	0.75	3.9
				VLD	0.75	3.9
		0.75	3G3RX2-A2007	ND	0.75	5.5
				LD	1.5	7.2
				VLD	1.5	7.2
		1.5	3G3RX2-A2015	ND	1.5	8.3
				LD	2.2	10.8	3G3AX-AL2055
				VLD	2.2	10.8
		2.2	3G3RX2-A2022	ND	2.2	12
				LD	3.7	13.9
				VLD	3.7	13.9
		3.7	3G3RX2-A2037	ND	3.7	18
				LD	5.5	23	3G3AX-AL2110
				VLD	5.5	23
		5.5	3G3RX2-A2055	ND	5.5	26
				LD	7.5	37
				VLD	7.5	37
		7.5	3G3RX2-A2075	ND	7.5	35
				LD	11	48	3G3AX-AL2220
				VLD	11	48
		11	3G3RX2-A2110	ND	11	51
				LD	15	64
				VLD	15	64
		15	3G3RX2-A2150	ND	15	70
				LD	18.5	80	3G3AX-AL2330
				VLD	18.5	80
		18.5	3G3RX2-A2185	ND	18.5	84
				LD	22	94
				VLD	22	94
		22	3G3RX2-A2220	ND	22	105
				LD	30	120	3G3AX-AL2500
				VLD	30	120
		30	3G3RX2-A2300	ND	30	133
				LD	37	150
				VLD	37	150
		37	3G3RX2-A2370	ND	37	160
				LD	45	186	3G3AX-AL2750
				VLD	45	186
		45	3G3RX2-A2450	ND	45	200
				LD	55	240
				VLD	55	240
		55	3G3RX2-A2550	ND	55	242
				LD	75	280	---
				VLD	75	280	---
	400-V class	0.75	3G3RX2-A4007	ND	0.75	2.8	3G3AX-AL4025
				LD	1.5	4.3
				VLD	1.5	4.3
		1.5	3G3RX2-A4015	ND	1.5	4.2
				LD	2.2	5.9	3G3AX-AL4055
				VLD	2.2	5.9
		2.2	3G3RX2-A4022	ND	2.2	5.8
				LD	3.7	8.1
				VLD	3.7	8.1
		3.7	3G3RX2-A4037	ND	3.7	9.8
				LD	5.5	13.3	3G3AX-AL4110
				VLD	5.5	13.3
		5.5	3G3RX2-A4055	ND	5.5	15
				LD	7.5	20
				VLD	7.5	20
		7.5	3G3RX2-A4075	ND	7.5	21
				LD	11	24	3G3AX-AL4220
				VLD	11	24
		11	3G3RX2-A4110	ND	11	28
LD				15	32
VLD				15	32
15		3G3RX2-A4150	ND	15	35
			LD	18.5	41	3G3AX-AL4330
			VLD	18.5	41
18.5		3G3RX2-A4185	ND	18.5	42
			LD	22	47
			VLD	22	47
22		3G3RX2-A4220	ND	22	53
			LD	30	63	3G3AX-AL4500
			VLD	30	63
30		3G3RX2-A4300	ND	30	64
			LD	37	77
			VLD	37	77
37		3G3RX2-A4370	ND	37	83
			LD	45	94	3G3AX-AL4750
			VLD	45	94
45		3G3RX2-A4450	ND	45	100
			LD	55	116
			VLD	55	116
55		3G3RX2-A4550	ND	55	121
			LD	75	149	---
			VLD	75	149	---

Name	Specifications	Model
PG Option Unit	For Position or Frequency Control	3G3AX-RX2-PG01
Digital Operator Connecting Cable	RJ45 connector, EIA568-compliant cable (UTP category 5), Cable Length 1 m	3G3AX-OPCN1
Digital Operator Connecting Cable	RJ45 connector, EIA568-compliant cable (UTP category 5), Cable Length 3 m	3G3AX-OPCN3

Use a straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (aluminum tape and braiding) for EtherCAT.

Item		Recommended manufacturer	Cable length (m)	Model
Wire gauge and number of pairs: AWG26, 4-pair cable Cable sheath material: PUR	Cable with Connectors on Both Ends (RJ45/RJ45) Standard RJ45 plugs 1 Cable color: Yellow 2	OMRON	0.3	XS6W-6PUR8SS30CM-YF
			0.5	XS6W-6PUR8SS50CM-YF
			1	XS6W-6PUR8SS100CM-YF
			2	XS6W-6PUR8SS200CM-YF
			3	XS6W-6PUR8SS300CM-YF
			5	XS6W-6PUR8SS500CM-YF
Wire gauge and number of pairs: AWG22, 2-pair cable	Cable with Connectors on Both Ends (RJ45/RJ45) Rugged RJ45 plugs *2 Cable color: Light blue	OMRON	0.3	XS5W-T421-AMD-K
			0.5	XS5W-T421-BMD-K
			1	XS5W-T421-CMD-K
			2	XS5W-T421-DMD-K
			5	XS5W-T421-GMD-K
			10	XS5W-T421-JMD-K
	Cable with Connectors on Both Ends (M12 Straight/RJ45) Shield strengthening connector cable *3 M12/Smartclick connector and rugged RJ45 plug Cable color: Black	OMRON	0.5	XS5W-T421-BMC-SS
			1	XS5W-T421-CMC-SS
			2	XS5W-T421-DMC-SS
			3	XS5W-T421-EMC-SS
			5	XS5W-T421-GMC-SS
			10	XS5W-T421-JMC-SS

*1. Cables with standard RJ45 plugs are available in the following lengths: 0.2 m, 0.3 m, 0.5 m, 1 m, 1.5 m, 2 m, 3 m, 5 m,
7.5 m, 10 m, 15 m, 20 m.
Cables with rugged RJ45 plugs are available in the following lengths: 0.3 m, 0.5 m, 1 m, 2 m, 3 m, 5 m, 10 m, 15 m.
For details, refer to the Industrial Ethernet Connectors Catalog (Cat. No. G019).
*2. Cable colors are available in yellow, green, and blue.
*3. For details, contact your OMRON representative.

Item		Recommended manufacturer	Model
Wire gauge and number of pairs: AWG24, 4-pair cable	Cable	Kuramo Electric Co.	*KETH-SB 1**
Wire gauge and number of pairs: AWG24, 4-pair cable	RJ45 Connector	Panduit Corporation	*MPS588-C 1**
Wire gauge and number of pairs: AWG22, 2-pair cable	Cable	Kuramo Electric Co.	*KETH-PSB-OMR 2**
	Cable	JMACS Japan Co., Ltd.	*PNET/B 2**
	RJ45 Assembly Connector	OMRON	*XS6G-T421-1 2**

*1. We recommend you to use the above Cable and RJ45 Connector together.
*2. We recommend you to use the above Cable and RJ45 Assembly Connector together.

The required Support Software depends on the Controller to connect. Please check the following table when purchasing the Support Software.

Item	Omron PLC System	Omron Machine Automation Controller System
Controller	CS, CJ, CP, and other series	NJ series
Inverter	Inverter RX2-series	Inverter RX2-series with EtherCAT Communication Unit 3G3AX-RX2-ECT
Software	FA Integrated Tool Package CX-One (CX-Drive: Version 3.00 or higher)	Automation Software Sysmac Studio (Version 1.47 or higher)

Product name	Specifications			Model
Product name		Number of licenses	Media	Model
FA Integrated Tool Package CX-One Ver.4.[]	The CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One Version 4.[] includes CX-Programmer Ver.3.[]	1 license *1	DVD	CXONE-AL01D-V4

*1. Multi licenses are available for the CX-One (3, 10, 30, or 50 licenses).
Note: 1. For details, refer to the CX-One Catalog (Cat. No. R134), visit your local OMRON website.
　　　2. The RX2-series is supported by CX-Drive version 3.00 or higher.

The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCAT Slave, and the HMI.

For details, refer to your local OMRON website and Sysmac Studio Catalog (Cat. No. P138).
Note: The RX-series with EtherCAT Communication Unit 3G3AX-RX2-ECT version 1.0 or later is supported by Sysmac Studio version 1.47 or higher.

3G3RX2

Save energy and maximize performance with versatile inverter

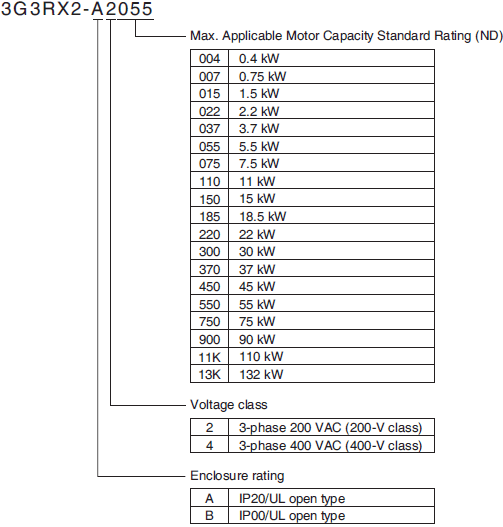

Interpreting Model Numbers

Ordering Information

RX2 series Inverter Models

Communication Unit

Related Options

Regenerative Braking Unit and Braking Resistor Combination

Connection configuration

Recommended EtherCAT Communications Cables

Cable with Connectors

Cables/Connectors

Software

How to Select Required Support Software for Your Controller

FA Integrated Tool Package CX-One

Automation Software Sysmac Studio

Product Category
