Industrial Automation

XW6T

Common Terminal Blocks with Visible Indicators

XW6T

Our Value Design Products Increase the Value of Your Control Panels. Contributing to downsize control panels and save work. It can proper wiring without skillful operators, because of indicators make wiring completion simply visible.

last update: April 1, 2019

(Unit: mm)

Model

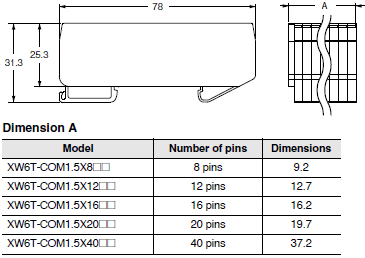

XW6T-COM1.5X[][][][]

XW6T Dimensions 2

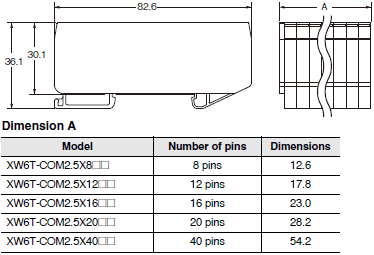

XW6T-COM2.5X[][][][]

XW6T Dimensions 3

Accessories (Order separately)

(For addition) Terminal Block

XW6T-COM1.5

XW6T Dimensions 6

XW6T-COM2.5

XW6T Dimensions 7

Short Bars

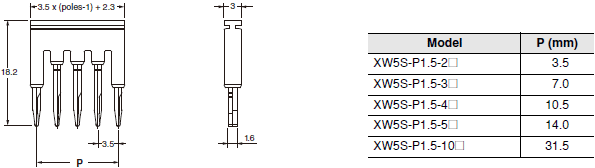

XW5S-P1.5-[]

XW6T Dimensions 9

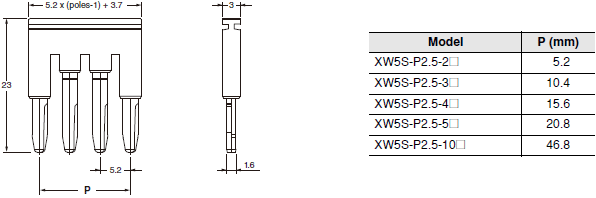

XW5S-P2.5-[]

XW6T Dimensions 10

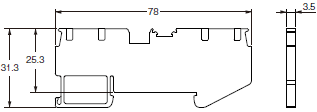

End Cover

XW6E-COM1.5

XW6T Dimensions 12

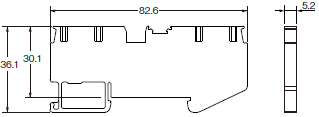

XW6E-COM2.5

XW6T Dimensions 13

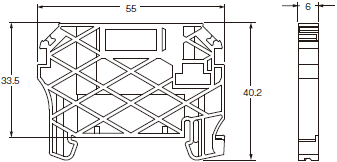

End Brackets

XW5Z-EP6

XW6T Dimensions 15

last update: April 1, 2019
