eCobra 800

SCARA Robots (EtherCAT (NJ501-R) version)

eCobra 800

Large SCARA robot for precision machining, assembly, and material handling

ACE software is available to download from the Omron US website.

(Unit: mm)

eCobra 800

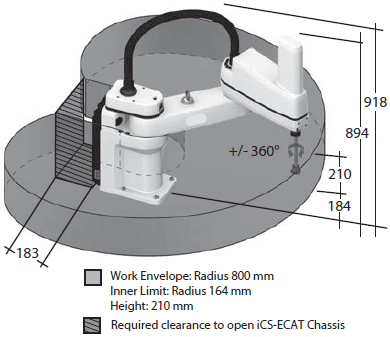

eCobra 800 Dimensions 1

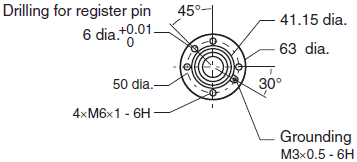

Tool Flange

eCobra 800 Dimensions 2

Footprint

eCobra 800 Dimensions 3

Front panel

eCobra 800 Dimensions 4
