XW2K

Ultra-Compact Interface Wiring System

XW2K

The Industry’s Smallest*1 Compact Interface Wiring System to Reduce Work and Save Space on Control Panels. *1. Results of OMRON survey conducted in March, 2022

(Unit: mm)

For PLC Connection

For OMRON, Yokogawa Electric, or Hitachi Industrial Equipment Systems PLC Connection

XW2K-40G-O32A
XW2K-40G-O32B
XW2K-40G-O32C

XW2K Dimensions 3

For Mitsubishi Electric, Fuji Electric, or KEYENCE PLC Connection

XW2K-40G-M32

XW2K Dimensions 5

XW2K-34G-K32

XW2K Dimensions 6

For PLC Connection (Integrated Common Terminal Type)

For OMRON PLC Connection

XW2K-20G-O16A-IN

XW2K Dimensions 9

XW2K-20G-O16B-OUT

XW2K Dimensions 10

For OMRON, Yokogawa Electric, or Hitachi Industrial Equipment Systems PLC Connection

XW2K-40G-O32A-IN
XW2K-40G-O32C-IN

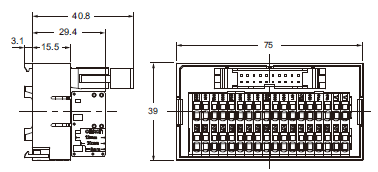

XW2K Dimensions 12

XW2K-40G-O32B-OUT
XW2K-40G-O32C-OUT

XW2K Dimensions 13

For Mitsubishi Electric or Fuji Electric PLC Connection

XW2K-40G-M32-IN

XW2K Dimensions 15

XW2K-40G-M32-OUT

XW2K Dimensions 16

For KEYENCE PLC Connection

XW2K-34G-K32-IN

XW2K Dimensions 18

XW2K-34G-K32-OUT

XW2K Dimensions 19

General-Purpose

XW2K-40G-T

XW2K Dimensions 21
