E8F2

Digital Pressure Sensor

E8F2

Pressure Sensor with Easy-to-Read LED Display

(Unit: mm)

Sensors

E8F2

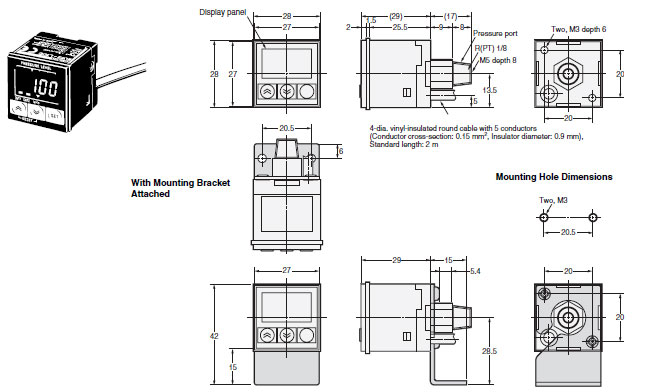

E8F2 Dimensions 2

Accessories (Order Separately)

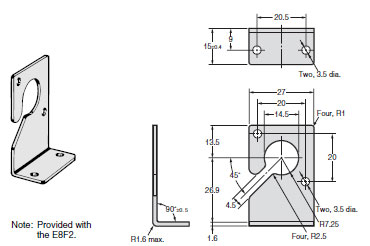

Mounting Bracket
E89-F3

E8F2 Dimensions 4

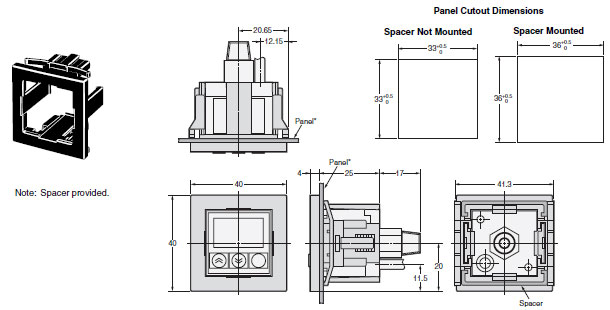

Panel-mounting Bracket
E89-F4

E8F2 Dimensions 5

* Applicable panel thickness: 1.2 to 4 mm
Note: The spacer can be removed from the Panel-mounting Bracket.
           The panel cutout dimensions can be adjusted as shown above by attaching or detaching the spacer.
