G70D-VSOC16 / VFOM16

Relay Terminal (Vertical Type)

G70D-VSOC16 / VFOM16

Easy-to-use, Space-saving 16-point Output Block

last update: April 10, 2017

(Unit: mm)

Relay Terminals

G70D-VSOC16
G70D-VFOM16

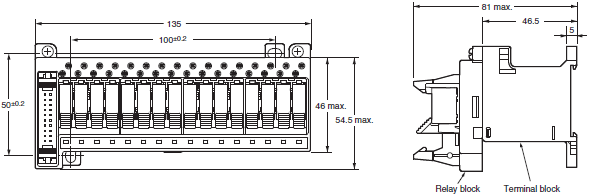

G70D-VSOC16 / VFOM16 Dimensions 2

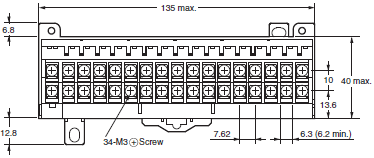

Terminal block (without expansion terminals)

G70D-VSOC16 / VFOM16 Dimensions 3

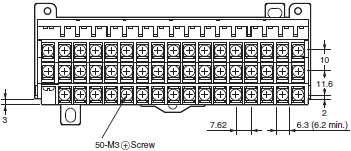

Terminal block (expansion terminal block connected)

G70D-VSOC16 / VFOM16 Dimensions 4

Mounting Hole Dimensions

G70D-VSOC16 / VFOM16 Dimensions 5

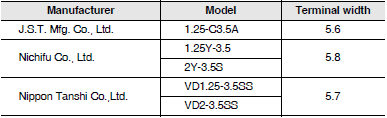

Examples of compatible Y fork type crimp terminals for M3.5

G70D-VSOC16 / VFOM16 Dimensions 6

Accessories (Order Separately)

Expansion Terminal Block

G70D-ET

G70D-VSOC16 / VFOM16 Dimensions 8

Short Bar

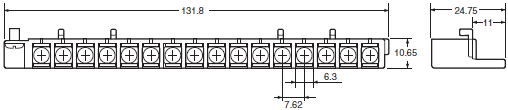

G6D-4-SB

G70D-VSOC16 / VFOM16 Dimensions 9
