Industrial Automation
Discontinued On Mar. 2015
FZM1 Series
Vision Sensors for Positioning
High speed and Precise Positioning
* Information in this page is a reference that you created on the basis of information in the product catalog before the end of production, may be different from the current situation, such as goods for / supported standards options / price / features of the product. Before using, please check the compatibility and safety system.
Related Contents
last update: July 2, 2014
(Unit: mm)

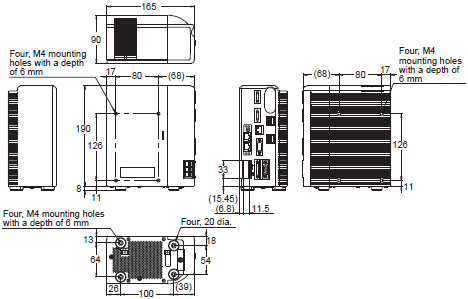

Controllers
FZM1-35[]-ECT
Cameras
High-speed Cameras
FZ-SH
FZ-SHC

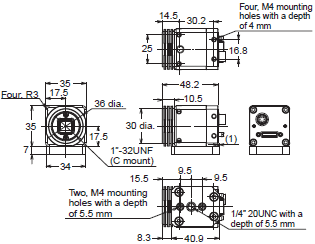

Digital cameras
300,000-pixel camera
FZ-S
FZ-SC
2 million-pixel camera
FZ-S2M
FZ-SC2M
Small digital cameras
Camera head

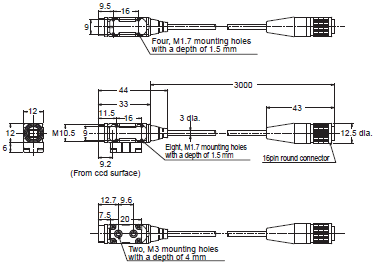

Flat camera
FZ-SF
FZ-SFC

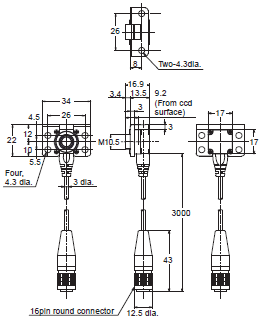

Pen-shaped camera
FZ-SP
FZ-SPC
Camera amplifier
Can be used for both flat cameras and pen-shaped cameras
Intelligent camera
FZ-SLC100
Cable
Camera Cable

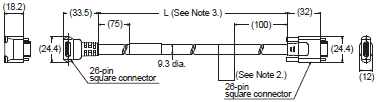

Camera Cable
FZ-VS
Long-distance Camera Cable
FZ-VS2
Bend resistant Cable
FZ-VSB

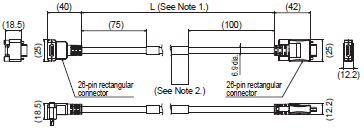

Long-distance Right-angle Camera Cable
FZ-VSL2
Right-angle Camera Cable
FZ-VSL
Note: 1. Cable is available in 2 m/5 m/10 m.
The FZ-VS, FZ-VSB, and FZ-VSL are also available with a cable length of 3.5 m.
2. Each camera cables has polarity.
Please ensure that the name plate side of the cable is connected to the controller.
3. Cable is available in 15 m.
The FZ-VS, FZ-VSB, and FZ-VSL are also available with a cable length of 3.5 m.
2. Each camera cables has polarity.
Please ensure that the name plate side of the cable is connected to the controller.
3. Cable is available in 15 m.

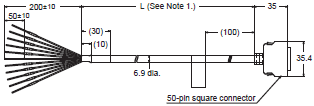

Parallel Cable
FZ-VP
Note: 1. cable is available in 2 m/5 m.
FZ-VPX
Note: 1. cable is available in 2 m/5 m.
Monitor Cable
FZ-VM
Note: 1. cable is available in 2 m/5 m.

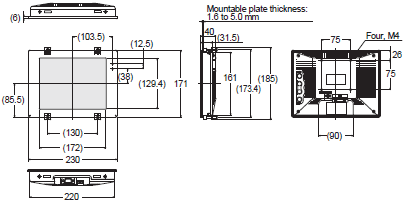

LCD Monitor
FZ-M08
Camera Cable Extension Unit
FZ-VSJ

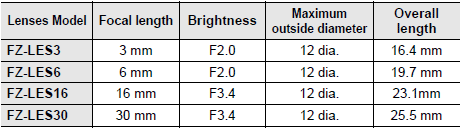

Lens for small camera
FZ-LES Series
Extension Tubes for small camera
FZ-LESR
last update: July 2, 2014
