Connector-Terminal Block Conversion Units for PLCs
Connector-Terminal Block Conversion Units Designed Specifically to Connect PLCs
Related Contents
Application Solutions
last update: April 1, 2024
(Unit: mm)
Models for Connection to OMRON PLCs
with power supply terminals
PLC Connecting Cables
XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector
Wiring Diagram
XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin Connector to One 40-pin MIL Connector
Wiring Diagram

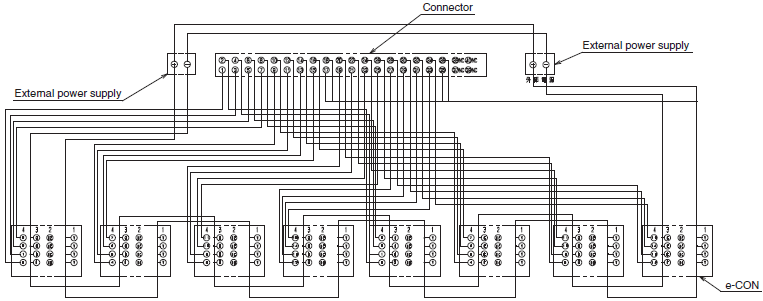

e-CON Type

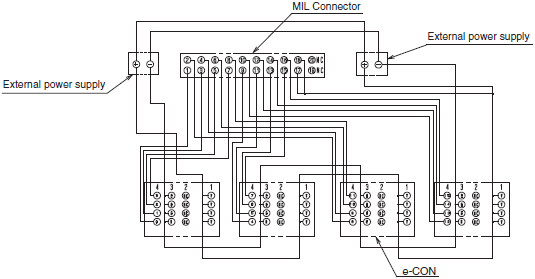

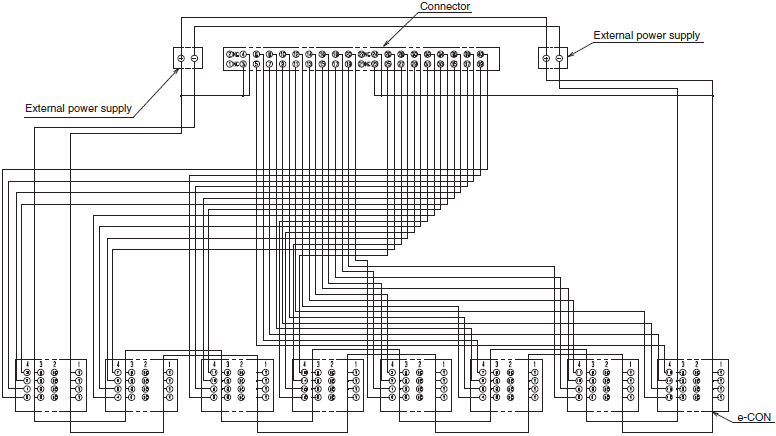

Wiring Diagram

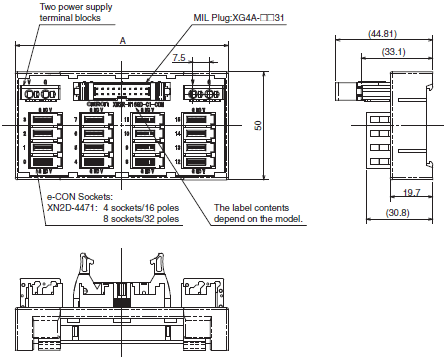

XW2R-N16GD-C1-COM
XW2R-N32GD-C1-COM
XW2R-N32GD-C2-COM
without power supply terminals

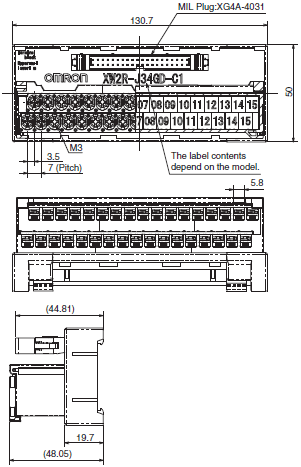

Phillips screw
Wiring Diagram
XW2R-J34GD-C1
XW2R-J34GD-C2
XW2R-J34GD-C3
XW2R-J34GD-C4

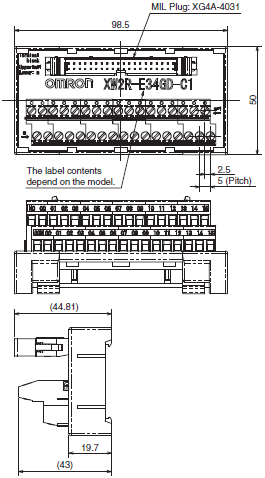

Slotted screw (rise up)
Wiring Diagram
XW2R-E34GD-C1
XW2R-E34GD-C2
XW2R-E34GD-C3
XW2R-E34GD-C4
Models for Connection to Mitsubishi PLCs
with power supply terminals
MIL Connector
XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector
Wiring Diagram
XW2Z-[][][]AA
One 14-pin MIL Connector to One 14-pin MIL Connector
Wiring Diagram

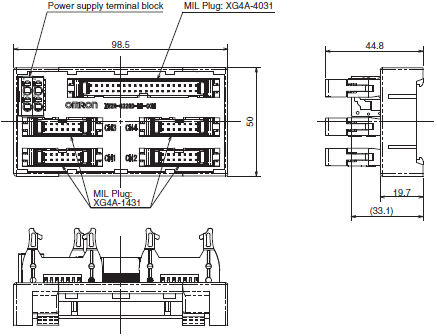

XW2R-G32GD-M1-COM

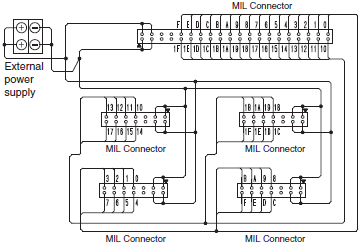

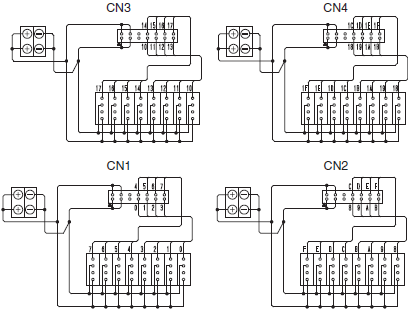

Wiring Diagram

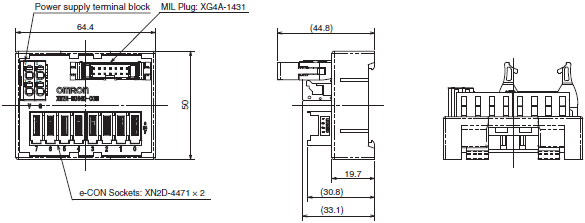

XW2R-N08GD-COM

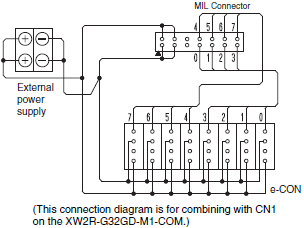

The e-CON address assignments are for combining the XW2R-G32GD-M1-COM with four XW2R-N08GD-COM.
Wiring Diagram
without power supply terminals
XW2Z-[][][]B, XW2Z-[][][][]BF-L
Connectors: One 40-pin Connector Made by Fujitsu/Otax Component, Ltd. to One 40-pin MIL Connector
Wiring Diagram
Phillips screw
Wiring Diagram

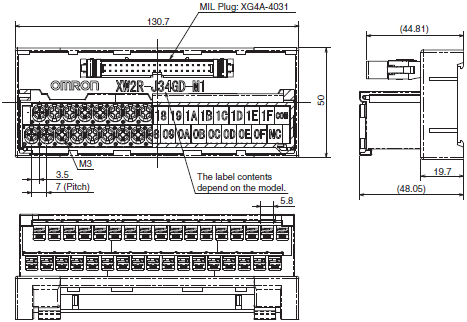

XW2R-J34GD-M1
XW2R-J34GD-M2

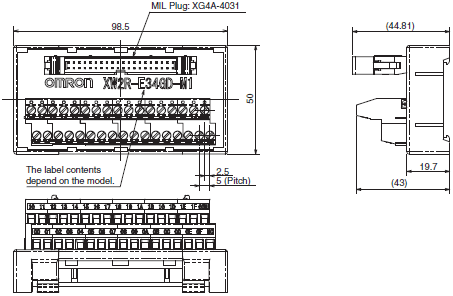

Slotted screw (rise up)
Wiring Diagram
XW2R-E34GD-M1
XW2R-E34GD-M2
Models for Keyence PLCs
without power supply terminals
XW2Z-[][][]EE, XW2Z-[][][][]EE-L
Connectors: One 34-pin MIL Connector to One 34-pin MIL Connector
Wiring Diagram
XW2Z-[][][]K, XW2Z-[][][][]FF-L
Connectors: One 40-pin MIL Connector to One 40-pin MIL Connector
Wiring Diagram
Phillips screw
Wiring Diagram

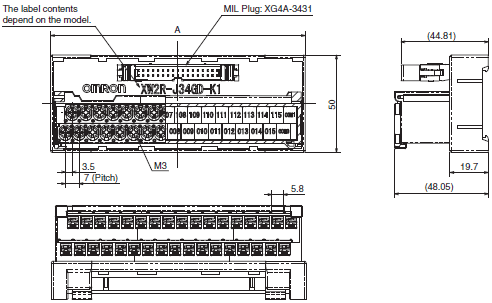

XW2R-J34GD-K1
XW2R-J40GD-K2
last update: April 1, 2024
