H3DKZ

22.5-mm-width Timers

H3DKZ

Range of DIN Track-mounted, Standard 22.5-mm-width Timers

last update: April 1, 2019

(Unit: mm)

Timers

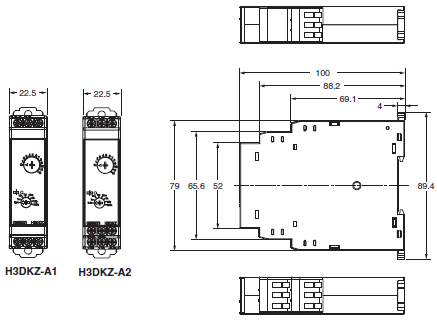

H3DKZ-A

H3DKZ Dimensions 2

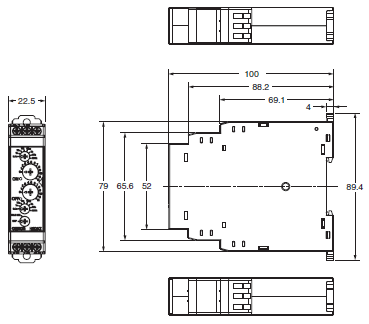

H3DKZ-F

H3DKZ Dimensions 3

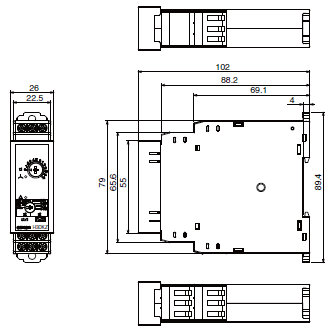

H3DKZ-G

H3DKZ Dimensions 4

H3DKZ-GE

H3DKZ Dimensions 5

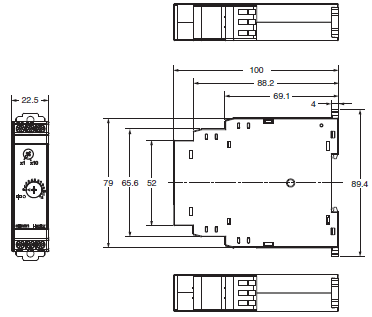

H3DKZ-H

H3DKZ Dimensions 6

Track Mounting Products (Sold Separately)

DIN Track
PFP-100N
PFP-50N

H3DKZ Dimensions 8

DIN Track
PFP-100N2

H3DKZ Dimensions 9

End Plate
PFP-M

H3DKZ Dimensions 10

Spacer
PFP-S

H3DKZ Dimensions 11

Note 1: Order the above products in multiples of 10.
Note 2: The Tracks conform to DIN standards.

last update: April 1, 2019
