61F-WL

Water Leak Detector

61F-WL

Set Sensitivity Freely to Suit the Liquid to Detect

(Unit: mm)

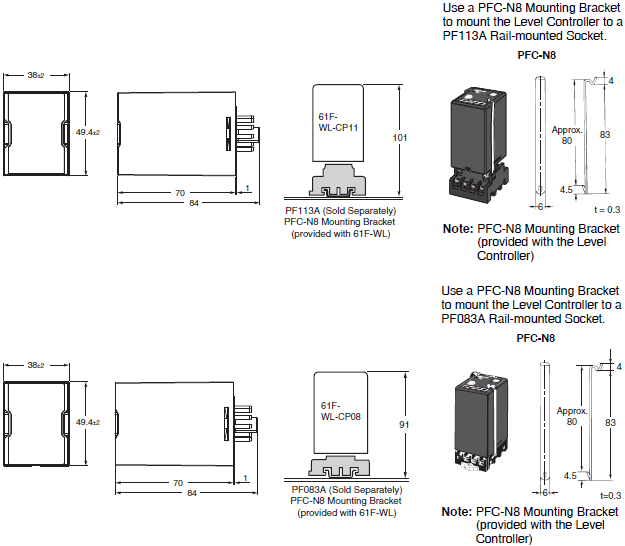

Water Leak Detector

61F-WL-CP

61F-WL Dimensions 2

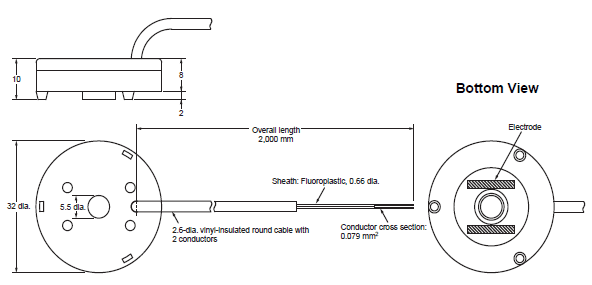

Liquid Leakage Point Sensor

F03-16PS,F03-16PS-F

61F-WL Dimensions 4

Note: Operation may not be possible with small amounts of liquid.

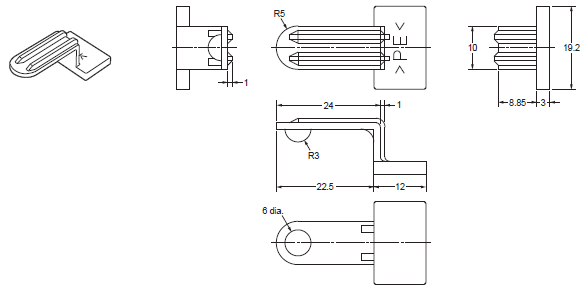

Point Sensor Mounting Bracket

F03-26PS

61F-WL Dimensions 6

* Secure the Sockets with M3 screws at a torque of 0.78 to 1.18 N·m.
