G2RV-ST

(Unit: mm)

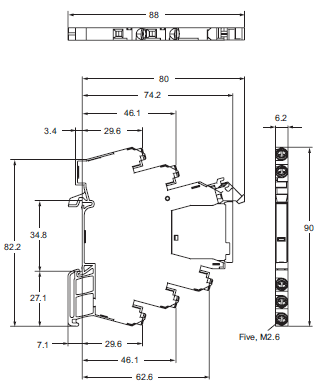

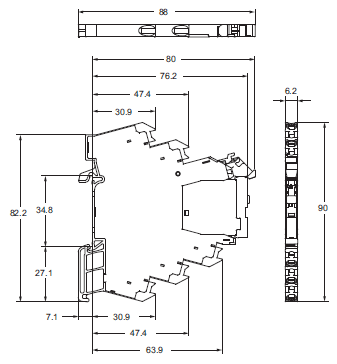

Models without latching lever (without test switch)
G2RV-ST500
G2RV-ST500-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Models with latching lever (with test switch)
G2RV-ST501

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

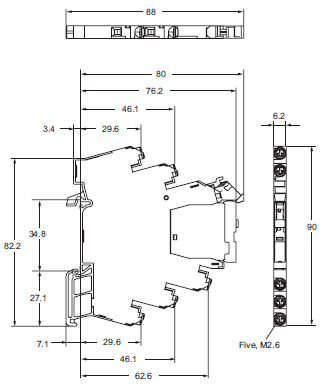

Models without latching lever (without test switch)
G2RV-ST700
G2RV-ST700-AP

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

Models with latching lever (with test switch)
G2RV-ST701

Note: For recommended ferrules, crimp tools, and types and gauges of wires, refer to 3. Recommended Ferrules and Crimp Tools on Data Sheet.

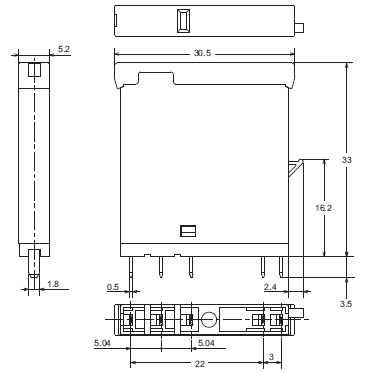

Models without latching lever
G2RV-1-S-G
G2RV-1-S-AP-G

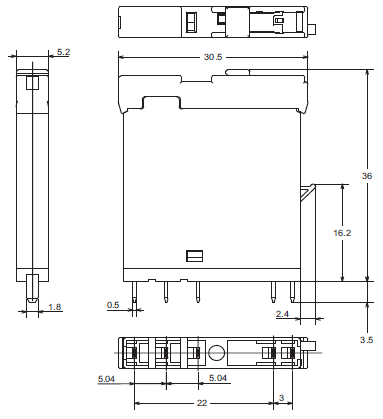

Models with latching lever (test switch)
G2RV-1-SI-G

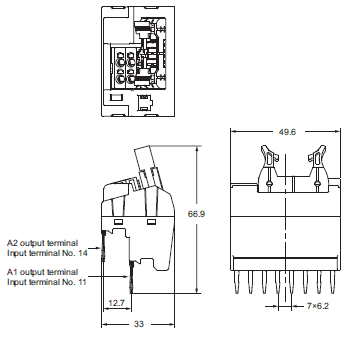

Push-IN
P2RVC-8ST-I-5(-1)
P2RVC-8ST-O-5(-1)

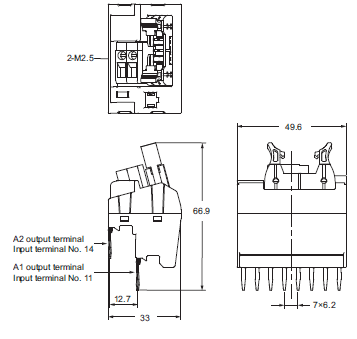

Screw
P2RVC-8ST-I-7-1
P2RVC-8ST-O-7-1

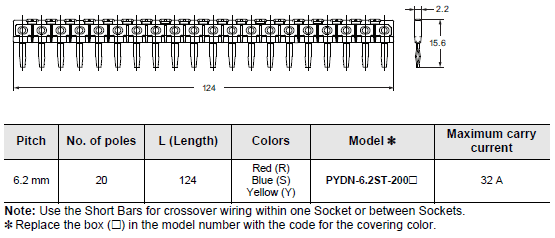

PYDN-6.2ST-200[]

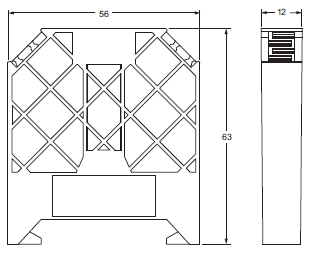

XW5Z-EP12

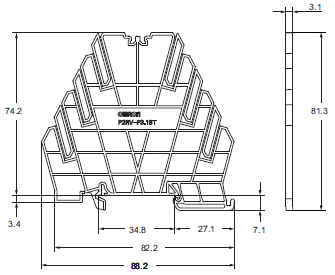

P2RV-P3.1ST

Refer to your OMRON website for details on the PFP-[].
