R87F / R87T

AC Axial Fans

R87F / R87T

Optimum Cooling with a Comprehensive Lineup of Axial Fans

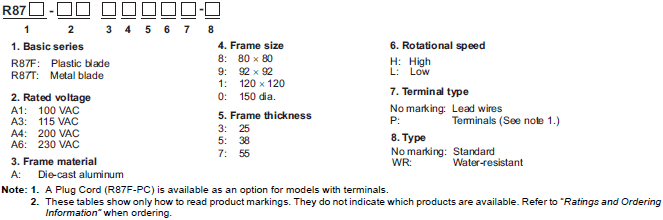

Model Number Structure

Model Number Legend

R87F / R87T Lineup 2

Ordering Information

Available Models

AC Axial Fans

Series Size (mm) Model
R87F
(plastic blades)
80 × 80 × t25 R87F-A[]A83
80 × 80 × t38 R87F-A[]A85
92 × 92 × t25 R87F-A[]A93
120 × 120 × t25 R87F-A[]A13
120 × 120 × t38 R87F-A[]A15
R87T
(metal blades)
80 × 80 × t25 R87T-A[]A83
80 × 80 × t38 R87T-A[]A85
120 × 120 × t38 R87T-A[]A15
150-dia. × t38 R87T-A[]A05
150-dia. × t55 R87T-A[]A07
120 × 120 × t38 R87T-A[]A15H-WR

Options (Order Separately)

Product name Model
Plug Cord R87F-PC
Finger Guard R87F-FG[]
Filter R87F-FL[](S)
Set model R87F-SET[][][][]

Note: Mounting screws are not attached to Finger Guard. Order the Set model when the screws are needed.

R87F-A[]A83 AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87F-A1A83H
R87F-A3A83H
R87F-A4A83H
R87F-A6A83H
100 VAC
115 VAC
200 VAC
230 VAC
0.097
0.085
0.048
0.046
0.080
0.070
0.041
0.039
7 6 2,600 3,000 0.6 0.7 39.2 53.9 32 36
R87F-A1A83L
R87F-A3A83L
R87F-A4A83L
R87F-A6A83L
100 VAC
115 VAC
200 VAC
230 VAC
0.063
0.055
0.033
0.028
0.055
0.048
0.030
0.024
5 4 1,900 2,100 0.4 0.5 19.5 23.5 28 30

R87F-A[]A85 AC Axial Fans with Terminals (80 × 80 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87F-A1A85HP
R87F-A3A85HP
R87F-A4A85HP
R87F-A6A85HP
100 VAC
115 VAC
200 VAC
230 VAC
0.140
0.120
0.080
0.060
0.115
0.100
0.060
0.050
10 9 2,700 3,200 0.8 0.9 42.1 58.8 32 36
R87F-A1A85LP
R87F-A3A85LP
R87F-A4A85LP
R87F-A6A85LP
100 VAC
115 VAC
200 VAC
230 VAC
0.090
0.080
0.050
0.040
0.080
0.070
0.040
0.040
7 6 2,200 2,500 0.6 0.7 25.0 32.0 26 29

R87F-A[]A93 AC Axial Fans with Terminals (92 × 92 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87F-A1A93HP
R87F-A3A93HP
R87F-A4A93HP
R87F-A6A93HP
100 VAC
115 VAC
200 VAC
230 VAC
0.150
0.125
0.070
0.055
0.130
0.100
0.060
0.050
13 11 2,550 3,050 0.9 1.0 49.0 68.6 33 36
R87F-A1A93LP
R87F-A3A93LP
R87F-A4A93LP
R87F-A6A93LP
100 VAC
115 VAC
200 VAC
230 VAC
0.100
0.090
0.050
0.045
0.085
0.075
0.043
0.040
7 6 1,900 2,200 0.7 0.8 24.5 34.3 29 32

R87F-A[]A13 AC Axial Fans with Terminals (120 × 120 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87F-A1A13HP
R87F-A3A13HP
R87F-A4A13HP
R87F-A6A13HP
100 VAC
115 VAC
200 VAC
230 VAC
0.180
0.160
0.090
0.080
0.150
0.130
0.075
0.070
14 12 2,400 2,800 1.9 2.2 44 42 39 43
R87F-A1A13LP
R87F-A3A13LP
R87F-A4A13LP
R87F-A6A13LP
100 VAC
115 VAC
200 VAC
230 VAC
0.140
0.130
0.080
0.060
0.120
0.110
0.060
0.050
12 10 1,700 2,000 1.3 1.5 20 24 32 34

R87F-A[]A15 AC Axial Fans with Terminals (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87F-A1A15HP
R87F-A3A15HP
R87F-A4A15HP
R87F-A6A15HP
100 VAC
115 VAC
200 VAC
230 VAC
0.230
0.190
0.110
0.090
0.200
0.170
0.100
0.080
15 14 2,750 3,200 2.7 3.1 93 80 42 46
R87F-A1A15LP
R87F-A3A15LP
R87F-A4A15LP
R87F-A6A15LP
100 VAC
115 VAC
200 VAC
230 VAC
0.170
0.140
0.080
0.070
0.150
0.120
0.070
0.060
11 10 2,100 2,250 2.0 2.1 44 44 36 38

R87T-A[]A83 AC Axial Fans with Lead Wires (80 × 80 × t25 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A83H
R87T-A3A83H
R87T-A4A83H
R87T-A6A83H
100 VAC
115 VAC
200 VAC
230 VAC
0.180
0.150
0.087
0.075
0.150
0.130
0.075
0.065
12 11 2,500 3,000 0.5 0.6 34.0 49.0 33 36

R87T-A[]A85 AC Axial Fans with Lead Wires (80 × 80 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A85H
R87T-A3A85H
R87T-A4A85H
R87T-A6A85H
100 VAC
115 VAC
200 VAC
230 VAC
0.180
0.155
0.085
0.080
0.160
0.135
0.075
0.070
12 10 2,800 3,300 0.80 0.90 42 58 37 40

R87T-A[]A15 AC Axial Fans with Terminals (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A15HP
R87T-A3A15HP
R87T-A4A15HP
R87T-A6A15HP
100 VAC
115 VAC
200 VAC
230 VAC
0.240
0.210
0.120
0.110
0.210
0.180
0.110
0.090
17 16 2,700 3,100 2.6 2.9 80 62 42 46

R87T-A[]A05 AC Axial Fans with Lead Wires (150-dia. × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A05H
R87T-A3A05H
R87T-A4A05H
R87T-A6A05H
100 VAC
115 VAC
200 VAC
230 VAC
0.550
0.470
0.260
0.220
0.460
0.390
0.220
0.190
50 48 2,650 3,100 4.8 5.7 104 107 56 58

R87T-A[]A07 AC Axial Fans with Lead Wires (150-dia. × t55 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A07H
R87T-A3A07H
R87T-A4A07H
R87T-A6A07H
100 VAC
115 VAC
200 VAC
230 VAC
0.480
0.420
0.240
0.210
0.420
0.370
0.210
0.190
43 40 2,800 3,250 5.0 5.8 118 88 52 56

R87T-A[]A15H-WR Water-resistant AC Axial Fans with Lead Wires (120 × 120 × t38 mm)

Note: An asterisk (*) indicates a nominal value.
Permitted voltage fluctuation range (%): 85% to 110% rated voltage
Frequency (Hz): 50/60

Model Rated
voltage
(V)
Rated
current
(A) *
Rated
input
(W) *
Rated
rotational
speed
(r/min) *
Maximum
flow rate
(m3/min) *
Maximum
static
pressure
(Pa) *
Noise
(dB) *
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
50
Hz
60
Hz
R87T-A1A15H-WR
R87T-A3A15H-WR
R87T-A4A15H-WR
R87T-A6A15H-WR
100 VAC
115 VAC
200 VAC
0.350
0.300
0.170
0.145
0.280
0.240
0.135
0.115
22 20 2,550 2,900 2.7 3.2 75.0 80.0 42 46
200 to 230 VAC 15 to 22

Accessories (Order Separately)

R87F-PC Plug Cord

Cord length Model number Weight (g)
1 m R87F-PC 39
2 m R87F-PC-20 69

R87F-FG Finger Guards

Available Models

Size Model number Weight (g)
150 dia. R87F-FG150 Approx. 58
120 × 120 R87F-FG120 Approx. 45
92 × 92 R87F-FG90 Approx. 25
80 × 80 R87F-FG80 Approx. 20

Applicable Axial Fans

Axial Fans Set model
Model Contents
Finger Guard Hexagonal nuts Screws
size Qty Model size Qty size Qty
R87F-A[]A83 R87F-SET8025 80 x 80 1 R87F-FG80 M4 4 M4 x L38 4
R87T-A[]A83
R87F-A[]A85 R87F-SET8038 80 x 80 1 R87F-FG80 M4 4 M4 x L50 4
R87T-A[]A85
R87F-A[]A93 R87F-SET9025 92 x 92 1 R87F-FG90 M4 3 M4 x L38 3
M3 1 M3 x L38 1
R87F-A[]A13 R87F-SET1225 120 x 120 1 R87F-FG120 M4 4 M4 x L38 4
R87F-A[]A15 R87F-SET1238 120 x 120 1 R87F-FG120 M4 4 M4 x L50 4
R87T-A[]A15
R87T-A[]A15H-WR
R87T-A[]A05 R87F-SET1538 150 dia. 1 R87F-FG150 M4 2 M4 x L50 2
R87T-A[]A07 R87F-SET1555 150 dia. 1 R87F-FG150 M4 2 M4 x L70 2

Note: Finger Guards reduce the flow rate by approximately 2% to 5%.

R87F-FL Filters

Available Models

Filter

Size Model number Weight (g)
120 × 120 R87F-FL120 Approx. 43
92 × 92 R87F-FL90 Approx. 30
80 × 80 R87F-FL80 Approx. 21
120 × 120 R87F-FL120S Approx. 19

Note: The filter contains one medium.

Media

Size Model number
120 × 120 R87F-FL120-M120
92 × 92 R87F-FL90-M90
80 × 80 R87F-FL80-M80

Note: Use the following model number to order the Media only.
           R87F-FL[]-M[] ([]: 120, 90, or 80)
           (One set containing five Media, weight: 5 g max.)

Applicable Axial Fans

AC Axial Fan Filter
Size Model Plastic Aluminum
150 dia. R87T-A[]A0 Series --- ---
120 × 120 R89F-DS1225[] series R87F-FL120 R87F-FL120S
R89F-DS1238[] series
R89F-MS1238HP
R87F-A[]A1 Series
R87T-A[]A1 Series
92 × 92 R87F-A[]A9 Series R87F-FL90 ---
80 × 80 R87F-A[]A8 Series
R87T-A[]A8 Series
R87F-FL80 ---

Note: Filters reduce the flow rate by approximately 20% to 40%.
         Ensure that there is no clogging.
