J7MC Series

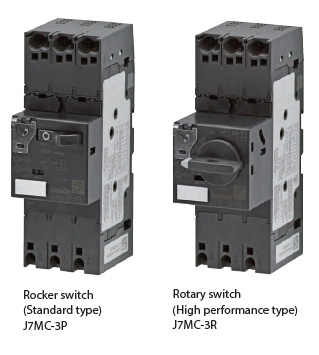

Manual Motor Starter (Motor Protection Circuit Breaker)

J7MC Series

MPCB system, protection from Overload, Phase failure and Short Circuit

New Value For Control Panels

Control Panels: The Heart of Manufacturing Sites.
Evolution in control panels results in large evolution in production facilities.
And if control panel design, control panel manufacturing processes, and human interaction with them are innovated, control panel manufacturing becomes simpler and takes a leap forward.
OMRON will continue to achieve a control panel evolution and process innovation through many undertakings starting with the shared Value Design for Panel *1 concept for the specifications of products used in control panels.

*1 Value Design for Panel

J7MC Series Features 3

Our shared Value Design for Panel (herein after referred to as "Value Design") concept for the specifications of products used in control panels will create new value to our customer’s control panels.
Combining multiple products that share the Value Design concept will further increase the value provided to control panels.

Finally Low Voltage Switching Gears joining into the OMRON’s Panel Solution portfolio

A wide product lineup of Control Panel Solution that cover even motor control contributes to TCO*1 reduction in control panel manufacturing.

J7MC Series Features 5

*1. TCO: Total Cost of Ownership. Total cost from control panel design / production to operation / maintenance.

Main Features of Value Design

J7MC Series Features 6

To further improve control panels with newly added Low Voltage Switch Gears for motor control

MMS is mainly used to Motor Breaker Application and provide protection from short-circuit, overload and phase failures.

J7MC Series Features 8

High tripping capacity

Shutting off the large current at short-circuit accidents.

J7MC Series Features 9

Conform to Main Safety Standards

J7MC Series Features 10

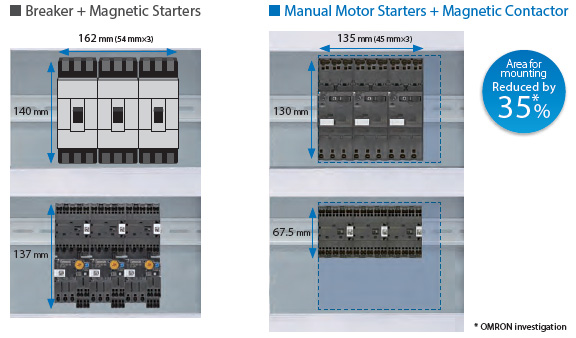

Space-saving design helps downsize control panels.

J7MC Series Features 11

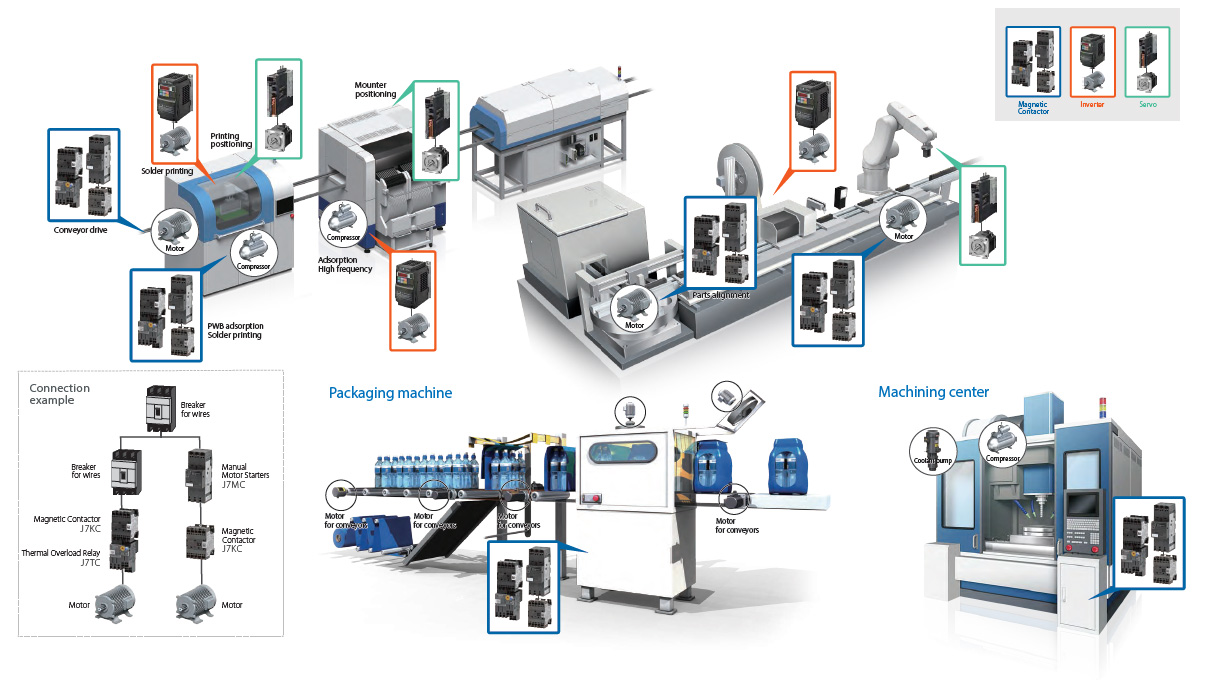

Total solution for motor applications

New lineup of ON/OFF controllable Low Voltage Switching Gears supports total motor application, in addition to inverters and servos

PCB assembly production line

J7MC Series Features 13
